Selecting a piezoelectric ceramic is rarely a plug-and-play decision. Engineers face a critical challenge when designing acoustic devices. Choosing the wrong PZT formulation leads to thermal degradation, premature depolarization, or insufficient signal bandwidth in the final device. You must constantly balance drive power, mechanical quality factor, and sensitivity. An optimal choice requires evaluating these constraints against your specific operational environment. Using generic materials instead of matching them to your transducer application guarantees system failure.
Our objective is to provide a strictly empirical, specification-driven framework for evaluating these piezoceramic formulations. We will move beyond basic categorizations to address actual deployment realities. Read on to master how to confidently evaluate properties, handle thermal ceilings, and match geometries to your core engineering application.
PZT-4 (Navy Type I): The standard "hard" material baseline; optimal for high-power, continuous-wave transmission like ultrasonic cleaning and sonar.
PZT-5 (Navy Type II/VI): The premier "soft" material; prioritizes extreme sensitivity and large displacements, strictly suited for low-power receiving, sensing, and precision actuation.
PZT-8 (Navy Type III): The ultra-hard alternative; delivers the highest mechanical Q and lowest dielectric loss under severe drive conditions, mandatory for medical ultrasonics and heavy-duty welding.
Form Factor Dependency: Material performance is inextricably linked to geometry; specifications will shift whether deployed as Piezo Rings in bolted Langevin transducers or Piezo Plates and Blocks in phased arrays.
We classify piezoceramics into two fundamental functional categories based on domain wall mobility. You must understand this transmission versus reception divide before making any material selection. Transmitters require "hard" materials to handle high electrical voltages without overheating. Receivers and sensors require "soft" materials to convert minute mechanical stresses into easily measurable electrical signals.
High-power applications inherently generate internal heat. This heat stems from dielectric and mechanical losses occurring during high-frequency oscillation. Using a soft material in a high-power application guarantees catastrophic failure. Soft piezoceramics possess highly mobile domain walls. When you drive them with high voltage, this internal friction creates a massive thermal runaway loop. The material quickly exceeds its safe operating temperature and loses its polarization entirely.
To achieve a successful material match, we must define strict success criteria. A properly specified piezoelectric element should demonstrate:
Stable electrical impedance over long duty cycles.
Adequate signal bandwidth for the intended acoustic pulse.
Survival at sustained operational temperatures without permanent property degradation.
Sufficient mechanical durability under high-amplitude vibration.
Industry standards, originally derived from the US Navy (MIL-STD-1376B), classify piezoceramics into specific types. Understanding these profiles helps you avoid costly prototyping mistakes.
We categorize PZT-4 as a standard hard piezoceramic, officially designated as Navy Type I. It serves as the baseline for most heavy-duty acoustic pushing applications. Engineers rely on it because it balances power handling with reasonable manufacturing costs.
Strengths: It offers high resistance to depolarization under intense alternating electric fields. It provides excellent electromechanical coupling factors alongside low dielectric loss.
Standard Applications: You will find it in high-power ultrasonic cleaners, underwater sonar transmitters, and industrial atomizers.
Limitations: It exhibits lower sensitivity compared to soft materials. Furthermore, it shows slightly higher internal heating than ultra-hard alternatives when pushed to maximum drive levels.
PZT-5 represents the premier soft piezoceramic category. We typically divide it into 5A (Navy Type II) and 5H (Navy Type VI). It excels at listening and fine positioning rather than aggressive pushing.
Strengths: It delivers exceptional piezoelectric constants. It features high permittivity and undergoes polarization easily at much lower voltages.

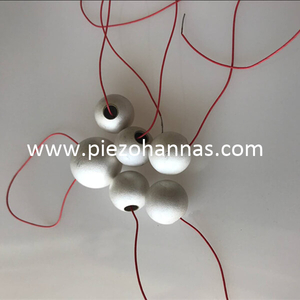

Standard Applications: It dominates non-destructive testing (NDT) probes, medical diagnostic ultrasound imaging, micro-actuators, and sensitive hydrophones.
Limitations: It suffers from a notoriously high dielectric dissipation factor. It remains highly susceptible to thermal depolarization and proves completely unsuitable for continuous high-voltage drive.
PZT-8 functions as the ultimate ultra-hard piezoceramic, classified as Navy Type III. When standard hard materials overheat, you must upgrade to this formulation. It handles brutal operating environments.
Strengths: It boasts an exceptionally high mechanical quality factor. It delivers the lowest dielectric loss under high-drive conditions and maintains a highly stable dielectric constant.
Standard Applications: Engineers mandate its use in ultrasonic plastic welding, semiconductor wire bonding, and high-intensity focused ultrasound (HIFU) therapies.
Limitations: It ranks as the hardest material to pole during manufacturing. It presents the lowest baseline sensitivity of the three options. It also requires much tighter manufacturing controls.
A direct evaluation of PZT-4 vs PZT-5 vs PZT-8 reveals stark operational differences. You cannot interchange these materials and expect comparable acoustic performance. The table below summarizes the critical baseline properties.
Parameter | PZT-5A (Soft) | PZT-4 (Hard) | PZT-8 (Ultra-Hard) |
|---|---|---|---|
Mechanical Quality Factor ($Q_m$) | Low (~70 - 100) | High (~500 - 800) | Very High (> 1000) |
Dielectric Dissipation ($tan \delta$) | High (~0.015 - 0.020) | Low (~0.004) | Minimal (~0.003 - 0.004) |
Curie Temperature ($T_c$) | ~350 °C | ~320 - 330 °C | ~300 - 320 °C |
Piezo Charge Constant ($d_{33}$) | High (~390 - 450 pC/N) | Moderate (~280 - 300 pC/N) | Low (~210 - 230 pC/N) |
The Mechanical Quality Factor directly dictates resonance sharpness. You should contrast the low rating of the soft type against the high ratings of the hard types. A low rating yields high acoustic bandwidth. This makes it excellent for resolving short, distinct pulses in imaging. Conversely, a high rating ensures sharp resonance. This makes hard materials ideal for efficient, continuous wave generation.
The Dielectric Dissipation Factor dictates internal heat generation. It acts as a friction coefficient for alternating fields. We see high losses in soft formulations, causing them to melt or depole under continuous load. Hard types exhibit negligible losses even at extreme voltage amplitudes.
Curie Temperature defines the absolute thermal ceilings. If your ceramic exceeds this threshold, it permanently loses its polarized state. While all three materials show high limits on paper, practical safe operating temperatures typically max out at half the Curie point. Hard formulations survive much closer to their limits due to lower internal self-heating.
The Piezoelectric Charge Constant measures displacement per volt. Soft formulations demonstrate massive superiority here. They stretch and contract much further than hard materials for every volt applied. This justifies their exclusive use in nanopositioning actuators and fine microscopy stages.
Material performance intertwines intimately with physical geometry. The exact shape of the ceramic dictates how acoustic waves propagate and how stress concentrates within the crystal lattice.
Many high-power devices rely heavily on Piezo Rings. Manufacturers predominantly fabricate these from ultra-hard formulations. Engineers stack these elements into pre-stressed, bolted Langevin transducers. These robust assemblies drive industrial plastic welders and heavy-duty ultrasonic cleaning tanks. The ring geometry allows a central bolt to pass directly through the ceramic stack. This bolt applies massive static compression. This compression prevents the ceramic from entering a state of tensile stress during aggressive vibration phases.

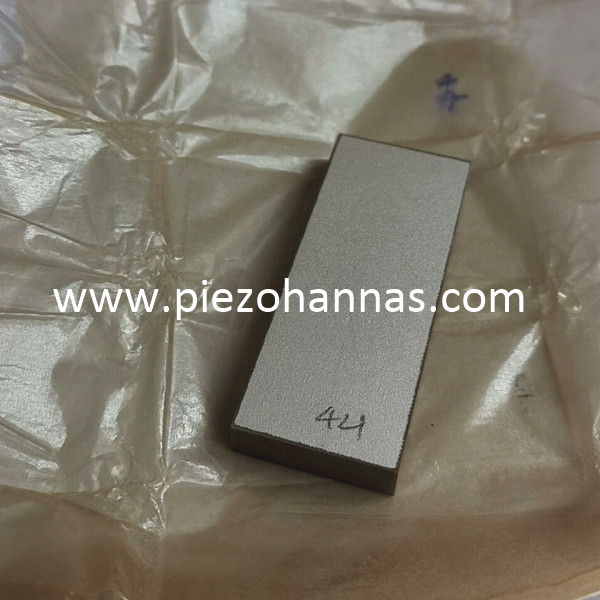

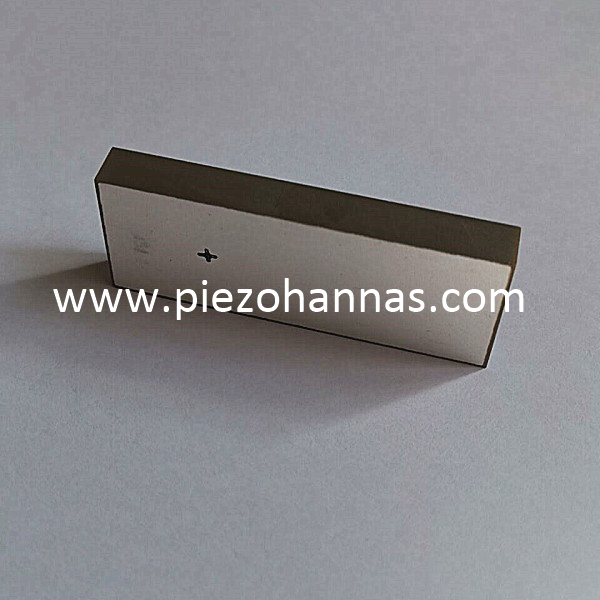

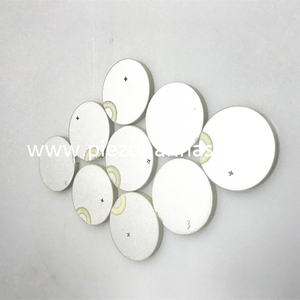

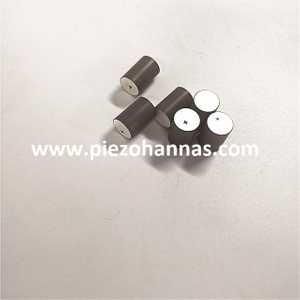

Conversely, diagnostic and non-destructive testing applications heavily utilize Piezo Plates and Blocks. Medical imaging devices often use soft plates diced into hundreds of microscopic pillars to form phased arrays. These arrays steer acoustic beams electronically to create detailed ultrasound images. Occasionally, engineers employ hard material blocks for specialized shear-mode applications or thick-section sonar transmitting arrays.
You must also consider dimensional tolerances during the design phase. Material hardness affects final machining limits. Soft ceramics dice relatively easily but may suffer from structural fragility in thin cross-sections. Hard materials resist fracture better but pose distinct challenges regarding edge chipping during high-precision grinding. You must align your geometric tolerances with the inherent brittleness of your selected compound.
Prototyping often exposes hidden flaws in theoretical acoustic designs. We routinely see engineers make dangerous assumptions regarding static material data.
You must actively guard against the assumption of linearity. Never assume manufacturer baseline data holds true under high-drive, real-world conditions. Suppliers measure standard specifications using minuscule, small-signal inputs. Once you apply hundreds of volts, properties shift dynamically. Capacitance increases, resonant frequency drops, and mechanical losses climb. You must characterize your parts under actual load to prevent system detuning.
Pre-stressing hard materials remains an absolute necessity. Piezoceramics exhibit high compressive strength but incredibly weak tensile strength. If you vibrate a high-power ceramic vigorously without clamping it, the ensuing tensile forces will literally tear the crystal lattice apart. You must apply mechanical pre-compression to hard assemblies. This shifts the operational dynamic range entirely into the compressive regime.
Finally, vendor batch consistency poses a severe risk. You risk massive lot-to-lot variance if you rely on generic sourcing. Crystal grain size, precise doping amounts, and sintering temperatures vary wildly between unverified factories. You must strictly verify that every supplier-provided PZT Material Parameter meets your tight quality assurance tolerances before you scale up final production.
Selecting the correct piezoceramic formulation dictates the success or failure of your acoustic device. Follow a strict shortlisting logic. Choose soft formulations for sensing, listening, or sub-micron moving. Select standard hard formulations for conventional high-power pushing and transmitting tasks. Upgrade to ultra-hard formulations only when pushing maximum power and thermal limits become your primary operational bottleneck.
For your next steps, we encourage you to immediately request detailed material data sheets from qualified vendors. Consult closely with application engineers regarding specific pre-stress requirements for your mechanical housing. Order small-batch samples and conduct rigorous impedance analyzer testing under actual operating temperatures and voltages to validate your design.
A: You generally cannot. Ultrasonic welders run under continuous, severe drive conditions. The Navy Type I formulation exhibits higher internal friction than Navy Type III. If you make this substitution, the ceramic will rapidly overheat. This thermal runaway causes frequency shifts, system detuning, and eventual depolarization. The ultra-hard alternative's lower dielectric loss remains mandatory for continuous welding.
A: Soft ceramics possess incredibly high dissipation factors and mobile domain walls. When you expose them to the high continuous voltages required for cleaning tanks, they generate excessive internal heat. Because they cannot dissipate this heat efficiently, they quickly exceed their safe thermal ceiling. This guarantees rapid thermal depolarization and total failure.
A: Temperature alters nearly every property. Capacitance, resonant frequency, and displacement change as temperatures fluctuate due to known temperature coefficients. These are temporary shifts; properties return to baseline upon cooling. However, if the operating temperature approaches the material's Curie limit, the crystal lattice undergoes permanent phase changes, resulting in irreversible depolarization.
A: Yes, rings provide superior structural advantages for high-power pushing. The hollow center allows you to pass a high-tensile steel bolt through the entire transducer stack. This bolt applies essential mechanical pre-compression, preventing tensile fracture during operation. Additionally, the ring geometry aids in better thermal dissipation and generates highly uniform acoustic longitudinal waves.
