PZ1000K00
Piezohannas
PZ1000K00

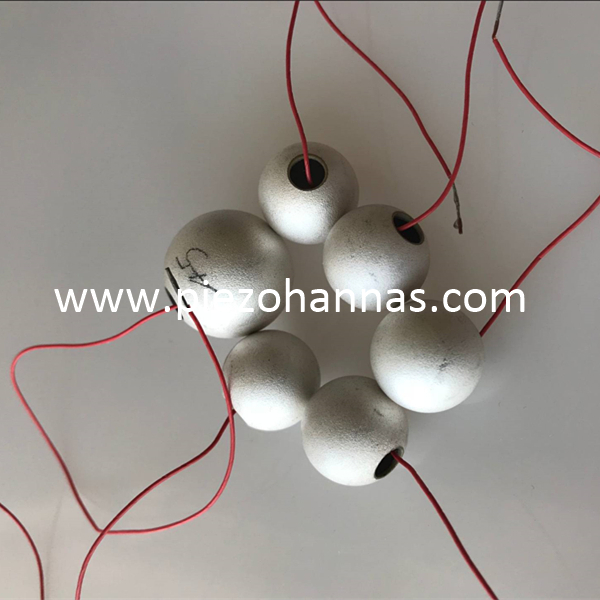

Custom PZT5A Pzt Ceramic Spheres for Underwater Acoustic
Piezo Hannas develops and manufactures piezo ceramics.With a superior experienced team of scientists, designers, engineers and technicians as well as a vertically integrated business model,we develop ultrasonic transducers for a diverse range of applications, including air-ranging industrial transducers, and depth transducers, flow meter transducer and our extensive line of underwater acoustics transducers. Piezo Hannas has the capability of fabricating innovative and cost-effective products.
.
Piezo ceramic Description:
Geometry | Size (mm) | Tolerance |
Piezo Discs | Diameter: 3 to 200 |
Tolerance according to the piezoelectric elements Industrial standard. |
Thickness: 0.2-25 | ||
Piezo Tubes | Length: 1-100 | |
OD: 6-180 | ||
ID: 5-150 | ||
Wall: 0.5-15 | ||
Piezo Plates | Length: 1-200 | |
Width: 1-200 | ||
Thickness: 0.2-25 | ||
Piezo Sphere | OD: 6-160 | |
ID: 4-150 | ||
Wall: 1-10 | ||
Piezo Rings | OD: 3-180 | |
ID: 1-150 | ||
Thickness : 0.2-25 | ||
For All Sizes | Flatness | ± 0.03 |
Concentricity | ± 0.10 | |
Perpendicularity | ± 0.10 | |
Parallelism | ± 0.05 |
About piezoelectric ceramics material , what's the equivalent ceramic materials?
PZT Material Supplier | Navy Type I (PZT-4) | Navy Type II (PZT-5A) | Navy Type VI (PZT-5H) | Navy Type III (PZT-8) |
Piezo Hannas | P-41 | P-51 | P-5H | P-82 |
Morgan Matroc | PZT-4 | PZT-5A | PZT-5H | PZT-8 |
Channel Ind. | C5400 | C5500 | C5700 | C5800 |
EDO Corp. | EC-64 | EC-65 | EC-76 | EC-69 |
Keramos | K-270 | K-350 | K-278 | |
Transducer Products | LTZ-1 | LTZ-2 | LTZ-2H | |
Staveley Sensors | EBL1 | EBL2 | EBL3 | EBL4 |
What are the underwater acoustic application fields of piezoelectric ceramics?
Seabed exploration, sonar, hydorphone, underwater transducer,NDT,beacon, imaging, galvanometer....
About piezoelectric ceramic transducer, which is the effect of using piezoelectric ceramics?
About piezoelectric ceramic transducers, which utilize the two major effects of piezoelectric ceramics, in particular, the transducers use the inverse piezoelectric effect when they emit, and they utilize positive piezoelectric effect when is receiving ,In turn, let this kind of transducer work and use normally.
Why do you choose our piezo ceramics:
1.Highly demanding and high sensitivity quality .
2.Large stocks and fast delivery.
3. Owning much experienced team of scientists, designers, engineers and technicians
We can accept the drawing customization
3.Stable performances and low unqualified rate for batch orders
4. Cost-effective alternative for other famous brand
5. After -sevice and Technical support
