Stock Pzt4 Material OD31*ID25*28 Piezo Ceramic Tubes

Share to:

Stock Pzt4 Material OD31ID2528 Piezo Ceramic Tubes

Name: Stock Pzt4 Material OD31*ID25*28 Piezo Ceramic Tubes
Brand: Piezohannas
Rating: 5.0 (31 reviews)

Dimensions: OD31*ID25*28mm
Material : Pzt4 Material

Applications：Underwater communications,underwater acoustics, sonar.

Availability:

Quantity:



Inquire Add to Basket

Model:
PT1000K119
Brand:
Piezohannas
Code:
PT1000K119

Product Description

Stock Pzt4 Material OD31*ID25*28 Piezo Ceramic Tubes

WuHan Piezohannas Tech.Co .,Ltd is a manufactuer of piezoelectric ceramics ,ultrasonic transducers and some other ultrasonic deivce with strong technology force.With a quality management system and research & development sector,our products are extensively used in most applications.

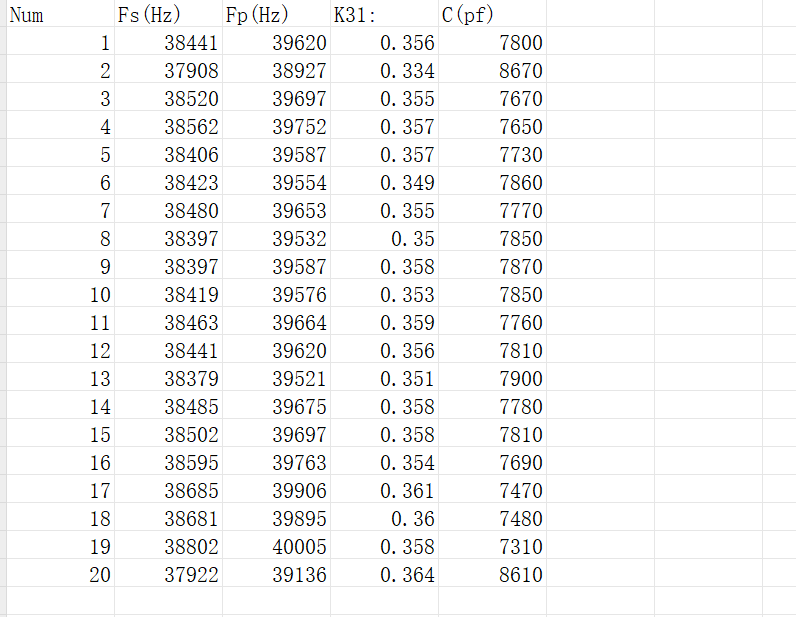

Piezo Ceramics Tube Description:

Dimensions: OD31*ID25*28mm

Material : Pzt4 Material

Fs(Hz):38441

Fp(Hz):39620

Electromechanical coupling coefficient K31: 0.356

Dielectric Loss tg δ: <2.00

Static capacitance Cs: 7800pF

Standard Size of Piezo Tube:

Diameter: 5.0 - 100mm
Wall thickness: 1 - 10mm
Height: 2.5 - 50mm

PZT ceramics tube OD31*ID25*28 piezo tubes piezo ceramic tubes pzt4 material piezo cylinder pzt4 piezo ceramic tubes stock piezo ceramic cylinder stock piezoelectric cylinder piezoelectric tube for hydrophone transducer pzt4 material piezoceramic cylinder pzt4 material pzt ceramics

Hubei Hannas Tech Co.,Ltd is a professional piezoelectric ceramics and ultrasonic transducer manufacturer, dedicated to ultrasonic technology and industrial applications.
