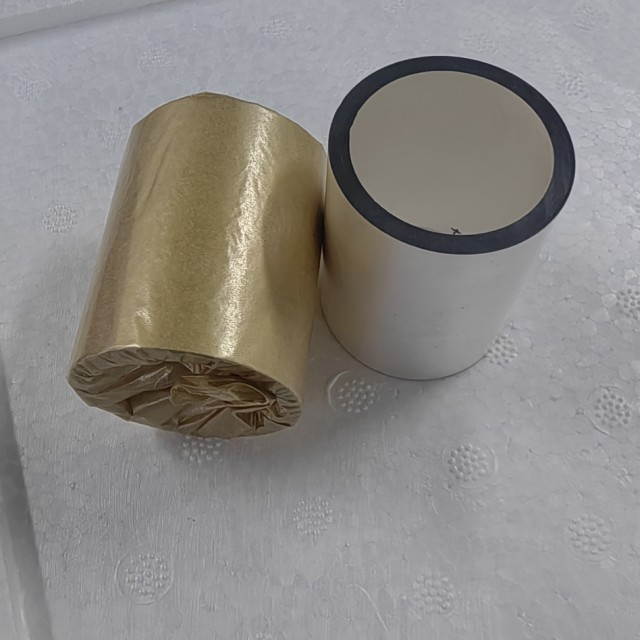

Stock Pzt4 Material OD51*ID41*38 Piezo Ceramic Tubes

Share to:

Stock Pzt4 Material OD51ID4138 Piezo Ceramic Tubes

Name: Stock Pzt4 Material OD51*ID41*38 Piezo Ceramic Tubes
Brand: Piezohannas
Rating: 5.0 (67 reviews)

Dimensions: OD51*ID41*38 mm
Material : Pzt4 Material

Applications：Underwater communications,underwater acoustics, sonar.

Availability:

Quantity:



Inquire Add to Basket

Model:
PT1000K120
Brand:
Piezohannas
Code:
PT1000K120

Product Description

Stock Pzt4 Material OD51*ID41*38 Piezo Ceramic Tubes

WuHan Piezohannas Tech.Co .,Ltd is a manufactuer of piezoelectric ceramics ,ultrasonic transducers and some other ultrasonic deivce with strong technology force.With a quality management system and research & development sector,our products are extensively used in most applications.

Piezo Ceramics Tube Description:

Dimensions: OD51*ID41*38 mm

Material : Pzt4 Material

Fs(Hz):23760

Fp(Hz):24820

Electromechanical coupling coefficient K31: 0.356

Dielectric Loss tg δ: <2.00

Static capacitance Cs: 10150pF

Standard Size of Piezo Tube:

Diameter: 5.0 - 100mm
Wall thickness: 1 - 10mm
Height: 2.5 - 50mm

PZT ceramics tube OD51*ID41*38 piezo tubes piezo ceramic tubes pzt4 material piezo cylinder pzt4 piezo ceramic tubes stock piezo ceramic cylinder stock piezoelectric cylinder OD51*ID41*38 piezoelectric tube pzt4 material piezoceramic cylinder OD51*ID41*38 pzt ceramics

Hubei Hannas Tech Co.,Ltd is a professional piezoelectric ceramics and ultrasonic transducer manufacturer, dedicated to ultrasonic technology and industrial applications.
