PHA-15-50D-FB
Piezohannas
PHA-15-50D-FB

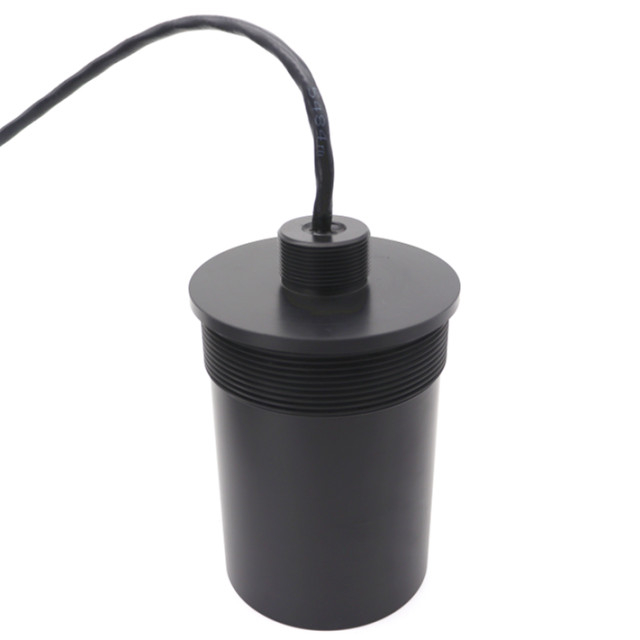

15KHz Explosionproof Ultrasonic Air Transducers for Distance Measurement
Specification:
Items | Technical Parameters | Image | |
Name |
| ||
Model | PHA-15-50D-FB | ||
Frequency | 16KHz±5% | ||
Detection Distance | 1.8～50m | ||
Minimum Parallel lmpedance | 1500Ω±20％ | ||
12000pF±20％ @1KHz | |||
Sensitivity | load driving Voltage：520Vpp，Distance:0.3m、Echo Amplitude:1100mV | ||
-40～+80℃ | |||
≤3Kilos or 0.3MPa | |||
(Beamwidth)Half-power Beam Width@@-3dB：13°±10%； Sharp Angle:30°±10%； | |||
Housing Material | POM | ||
usage | Ultrasonic level gauge, ultrasonic anti-collision, ultrasonic rangefinder | ||
Checking product structure diagram below | |||
Protection Level | IP68 | ||
Weight | 2000g±5％ | ||
Wiring Instructions | Integrated interface (3PIN,2.54mm terminal) : red positive, white negative, black shield wire; Interface (3PIN,2.0mm terminal) : white and black for temperature sensor wire (MF58); | ||

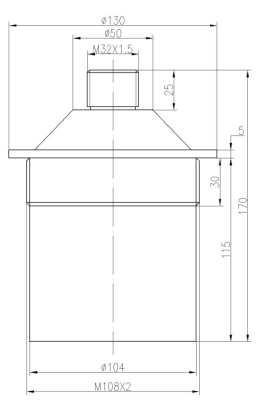

Admittance Curve | Product Structure Diagram | ||
|
| ||
