PD-21-D30D
Piezohannas
PD-15-D50D
Items | Technical Parameters | Image | |

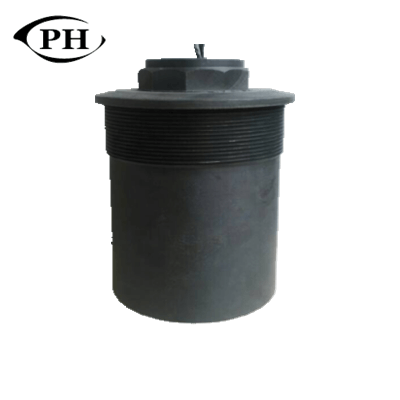

Name | Ultrasonic transducer Type D – Long distance measurement 50 meters (Integrated Type) |  | |
Model | |||
Frequency | 16KHz±1.5KHz | ||
Detection Distance | 1.8～50m | ||
Minimum Parallel lmpedance | 1500Ω±20％ | ||
12000pF±20％ @1KHz | |||
Sensitivity | Driving Voltage：520Vpp，Distance:0.6m， Echo Amplitude:1100mV | ||
-40～+80℃ | |||
≤3Kilos or 0.3MPa | |||
(Beamwidth)Half-power Beam Width @-3dB：12°±2； Sharp Angle：28°±4； | |||
Housing Material | Under the environment of weak acid and weak base（POM） | ||
Usage | Ultrasonic level gauge,Monitoring,Crashproof,Security
| ||
the bottom of screw thread M108×2 | |||
Protection Level | IP68 | ||
Weight | 2000g±5％ | ||
Wiring Instructions | Integrated: Interface（3PIN,2.54mm terminal）：Red:transducer+，White:transducer-,Black: shielded wire Interface（3PIN,2.0mm terminal: Red,Black: temperature sensor Wire（MF58） | ||
Admittance Curve | Product Structure Diagram | ||
|  | ||
Items | Technical Parameters | Image | |
Name | Ultrasonic transducer Type D – Long distance measurement 50 meters (Integrated Type) | | |
Model | |||
Frequency | 16KHz±1.5KHz | ||
Detection Distance | 1.8～50m | ||
Minimum Parallel lmpedance | 1500Ω±20％ | ||
12000pF±20％ @1KHz | |||
Sensitivity | Driving Voltage：520Vpp，Distance:0.6m， Echo Amplitude:1100mV | ||
-40～+80℃ | |||
≤3Kilos or 0.3MPa | |||
(Beamwidth)Half-power Beam Width @-3dB：12°±2； Sharp Angle：28°±4； | |||
Housing Material | Under the environment of weak acid and weak base（POM） | ||
Usage | Ultrasonic level gauge,Monitoring,Crashproof,Security
| ||
the bottom of screw thread M108×2 | |||
Protection Level | IP68 | ||
Weight | 2000g±5％ | ||
Wiring Instructions | Integrated: Interface（3PIN,2.54mm terminal）：Red:transducer+，White:transducer-,Black: shielded wire Interface（3PIN,2.0mm terminal: Red,Black: temperature sensor Wire（MF58） | ||
Admittance Curve | Product Structure Diagram | ||
| | ||
