PHA-100-WO
Piezohannas
PHA-100-WO

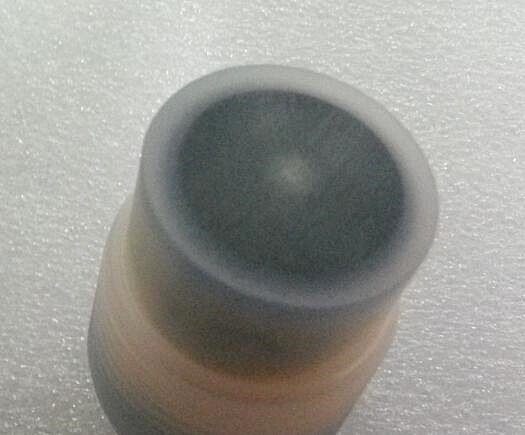

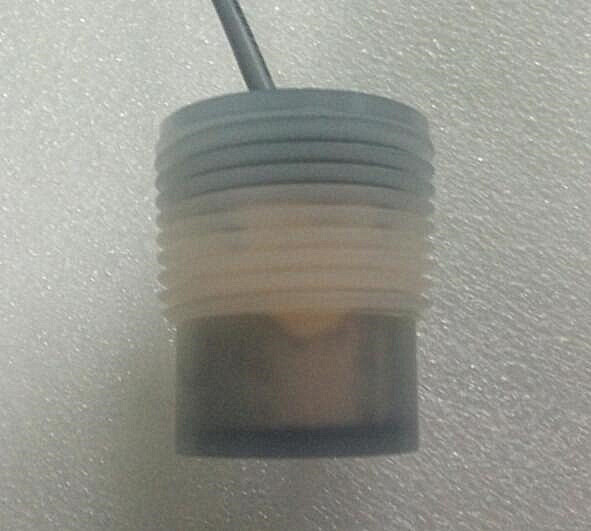

100KHz Ultrasonic Transducer Circuit with Transformer
![P9}Y}O)U(KDYBG]`(2[(UGC](http://5krorwxhlkpmrik.leadongcdn.com/cloud/ipBqnKjlRikSoknqirin/P9-Y-O-U-K.png) ultrasonic distance transducer |  distance measurement transducer |
|
Introduction:
PHA-100-WO ultrasonic sensor has the functions of transmitter and receiver. It’s a long range type, generally can be used for ultrasonic range finder, ultrasonic sensor for non-contact detect objects, ultrasonic distance sensor, ultrasonic liquid level sensor, etc. If you have any questions for other applications, please contact us for details.
Technical parameters：
Items | Technical Parameters | Image | |
Name | 100KHz ultrasonic transducer |
| |
Model | PHA-100-WO | ||
Frequency | 100KHz±5% | ||
Detection Distance | 0.15～2m | ||
Minimum Parallel lmpedance | 320Ω±20％ | ||
760pF±20％ @1KHz | |||
Sensitivity | Withload Driving Voltage：750Vpp，Distance： 0.3m， Echo Amplitude：180 mV | ||
-40～+80℃ | |||
≤3Kilos or 0.3MPa | |||
| (Beamwidth) Half-power Beam Width @-3dB:7.2°±1， Sharp Angle:7.0°±2 | ||
Housing Material | PVDF | ||
Usage | Distance measurement | ||
IP68 | |||
Protection Level | 46g±5％（Length：10cm） | ||
Wiring instruction | Interface：Red: transducer+，White: transducer-, Black: shielded wire，（ temperature sensor is optional） | ||
Admittance Curve | Product Structure Diagram | ||
|
| ||
Transformer：
100KHz Ultrasonic Transducer Circuit with Transformer
