PHA-34-12C
Piezohannas
PHA-34-12C

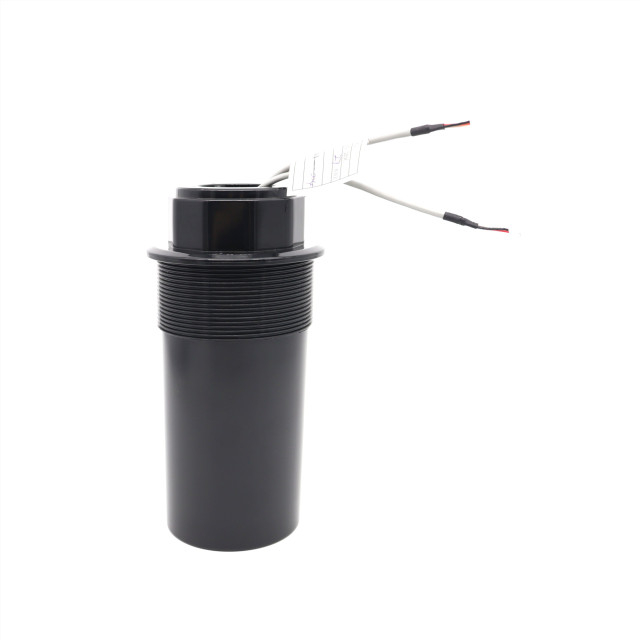

Non-contact Ultrasonic Range Transducer for Level Measurement
Specification:
Items | Technical Parameters | Image | |
Name | 34KHz ultrasonic transducer |
| |
Model | PHA-34-12C | ||
Frequency | 34KHz±5% | ||
Detection Distance | 0.5～12m | ||
Minimum Parallel lmpedance | 600Ω±20％ | ||
7000pF±20％ @1KHz | |||
Sensitivity | load driving voltage：650Vpp，Distance:0.6m、Echo Amplitude:400mV | ||
-40～+80℃ | |||
≤3Kilos or 0.3MPa | |||
(Beamwidth)Half-power Beam Width@-3dB:8°±10%， Sharp Angle:19°±10% | |||
Housing Material | ABS | ||
usage | Ultrasonic level gauge, monitoring, anti - collision, security | ||
Protection Level | IP68 | ||
Weight | 1180g±5％ | ||
Wiring Instructions | Integrated interface (3PIN,2.54mm terminal) : red positive, white negative, black shield wire; Interface (3PIN,2.0mm terminal) : white and black for temperature sensor wire (MF58); | ||

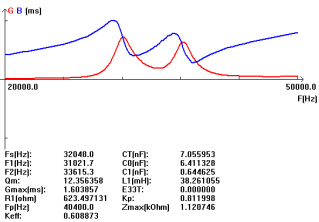

Admittance Curve | Product Structure Diagram | ||
|
| ||
Ultrasonic Level Measurement Application:
Ultrasonic level measurement with ultrasonic sensors provides continuous, non-contact and maintenance-free level measurement of fluids, pastes, sludges and powdery to coarse bulk materials. The measurement is unaffected by dielectric constant, density or humidity and also unaffected by build-up due to the self-cleaning effect of the sensors. Check out the broad range of Prosonic devices for ultrasonic level measurement and click on the button below.
The ultrasonic method is a proved, as well as cost-effective solution for level measurement in liquids and bulk solids. Instruments are available as compact or separate versions. This measuring principle is characterized by easy planning and assembly, fast and safe commissioning, a long service life and reduced maintenance costs. Typical applications include abrasive and aggressive media, even in rough ambient conditions.
