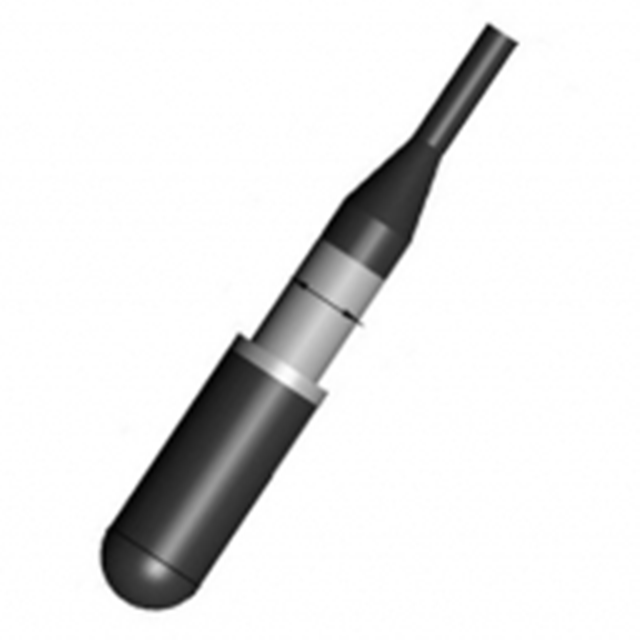

Custom Piezoelectric Cylinderical Hydrophone for Marine Detection
1. Product description
(1) Good directionality. The horizontal hydrophone has no directivity, and the vertical plane has directivity.
(2) Small size, wide frequency range, can be used as a standard hydrophone within 100kHz.
(3) The sensitivity response is flat, suitable for broadband noise testing.
2. Working characteristics
(1) Operating frequency range: 20Hz～200kHz
(2) Linear frequency range: 1kHz～100kHz
(3) Low frequency receiving sensitivity: -217dB
(4) Horizontal directivity: ±1.5dB (50kHz)
(5) Maximum working depth: 300 meters
3. Directivity diagram of typical frequency

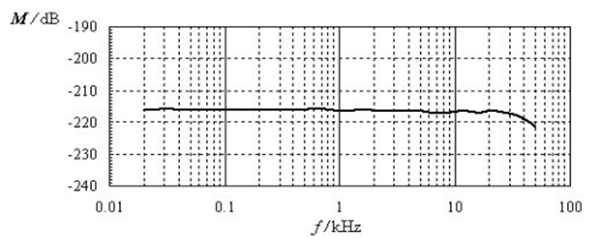

4. sensitivity curve of free-field open circuit voltage
5.the external dimensions and the definition of the core wire at the end of the cable
Definition of the core wire at the end of the cable: red wire-signal +; black wire-signal -; shielded wire-ground wire; the standard length of the cable is 15 meters.
6.Precautions for use and storage:
1. The standard hydrophone is a fragile item, handle it with care during transportation and use, and pay attention to protection;
2. The standard hydrophone should be stored in a ventilated, dry and cool place to avoid rubber aging;
