PH40F03510B
Piezohannas
PH40F03510B
Introduction:
PH40F03510B ultrasonic sensor has the functions of transmitter and receiver. It’s a long range type, generally can be used for ultrasonic range finder, ultrasonic sensor for non-contact detect objects, ultrasonic distance sensor, ultrasonic liquid level sensor, etc. If you have any questions for other applications, please contact us for details.
Technical parameters：
Model | PH40F03510B |
Center resonant frequency (kHz) | 40KHz±2.0Khz |
Bandwidth | 3.0Khz |
Detection distance | 0.35~10m |
Blind spots | <0.35m |
Launch angle beam (-6dB full angle) | 12±2° |
Sensitive | -76dB min |
Electrostatic capacitance | 3000PF±20% |
Minimum parallel impedance | 180Ω±30% |
Maximum working voltage (Pulse - 2% duty cycle) | 1800Vp-p |
Operating temperature | -20 ~70℃ |
Storage temperature | -40 ~85℃ |
Protection level | IP65 |
Size (diameter * height, mm) | Φ62x72 |
Installation | Fixed with screw |
Case Material | PVC |
Cable length | 3 M (can be customized) |
Weight | 800g |
Photo:
![YUQWX]$Z{EZDOADIFCPE13.png](http://5krorwxhlkpmrik.leadongcdn.com/cloud/ikBqnKjlRikSkrjqkjin/YUQWX-Z-EZ.png "YUQWX]$Z{EZDOADIFCPE13.png")

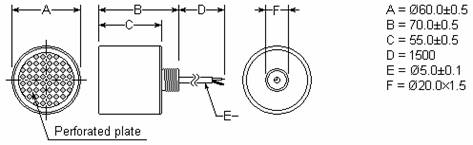

Outline Dimension：
![]1[F)}8}(%T7S6MS0]7T1A6.png](http://5krorwxhlkpmrik.leadongcdn.com/cloud/inBqnKjlRikSkrjqnjin/1-F-T7S6MS.png "]1[F)}8}(%T7S6MS0]7T1A6.png")
Test Circuit：
Features of ultrasonic sensors:
1.Small size and light-weight
2. High sensitivity and high sound pressure
3.Low power consumption
4.High reliability
Characteristic:
1.Solid package (ABS or Aluminum alloy shell)
2.Installation expediently(M20*1.5 Screw)
Application:
1.Position Location
2.Approach measurement
3.Traffic Measurement
4.Avoiding Obstacles
