35Khz Anti-corrosion Explosion-proof Ultrasonic Air Transducer for Level Measurement

Applications :
Level measurement
Proximity
Obstacle avoidance
Traffic control

Features :
Rugged sealed construction
Standard internal shielding

Quantity:
  • PHA-34-12FC-FB
  • Piezohannas
  • PHA-34-12FC-FB

35Khz Anti-corrosion Explosion-proof Ultrasonic Air Transducer for Level Measurement



Specification:



Items

Technical Parameters


Name

34KHz Anti-corrosion and explosion-proof transducer

VAL`94218955%VFL%6K0R

Model

PHA-34-12FC-FB

Frequency

34KHz±5%

Detection Distance

0.512m

Minimum Parallel lmpedance

930Ω±20

Capacitance

6900pF±20@1KHz

Sensitivity

load driving Voltage650Vpp,Distance:0.6mEcho Amplitude:350mV

Operating Voltage

Peak Voltage1500Vpp

Operating Temperature

-40+80℃

Pressure

≤3Kilos or 0.3MPa

Angle

(Beamwidth)Half-power Beam Width@-3dB@-3dB:8°±10%,

Sharp Angle:18°±10%

Housing Material

PTFE

usage

Ultrasonic level gauge, monitoring, anti - collision, security

Installation Dimension

Checking product structure diagram below

Protection Level

IP68

Weight

1200g±5

Wiring Instructions

Integrated interface (3PIN,2.54mm terminal) : red positive, white negative, black shield wire; Interface (3PIN,2.0mm terminal) : white and black for temperature sensor wire (MF58);

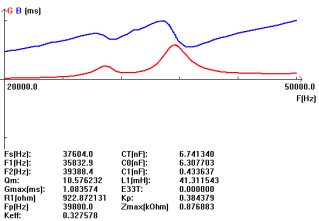

Admittance Curve

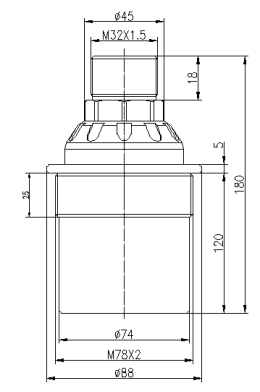

Product Structure Diagram



ON0S24DXPNGGNZG(O

O%0`UEECFY`CBHFQJ`B2




Ultrasonic Level Measurement Application:


In non-contact ultrasonic level measurement, the sensor emits ultrasonic pulses in the direction of the medium, which then reflects them back.

The elapsed time from emission to reception of the signals is proportional to the level in the tank. Ultrasonic sensors are ideal for simple standard applications, both for liquids and for solids.
