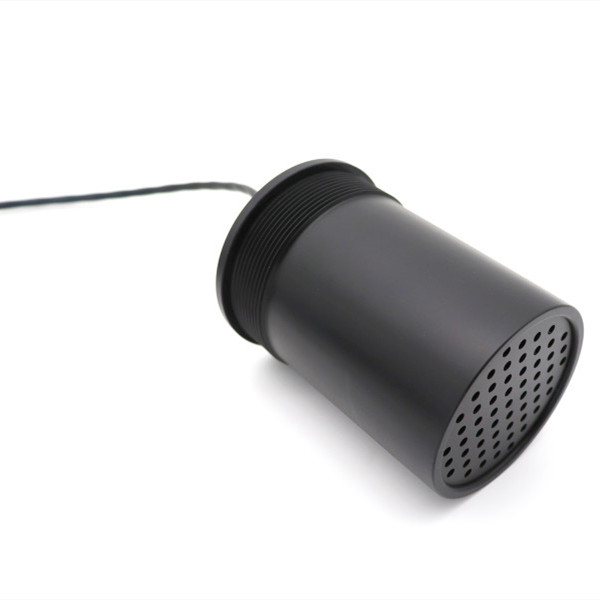

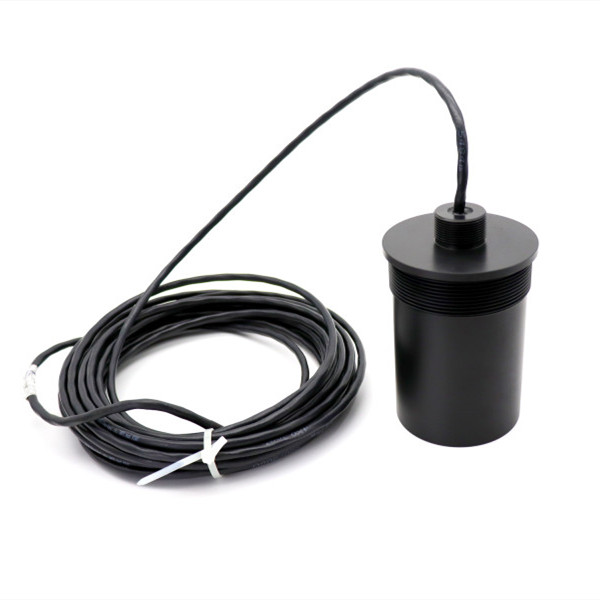

25KHz Piezoelectric Ultrasonic Transducer for 20M Distance
Specification:
Items | Technical Parameters | Image | |
Name | 25KHz Anticorrosive transducer |
| |
Model | PHA-25-20FC | ||
Frequency | 25KHz±5% | ||
Detection Distance | 0.8～20m | ||
Minimum Parallel lmpedance | 570Ω±20％ | ||
11000pF±20％ @1KHz | |||
Sensitivity | load driving voltage:630Vpp，Distance:0.6m、Echo Amplitude:220mV | ||
-40～+80℃ | |||
≤3Kilos or 0.3MPa | |||
(Beamwidth)Half-power Beam Width@-3dB:11°±10%， Sharp Angle:26°±10% | |||
Housing Material | PTFE | ||
usage | Ultrasonic level gauge, monitoring, anti - collision, security | ||
Protection Level | IP68 | ||
Weight | 990g±5％ | ||
Wiring Instructions | Integrated interface (3PIN,2.54mm terminal) : red positive, white negative, black shield wire; Interface (3PIN,2.0mm terminal) : white and black for temperature sensor wire (MF58); | ||

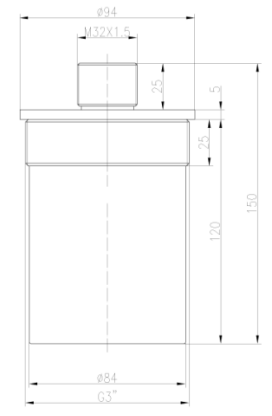

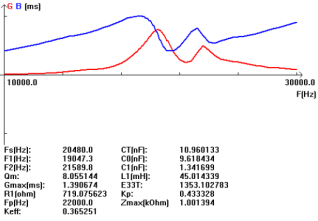

Admittance Curve | Product Structure Diagram | ||
|
| ||
Ultrasonic level measurement
In non-contact ultrasonic level measurement, the sensor emits ultrasonic pulses in the direction of the medium, which then reflects them back.The elapsed time from emission to reception of the signals is proportional to the level in the tank. Ultrasonic sensors are ideal for simple standard applications, both for liquids and for solids.The ultrasonic method is a proved, as well as cost-effective solution for level measurement in liquids and bulk solids. Instruments are available as compact or separate versions. This measuring principle is characterized by easy planning and assembly, fast and safe commissioning, a long service life and reduced maintenance costs. Typical applications include abrasive and aggressive media, even in rough ambient conditions.A sensor emits ultrasonic pulses, the surface of the media reflects the signal and the sensor detects it again. The Time-of-Flight of the reflected ultrasonic signal is directly proportional to the distance traveled. With the known tank geometry the level can be calculated.
