21KHz Ultrasonic Air Transducer for Ultrasonic Level Sensor

Quantity:
  • PHA-21-30D-FB
  • Piezohannas
  • PHA-21-30D-FB

         21KHz Ultrasonic Air Transducer for Ultrasonic Level Sensor



Specification:



Items

Technical Parameters


Name

21KHz explosion proof type ultrasonic transducer



(IW47_Q4VP7PE_GU78

Model

PHA-21-30D-FB

Frequency

21KHz±5%

Detection Distance

1.030m

Minimum Parallel lmpedance

700Ω±20

Capacitance

11000pF±20@1KHz

Sensitivity

load driving Voltage560VppDistance:0.6mEcho Amplitude:1100mV

Operating Voltage

Peak Voltage1500Vpp

Operating Temperature

-40+80℃

Pressure

≤3Kilos or 0.3MPa

Angle

(Beamwidth)Half-power Beam Width@-3dB:11°±10%

Sharp Angle:27°±10%

Housing Material

POM

usage

Ultrasonic level gauge, monitoring, anti - collision, security

Protection Level

IP68

Weight

1400g±5

Wiring Instructions

Integrated interface (3PIN,2.54mm terminal) : red positive, white negative, black shield wire; Interface (3PIN,2.0mm terminal) : white and black for temperature sensor wire (MF58);

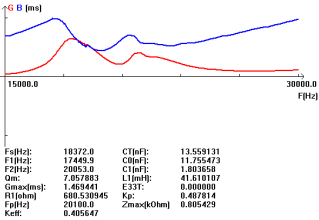

Admittance Curve

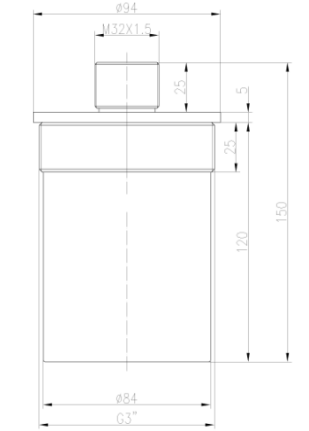

Product Structure Diagram



EA`IBKVR86PAKXZ0RRCEQ

YZB4D(IB1V4(5AH8PHN2L2


Ultrasonic level measurement  Application :


Ultrasonic level measurement with Prosonic sensors provides continuous, non-contact and maintenance-free level measurement of fluids, pastes, sludges and powdery to coarse bulk materials. The measurement is unaffected by dielectric constant, density or humidity and also unaffected by build-up due to the self-cleaning effect of the sensors. Check out the broad range of Prosonic devices for ultrasonic level measurement and click on the button below.The ultrasonic method is a proved, as well as cost-effective solution for level measurement in liquids and bulk solids. Instruments are available as compact or separate versions. This measuring principle is characterized by easy planning and assembly, fast and safe commissioning, a long service life and reduced maintenance costs. Typical applications include abrasive and aggressive media, even in rough ambient conditions.
