PHA-200-01M
Piezohannas
PHA-200-01M
200KHz Ultrasonic Piezoelectric Transducers Sensor for Level Measurement
Specification:
Items | Technical Parameters | Image | |
Name | Ultrasonic transducer |
| |
Model | PHA-200-01M | ||
Frequency | 200KHz±6% | ||
Detection Distance | 0.10～2m | ||
Minimum Parallel lmpedance | 550Ω±20％ | ||
450pF±20％ @1KHz | |||
Sensitivity | Load Driving Voltage：800Vpp，Distance :0.3m， Echo Amplitude ：40mV | ||
-40～+80℃ | |||
≤3kg or 0.3MPa | |||
| (Beamwidth) Half-power Beam Width @-3dB:6°±2， Sharp Angle:15°±4 | ||
Housing Material | Under the environment of weak acid and weak base （POM） | ||
Usage | Security | ||
Dimension：16*19 | |||
Protection Level | IP68 | ||
Weight | 13g±5％（Length：8cm） | ||
Wiring Instructions | Integrated interface：Red: transducer+，Yellow: transducer-, Black: shielded wire，（ temperature sensor is optional） | ||
Admittance Curve | Product Structure Diagram | ||
|
| ||

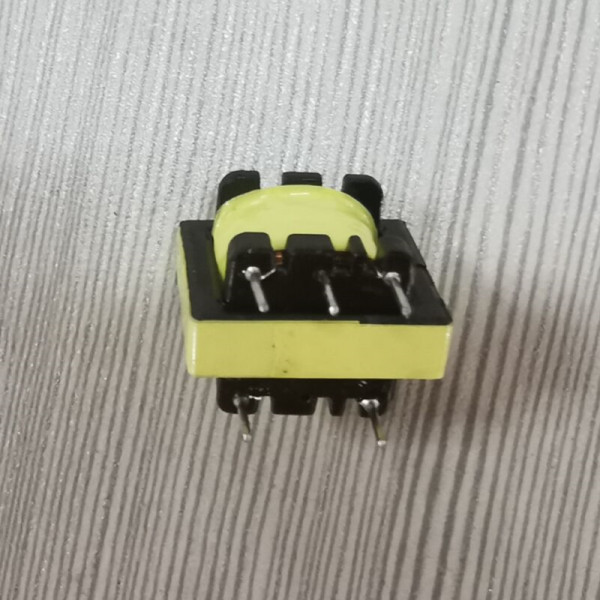

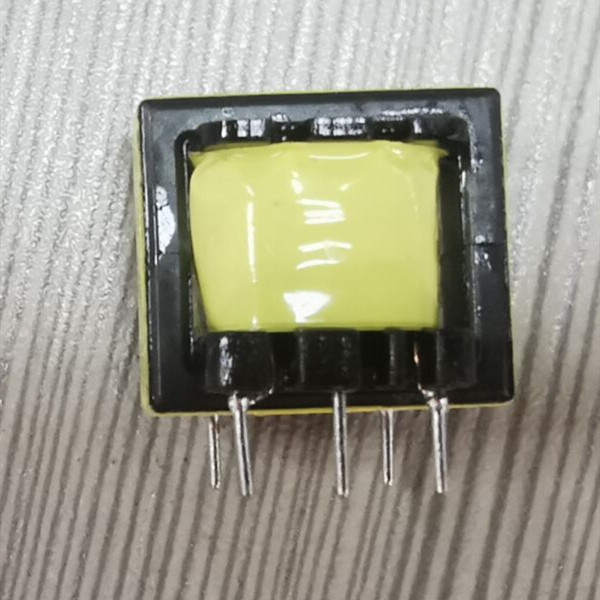

Matched Transformers (Turns ratio : 16:270 )
