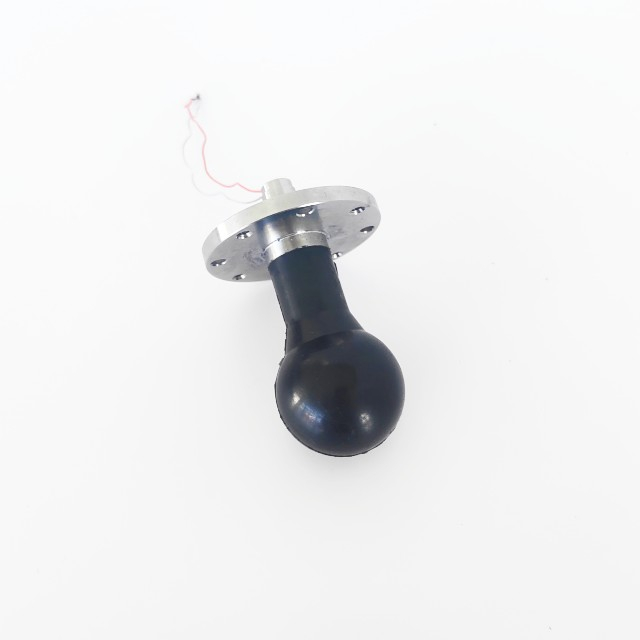

Low Cost 1khz-100khz Receiving Transmitting Spherical Transducer

1KHz~100kHz receiving transducer
20KHz~100kHz transmitting transducer
Availability:
Quantity:
  • Piezohannas

   Low Cost 1khz-100khz Receiving Transmitting Spherical Transducer

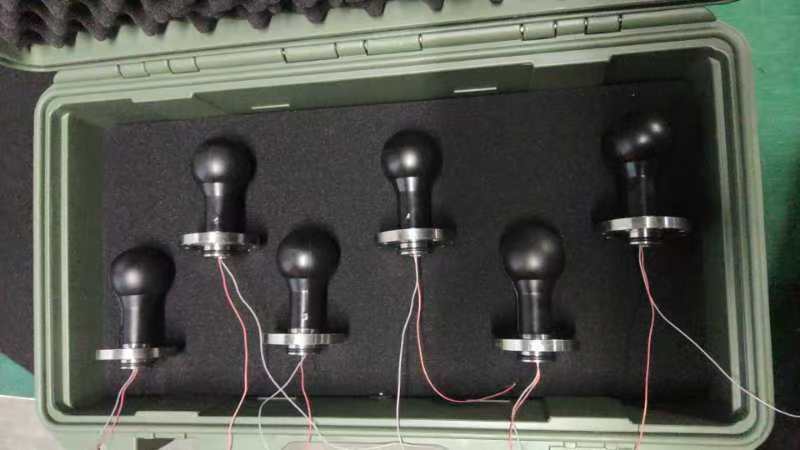

4f53e3c75f4890464ac9464d9fc1b59


1. Measurement content:



1.1 Working frequency band

The working frequency band of the hydrophone is 20Hz100kHz.



1.2. Receiving sensitivity

The receiving sensitivity within 0.02KHz-50KHz is not less than -197dB, and other frequency bands are available.



1.3. Horizontal directivity

Omnidirectional, measuring frequency points 10kHz, 30kHz, 50kHz.



1.4. Vertical directivity

Measure the vertical directivity of the transducer, measuring frequency points 10kHz, 30kHz, 50kHz.



1.5. Hydrostatic pressure: 20MPa.


2.Measurement data



1.

2.1 static capacitance




2024-01#

2024-02#

2024-03#

2024-04#

2024-05#

2024-06#

C0/nF

2.89

2.94

2.98

2.88

2.9

2.92





2.2 receiving sensitivity

f/kHz

2024-01#

2024-02#

2024-04#

2024-05#

2024-06#

0.02

-190.9

-190.6

-190.8

-190.8

-190.4

0.025

-190.5

-190.7

-190.6

-190.6

-190.5

0.0315

-190.4

-190.6

-190.6

-190.7

-190.5

0.04

-190.4

-191.0

-191.0

-191.0

-191.4

0.05

-190.4

-190.7

-190.8

-190.6

-190.4

0.063

-190.5

-190.6

-190.7

-190.9

-190.6

0.08

-190.5

-190.7

-190.8

-190.6

-190.4

0.1

-189.7

-190.8

-190.6

-191.0

-190.5

0.125

-190.4

-190.6

-190.7

-190.6

-191.0

0.16

-190.4

-190.6

-190.6

-190.6

-190.4

0.2

-190.4

-190.7

-190.6

-190.7

-190.7

0.25

-190.6

-190.6

-190.7

-190.7

-191.0

0.315

-191.0

-190.6

-190.8

-190.6

-190.4

0.4

-190.1

-190.6

-190.7

-190.7

-190.9

0.5

-191.0

-190.7

-190.9

-190.6

-190.5

0.63

-190.4

-190.7

-191.0

-190.8

-190.9

0.8

-190.5

-191.1

-190.6

-190.6

-190.9

1

-190.9

-190.7

-190.6

-190.6

-190.4

1.25

-190.6

-190.7

-190.7

-190.7

-190.5

1.6

-190.6

-190.6

-190.6

-190.6

-190.8

2

-190.8

-190.6

-190.6

-191.1

-191.2

2.5

-191.2

-191.2

-191.9

-191.5

-192.1

3.15

-190.8

-191.4

-191.7

-190.6

-191.9

4

-192.2

-190.6

-192.6

-192.5

-192.4

5

-190.9

-191.9

-191.5

-191.7

-192.3

6.3

-190.4

-191.4

-191.2

-191.2

-191.9

8

-192.0

-190.7

-192.2

-191.1

-192.0

10

-190.9

-191.7

-193.2

-191.4

-191.5

12.5

-191.4

-192.3

-192.5

-192.1

-192.0

16

-191.5

-193.6

-193.5

-193.1

-192.5

20

-193.4

-193.3

-193.6

-193.3

-193.4

25

-193.4

-193.6

-193.9

-192.9

-193.4

31.5

-193.3

-193.5

-194.1

-193.6

-193.4

40

-193.3

-193.5

-194.8

-193.5

-193.3

50

-193.2

-193.6

-193.2

-193.4

-193.3

63

-200.3

-200.4

-200.4

-200.1

-200.3

80

-207.8

-207.9

-207.6

-207.5

-207.7

100

-215.0

-215.2

-215.3

-215.2

-215.4







1.

1.1.

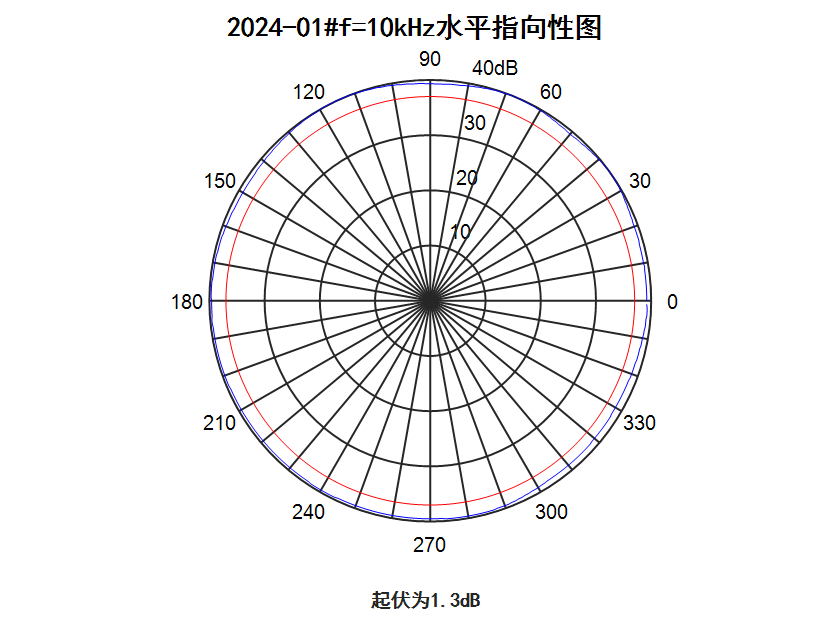

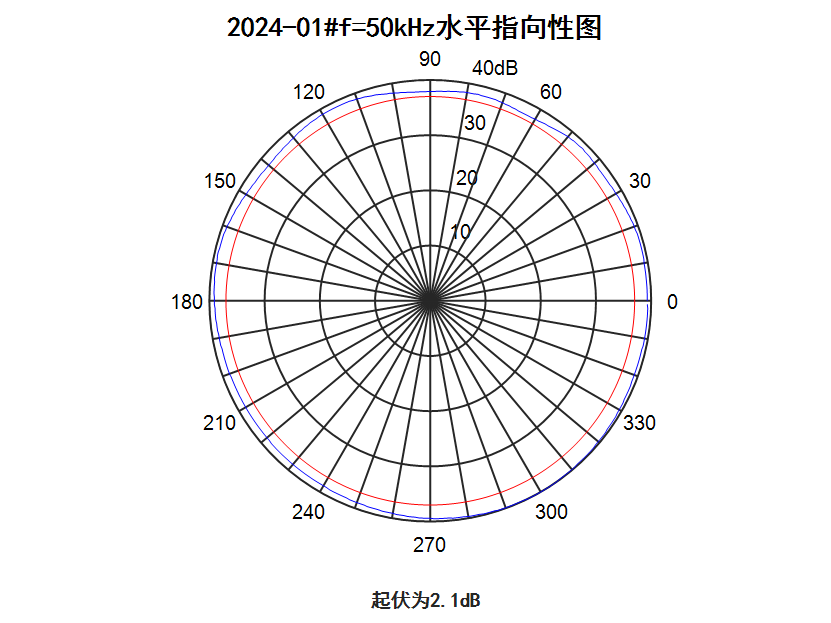

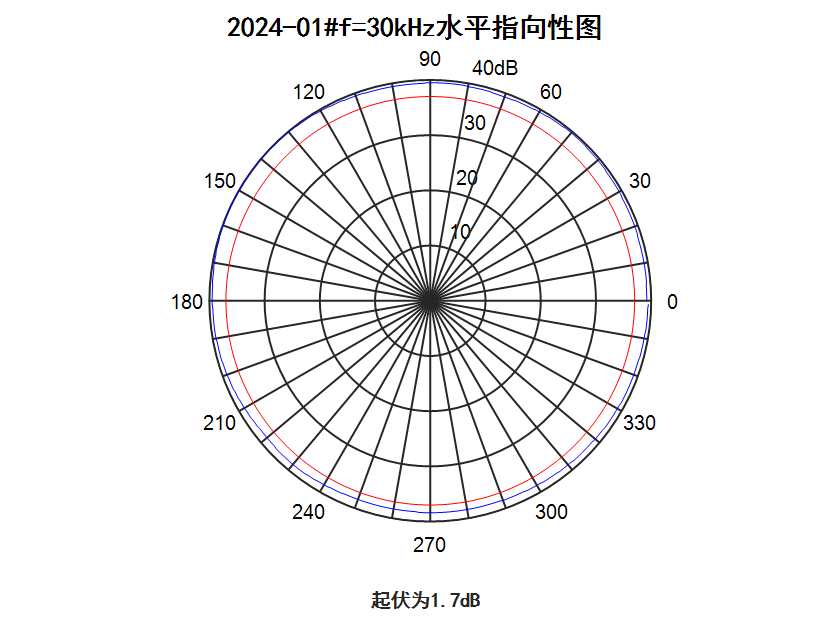

2.3 Horizontal directivity

 PCZ)JJ6Z`QVU`BL0Z3BR






 UD5QTEAAH9IS`F8%B

 XUY7)K8Y1BAVQTB(4OTG

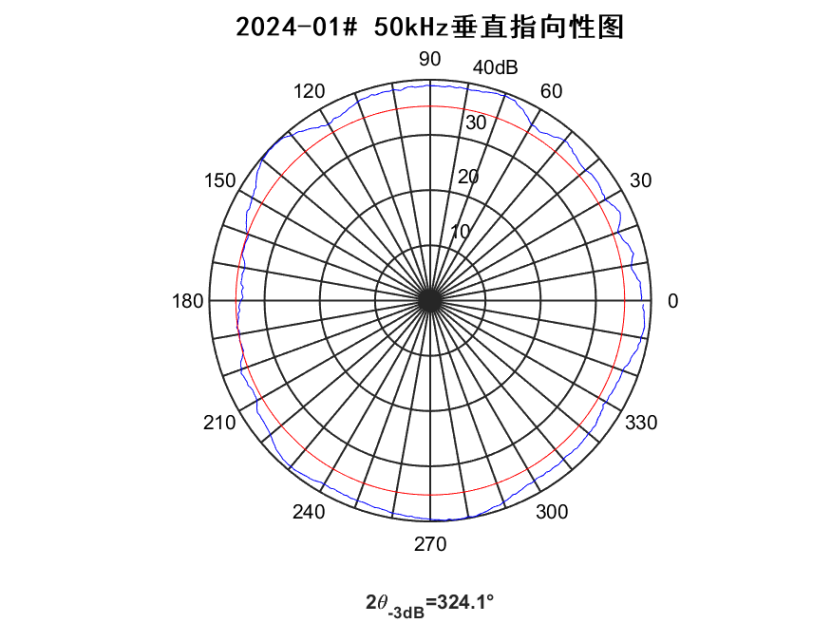

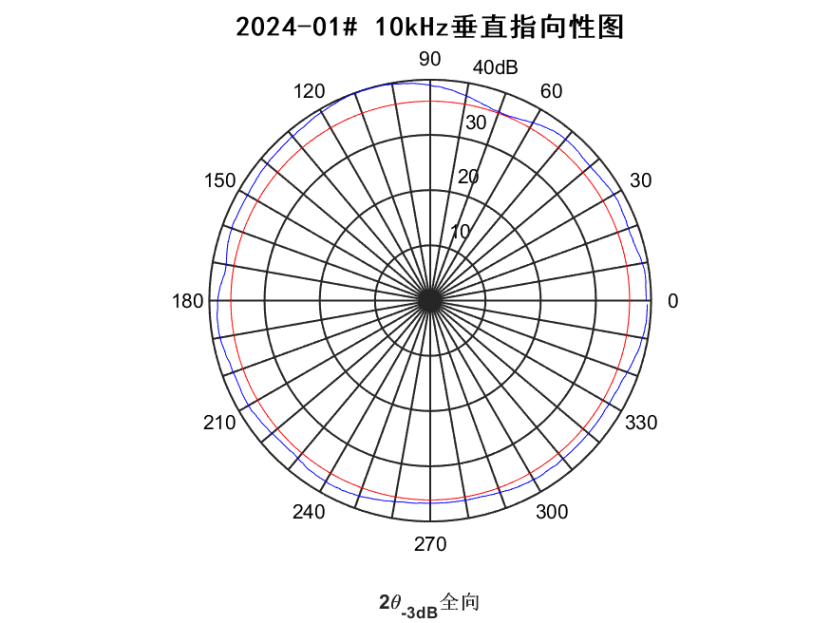

2.4 Vertical directivity


1Q_467SPB040R2_OE8XQU

3KKV6F5%GN4QM149Q

EARVJ5D8DUL9HA3Q_2%97





The 20KHz-100KHz transmitting measurements are shown in the table below:





Frequency

20KHz

30KHz

40KHz

50KHz

60KHz

70KHz

80KHz

90KHz

100KHz

voltage response

124dB

131dB

136dB

141dB

144dB

142dB

137dB

136dB

134dB

sound source level (SL)



184dB

191dB

192dB

194dB

195dB

194dB

194dB

194dB

191dB





Hydrostatic pressure test

After 20MPa/0.5h, 0MPa/0.25h, and 20MPa/0.5h hydrostatic pressure tests, the insulation resistance between the positive and negative electrodes of the hydrophone is greater than 100MΩ.
