Cylindrical Design Ultrasonic Range Transducer for Obstacle avoidance

Applications :
Level measurement
Proximity
Obstacle avoidance
Traffic control

Features :
Rugged sealed construction
Standard internal shielding

Quantity:
  • PHA-34-12F
  • Piezohannas
  • PHA-34-12F

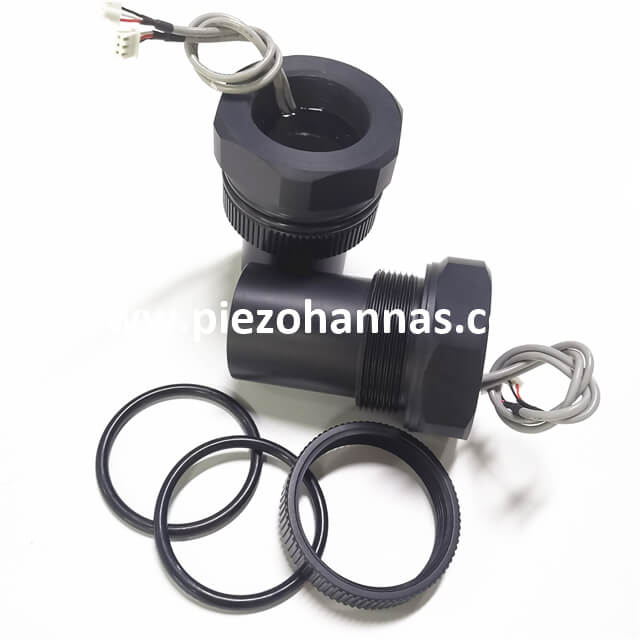

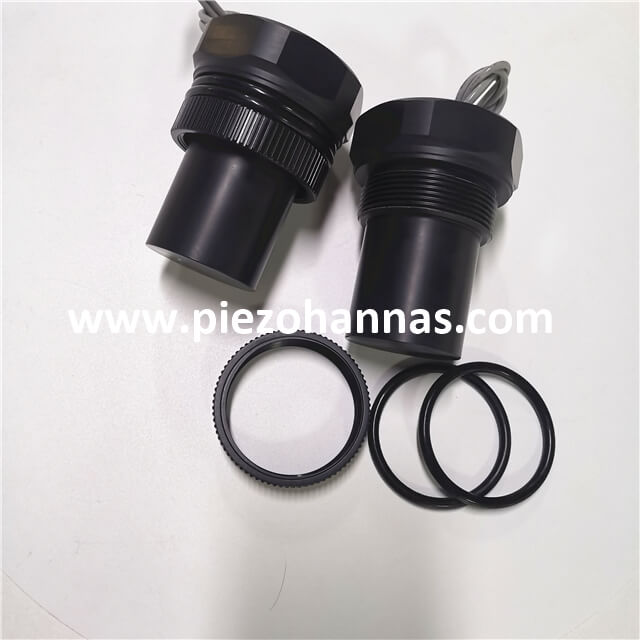

 Cylindrical Design Ultrasonic Range Transducer for Obstacle avoidance



Specification:



Items

Technical Parameters


Name

34KHz Ultrasonic transducer





1 (2)

Model

PHA-34-12F

Frequency

34KHz±5%

Detection Distance

0.512m

Minimum Parallel lmpedance

Ω±20

Capacitance

pF±20@1KHz

Sensitivity


Operating Voltage

Peak Voltage1500Vpp

Operating Temperature

-40+80℃

Pressure

≤3Kilos or 0.3MPa

Angle

(Beamwidth)Half-power Beam Width@-3dB:11°±10%

Sharp Angle28°±10%

Housing Material

POM

Usage

Ultrasonic level gauge,Monitoring,Crashproof

Protection Level

IP68

Wiring Instructions

Integrated interface (3PIN,2.54mm terminal) : red positive, white negative, black shield wire; Interface (3PIN,2.0mm terminal) : white and black for temperature sensor wire (MF58);

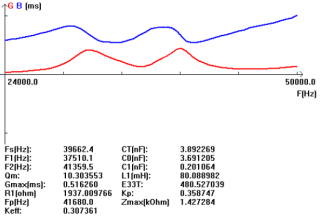

Admittance Curve

Product Structure Diagram



M7F6TNCNMB06NR0IZ`X

  M%YJREMWMKJAUDNWGV8NZUF




Obstacle Avoidance Application:
