PH125F023
Piezohannas
PH125F023
Buy 125KHz Ultrasonic Distance Measuring Transducer Sensor for Proximity
Introduction:
PH125F023 ultrasonic sensor has the functions of transmitter and receiver. It’s a long range type, generally can be used for ultrasonic range finder, ultrasonic sensor for non-contact detect objects, ultrasonic distance sensor, ultrasonic liquid level sensor, etc. If you have any questions for other applications, please contact us for details.
Technical parameters：
Model | PH125F023 |
Center frequency (KHz) | 125KHZ |
Bandwidth | ±4% |
Measure range | 0.20-3m |
Blind zone | <0.20m |
Beam angle(-3dB) | 14±2° |
Static Capacitance | 1000PF±200PF |
Minimal parallel impedance | 300Ω±30% |
Maxim operating voltage (Pulse Duty cycle ratio 2%) | <800V |
Operating temperature | -20~80℃ |
Defend class | IP65 |
Dimension (diameter * height mm) | φ25×25 |
installation | Circle fixed |
Shell material | ABS or Aluminum alloy shell |
Cable length | 2m(according to user’s requirement ) |
Weight | 20g |

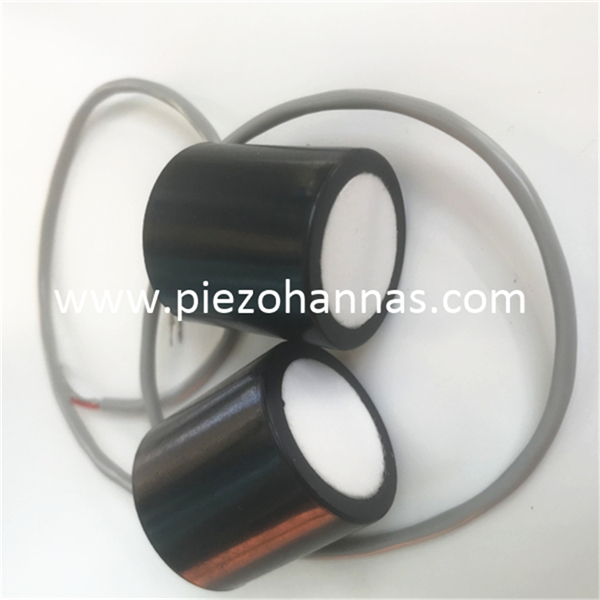

Photo:
Outline Dimension：
![J48{$585G5}%TMI9JM]PI]L.png](http://5krorwxhlkpmrik.leadongcdn.com/cloud/ilBqnKjlRikSkrpqpjio/J48G5-TMI9.png "J48{$585G5}%TMI9JM]PI]L.png")
Test Circuit：
Features of ultrasonic sensors:
1.Small size and light-weight
2. High sensitivity and high sound pressure
3.Low power consumption
4.High reliability
Characteristic:
1.Solid package (ABS or Aluminum alloy shell)
2.Installation expediently (M20*1.5 Screw)
Application:
1.Position Location
2.Approach measurement
3.Traffic Measurement
4.Avoiding Obstacles
