PHA-200-01O
Piezohannas
PHA-200-01O

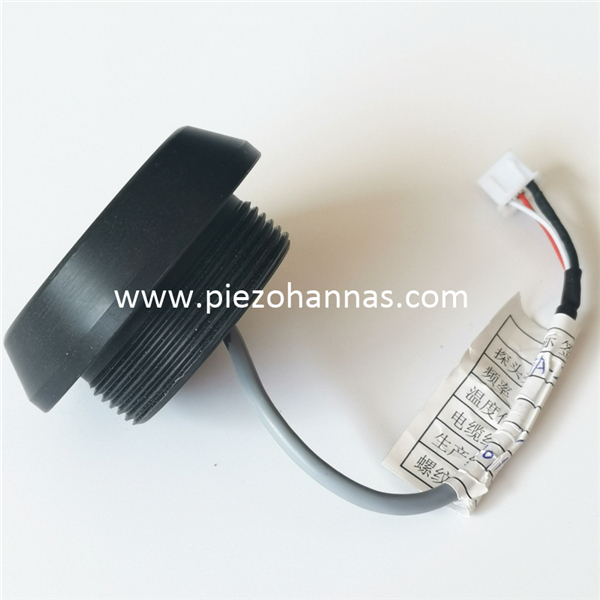

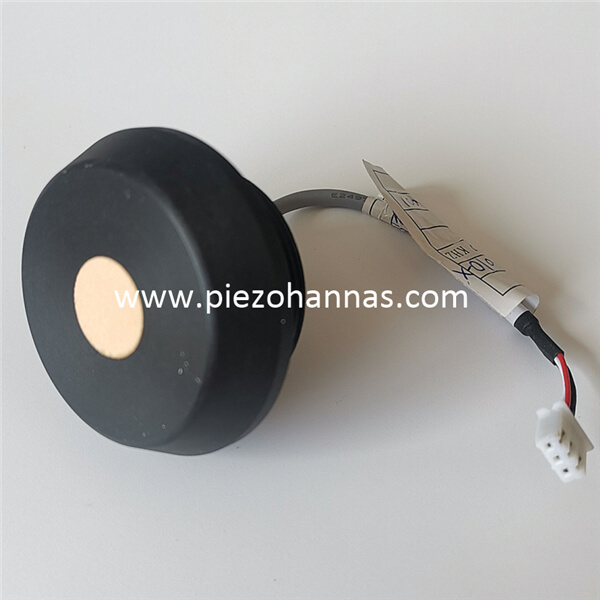

200KHz Ultrasonic Proximity Transducer Double Sheet Detector Transducer for Paper Checking
Items | Technical Parameters | Image | |
Name | 200KHz ultrasonic transducer (sheet checking) |
| |
Model | PHA-200-01O | ||
Frequency | 200KHz±5% | ||
Detection Distance | 0.10～1.5m | ||
Minimum Parallel lmpedance | 900Ω±20％ | ||
Capacitance | 330pF±20％ @1KHz | ||
Sensitivity | Driving Voltage：800Vpp，Distance:0.3m， Echo Amplitude:25mV | ||
Operating Voltage | Peak Voltage＜1000 VPP | ||
Operating Temperature | -40～+80℃ | ||
Pressure | ≤3Kilos or 0.3MPa | ||
Angle | (Beamwidth) Half-power Beam Width@-3dB:6°±2， Sharp Angle:14°±4 | ||
Housing Material | POM | ||
Usage | Ultrasonic level gauge,Ultrasonic proximity switch，ultrasonic sensor | ||
Installation Dimension | thread：M38*1.5 | ||
Protection Level | IP68 | ||
Weight | 40g±5％（Length：20cm） | ||
Wiring Instructions | Integrated interface：Red+，White-，Black: shielded wire （ temperature sensor is optional）
| ||
Admittance Curve | Product Structure Diagram | ||
| | ||
The printing industry is affected by increasing demands on flexibility, quality, and speed. Various print jobs from small to large editions require high flexibility and fast machine changeover. At the same time quality demands are increasing.
In press and postpress processes machines need to operate precisely to minimize material waste and machine downtime.Ultrasonic sensors detect double sheets and splices regardless of the material or color.
200KHz Ultrasonic Proximity Transducer Double Sheet Detector Transducer for Paper Checking
Items | Technical Parameters | Image | |
Name | 200KHz ultrasonic transducer (sheet checking) |
| |
Model | PHA-200-01O | ||
Frequency | 200KHz±5% | ||
Detection Distance | 0.10～1.5m | ||
Minimum Parallel lmpedance | 900Ω±20％ | ||
Capacitance | 330pF±20％ @1KHz | ||
Sensitivity | Driving Voltage：800Vpp，Distance:0.3m， Echo Amplitude:25mV | ||
Operating Voltage | Peak Voltage＜1000 VPP | ||
Operating Temperature | -40～+80℃ | ||
Pressure | ≤3Kilos or 0.3MPa | ||
Angle | (Beamwidth) Half-power Beam Width@-3dB:6°±2， Sharp Angle:14°±4 | ||
Housing Material | POM | ||
Usage | Ultrasonic level gauge,Ultrasonic proximity switch，ultrasonic sensor | ||
Installation Dimension | thread：M38*1.5 | ||
Protection Level | IP68 | ||
Weight | 40g±5％（Length：20cm） | ||
Wiring Instructions | Integrated interface：Red+，White-，Black: shielded wire （ temperature sensor is optional）
| ||
Admittance Curve | Product Structure Diagram | ||
| | ||
The printing industry is affected by increasing demands on flexibility, quality, and speed. Various print jobs from small to large editions require high flexibility and fast machine changeover. At the same time quality demands are increasing.
In press and postpress processes machines need to operate precisely to minimize material waste and machine downtime.Ultrasonic sensors detect double sheets and splices regardless of the material or color.
