1MHz Ultrasonic Flow Transducers for Flow Measurement

ultrasonic transducer for ultrasonic water flowmeter

Quantity:
  • PH1000-01
  • Piezohannas
  • PH1000-01

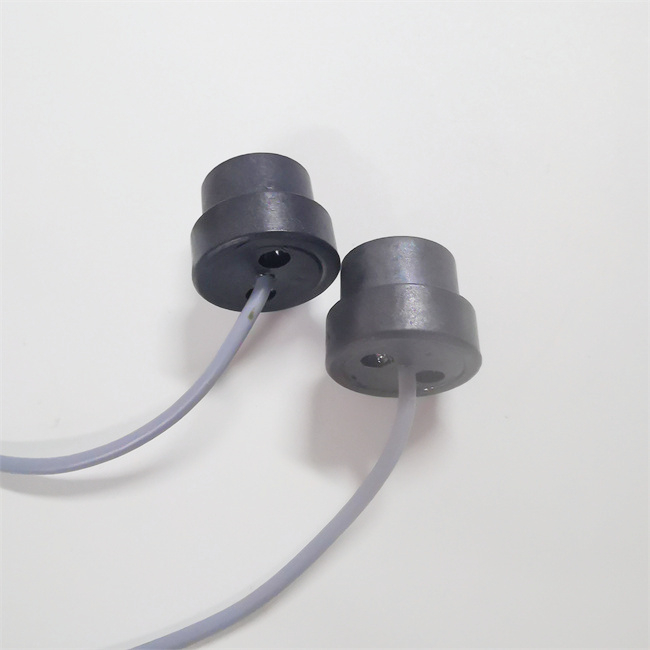

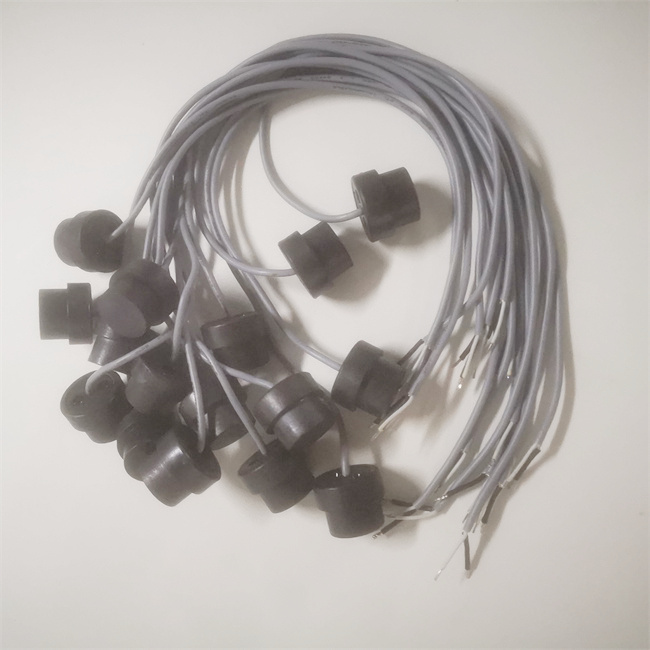

           1MHz Ultrasonic Flow Transducers for Flow Measurement




1.The main purpose:



Used for water flow measurement

Accurate measurement with liquid at short distances


2.Features:



Small size, easy to install

High sensitivity, small residual vibration, broadband, test accuracy

long working life


1MHz Ultrasonic Flow Transducers for Flow Measurement


6V`_OYGHRR5%)IDSXQ8P



3. Technical Parameters:



Name

Specification

Item

Specification

product type

Ultrasonic flowmeter transducer

resistance value Z(Ω)

200Ω±30%

product model

PH1000-01

Maximum driving voltage

300V

Piezoelectric ceramic Frequency f(kHz)

1.00MHz±2%

operating temperature()

4~+50℃

Transducer frequency f(kHz)

1.00MHz±3%

storage temperature()

-30~+80℃

bandwidth△funderwater

±10%

waterproofing grade

IP68

Residual vibration of transducer

˂ 30μs

 Shell material

PPSpolyphenylene sulfide

overall sensitivity(V)

(0dB=3Vp-p 8pulses L=80mm)



>200mv



cable specification



Single Shield Wire 40CM

 beam angle°(-3dB)

corrosion resistance

Weak acid weak alkali resistant

electrostatic capacitance(pf)

1200PF±20%

weight(g)

16g/pc





Remark

size of transducer structure can be customized according to user needs.
