PHW-110-50A
Piezohannas
PHW-110-50A
110KHz Ultrasonic Fish Finder Transducer for Ultrasonic Fish Finder
Technical parameters:
Items | Technical Parameters | Image | |
Name | 110KHz fish finder transducer |
| |
Model | PHW-110-50A | ||
Frequency | 110KHz±5% | ||
Detection Distance | 0.3～100m | ||
Minimum Parallel lmpedance | 470Ω±20％ | ||
1700pF±20％ @1KHz | |||
Sensitivity | No load driving Voltage：300Vpp、Distance：0.65m、 Echo Amplitude：800 mV | ||
-40～+80℃ | |||
≤10Kilos or 1MPa | |||
(Beamwidth) Half-power Beam Width @-3dB:40°±10%， Sharp Angle:107°±10% | |||
Housing Material | POM | ||
Usage | underwater fish finder transducer | ||
Checking product structure diagram below | |||
Protection Level | IP68 | ||
Weight | 32g±5％（length：10cm） | ||
wiring instructions | Red: transducer+，White: transducer-, Black: shielded wire，（ temperature sensor is optional） | ||

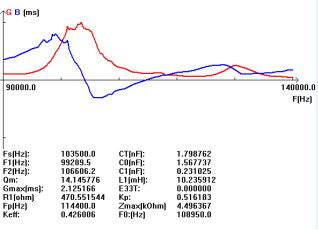

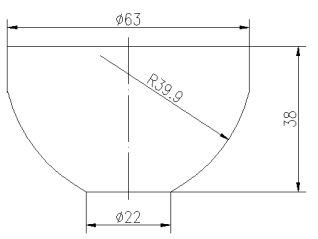

Admittance Curve | Product Structure Diagram | ||
|
| ||
Block diagram of ultrasonic transducer :
Schematic Diagram of Temperature Sensor (model: MF58_502F3470):
Integrated type Cable instruction:
1.Wiring instruction of transducer: interface (3pin, 2.54mm terminal)
Red: transducer +
White: transducer -
Black: shielding
2.Cable Instruction of Temperature Sensor: interface (3pin, 2.0mm terminal)
Red and black are temperature sensor wiring
Split type: standard 10m cable, with each additional 50m of cable, the signal attenuation is 6dB
Three-core wiring instructions:
Red: Transducer +
Blue: temperature sensor +
Black: Public-
Four-core wiring instructions:
Red: Transducer +
Yellow: Transducer-
Blue, black: temperature sensor
Fish Finder Ultrasonic Sonar Sensor
A fish finder consists of two parts: main unit (with a screen) and transducer. The main unit should be located where it can be easily accessed in the cabin or wheelhouse, etc. The transducer should be mounted on the boat's bottom either through hull or in-hull installation. Please bear in mind that the performance of a fish finder depends largely on whether the transducer is properly mounted on the boat's bottom. An improperly mounted transducer may result in failure in capturing reflected waves or other serious defects. To avoid these troubles, you should consult with a technical dealer on how to properly install the transducer prior to actual installation.
