PHW-110-50A
Piezohannas
PHW-110-50A

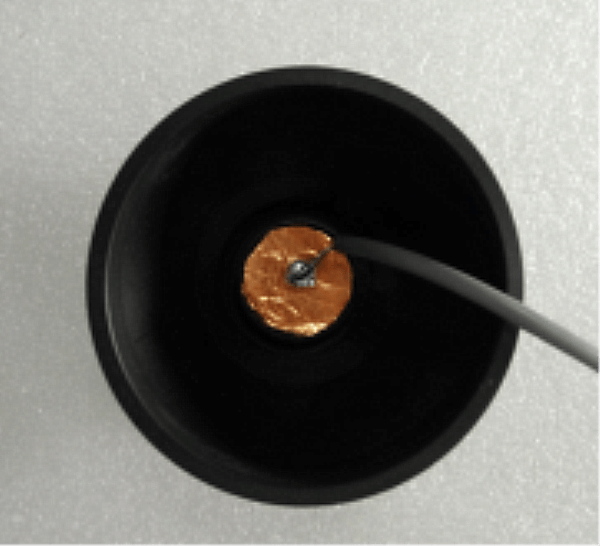

110KHz Ultrasonic Fish Finder Transducer for Fish Finder
Technical parameters:
Items | Technical Parameters | Image | |
Name | 110KHz fish finder transducer |
| |
Model | PHW-110-50A | ||
Frequency | 110KHz±5% | ||
Detection Distance | 0.3～100m | ||
Minimum Parallel lmpedance | 470Ω±20％ | ||
1700pF±20％ @1KHz | |||
Sensitivity | No load driving Voltage：300Vpp、Distance：0.65m、 Echo Amplitude：800 mV | ||
-40～+80℃ | |||
≤10Kilos or 1MPa | |||
(Beamwidth) Half-power Beam Width @-3dB:40°±10%， Sharp Angle:107°±10% | |||
Housing Material | POM | ||
Usage | underwater fish finder transducer | ||
Checking product structure diagram below | |||
Protection Level | IP68 | ||
Weight | 32g±5％（length：10cm） | ||
wiring instructions | Red: transducer+，White: transducer-, Black: shielded wire，（ temperature sensor is optional） | ||
Admittance Curve | Product Structure Diagram | ||
|
| ||
Block diagram of ultrasonic transducer :
Schematic Diagram of Temperature Sensor (model: MF58_502F3470):
Integrated type Cable instruction:
1.Wiring instruction of transducer: interface (3pin, 2.54mm terminal)
Red: transducer +
White: transducer -
Black: shielding
2.Cable Instruction of Temperature Sensor: interface (3pin, 2.0mm terminal)
Red and black are temperature sensor wiring
Split type: standard 10m cable, with each additional 50m of cable, the signal attenuation is 6dB
Three-core wiring instructions:
Red: Transducer +
Blue: temperature sensor +
Black: Public-
Four-core wiring instructions:
Red: Transducer +
Yellow: Transducer-
Blue, black: temperature sensor
