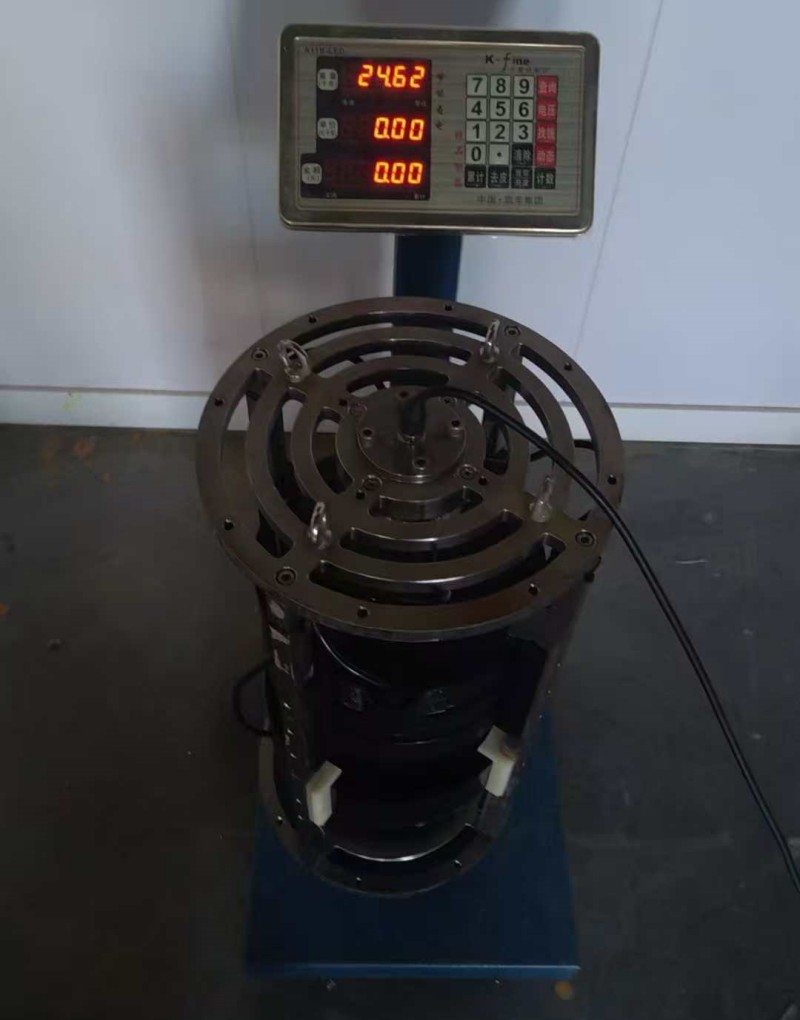

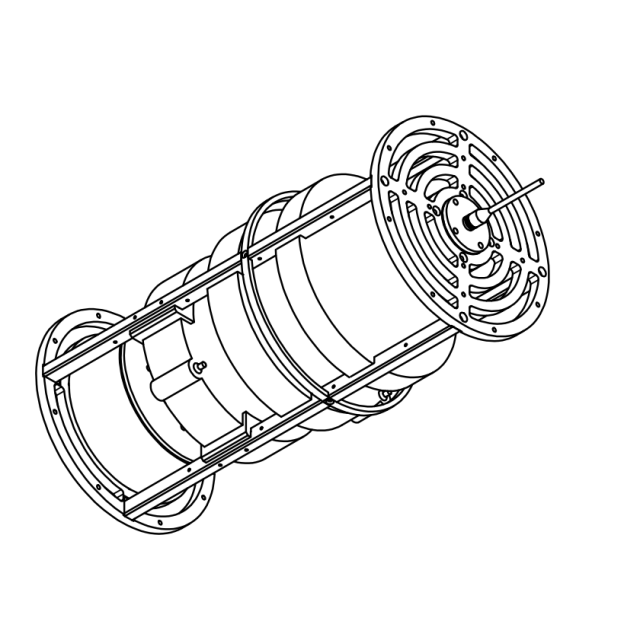

Low Frequency 300Hz-10000Hz Acoustic Transducer Hydrophone Underwater Projector

766492f3f36bb485eb714771514fecb3

Measurement Details:

1.1. Operating Frequency Band: 0.3kHz-10kHz;

1.2. Sound Source Level:

0.3kHz-1kHz: ≥160dB, maximum not less than 180dB;

1kHz-1kHz: ≥170dB, maximum not less than 185dB;

2kHz-10kHz: ≥180dB.

1.3. Directivity: Horizontal omnidirectional, vertical opening angle not less than 85°.

1.4. Hydrostatic Pressure: 1MPa.

2. Measurement Data

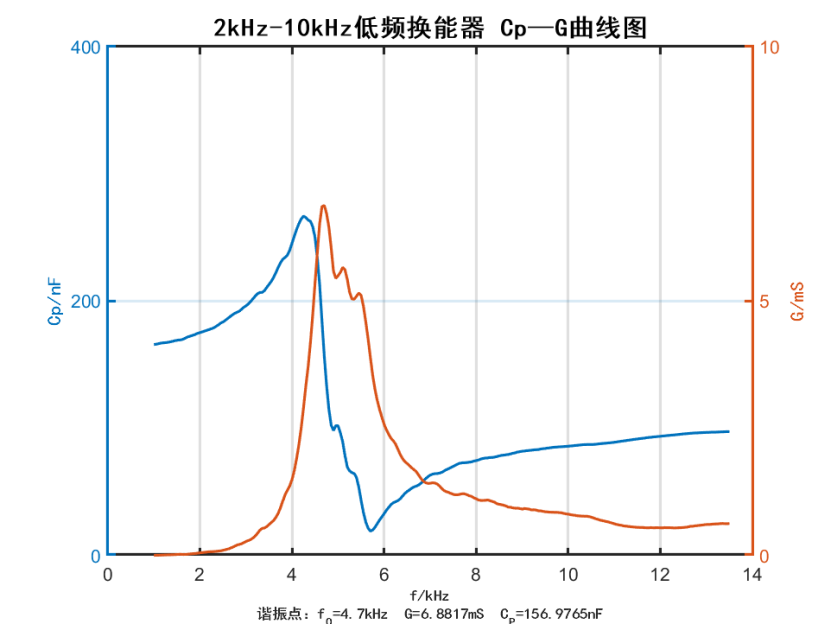

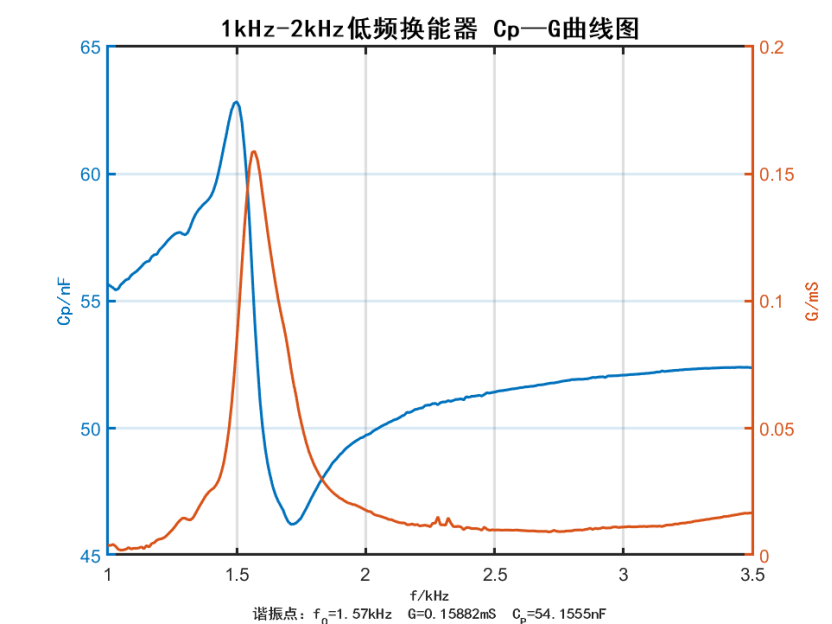

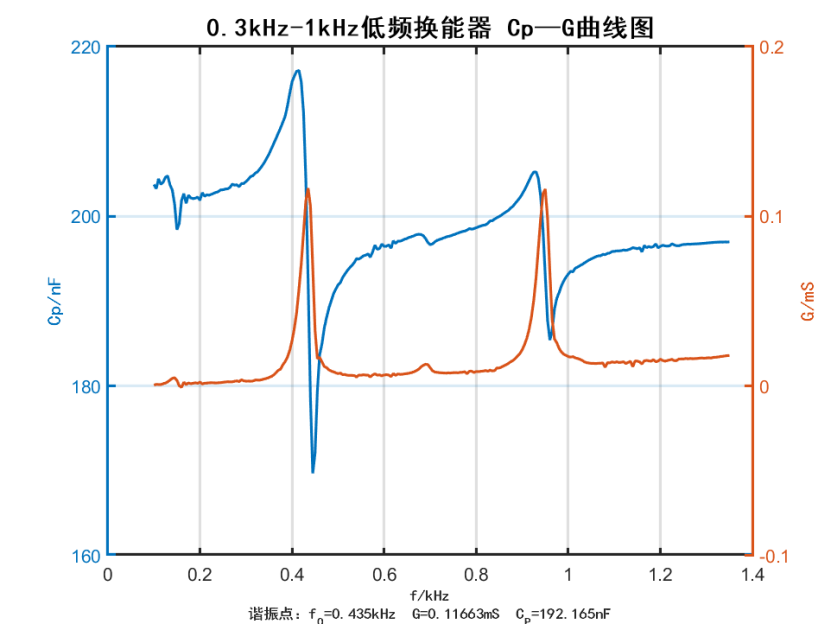

2.2.1. Conductance and Capacitance Curves

0d624a60-501a-4149-9cf7-baa4ccd20488

90fc4576-9e65-4d2a-9392-429cc245d1c2

ecf9dc08-56e7-4bbf-9e38-106052c07d85

Sound source level

f/kHz	d/m	U_发/Vpp	U_收/mVpp	M₀/dB	SL/dB
0.3	0.666	1645	8.875	-218.2	164.6
0.4	0.666	1645	36.25	-218.2	176.8
0.43	0.666	2138	56.875	-218.2	180.7
0.5	0.666	1645	26.875	-218.2	174.2
0.6	0.666	1645	18	-218.2	170.7
0.7	0.666	1645	15.375	-218.2	169.4
0.8	0.666	1645	14.5	-218.2	168.9
0.9	0.666	1645	27.125	-218.2	174.3
1	0.666	1645	18.375	-218.2	170.9

1.1	0.666	1585	21.5	-218.3	172.4
1.2	0.666	1585	31.375	-218.3	175.7
1.3	0.666	1585	48	-218.3	179.4
1.4	0.666	1585	65.375	-218.3	182.0
1.5	0.666	1585	83.25	-218.3	184.1
1.6	0.666	1585	94.75	-218.3	185.3
1.7	0.666	1585	88	-218.3	184.6
1.8	0.666	1585	73.25	-218.3	183.0
1.9	0.666	1585	62	-218.3	181.6
2	0.666	1585	55.5	-218.4	180.7

2	0.795	1160	46	-218.5	180.7
2.5	0.795	1160	86	-218.5	186.2
3	0.795	1160	111	-218.6	188.5
4	0.795	290	58.5	-218.7	183.0
5	0.795	290	90	-218.7	186.8
6	0.795	290	71	-218.7	184.7
7	0.795	290	39	-218.7	179.5
8	0.795	290	50	-218.7	181.7
9	0.795	290	56	-218.8	182.7
10	0.795	290	52	-218.8	182.1

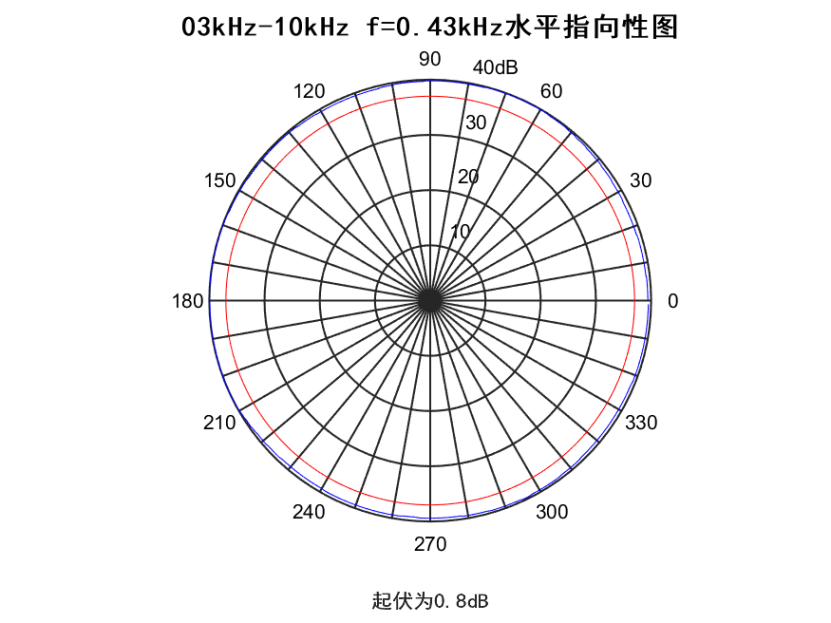

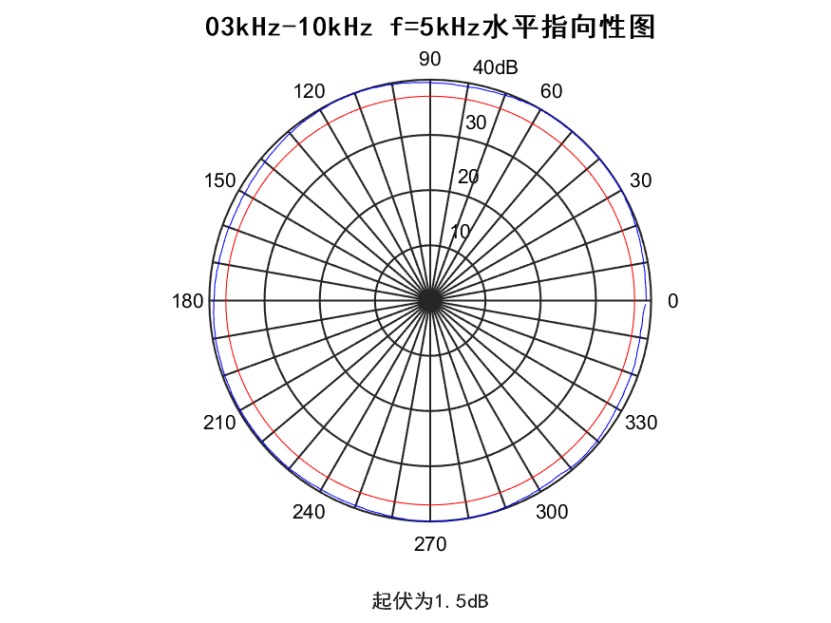

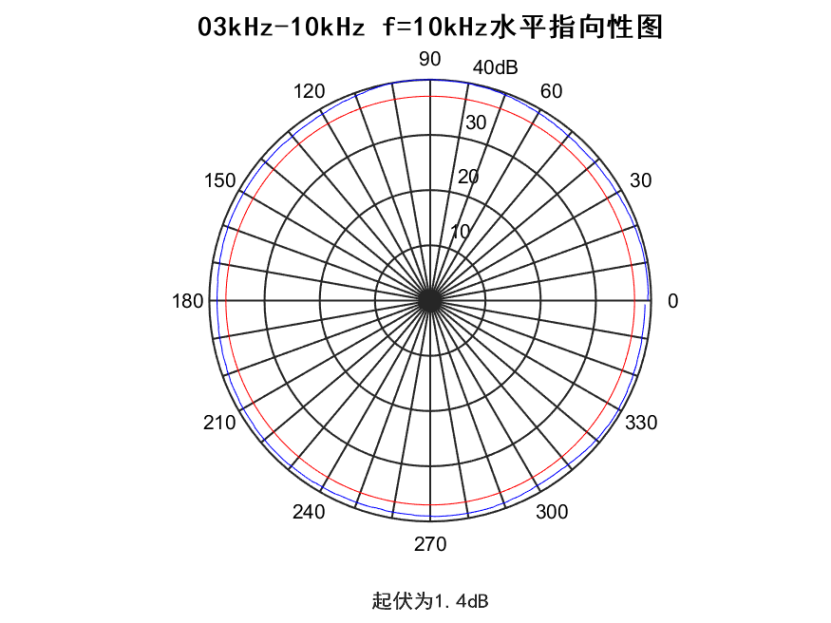

Horizontal directivity

7d76df20-d9df-491b-8c3a-3ea8454a272c

94ec2539-ba69-41b4-acba-00256de25ae0

95724816-a217-458d-848d-10b0c5722cc6

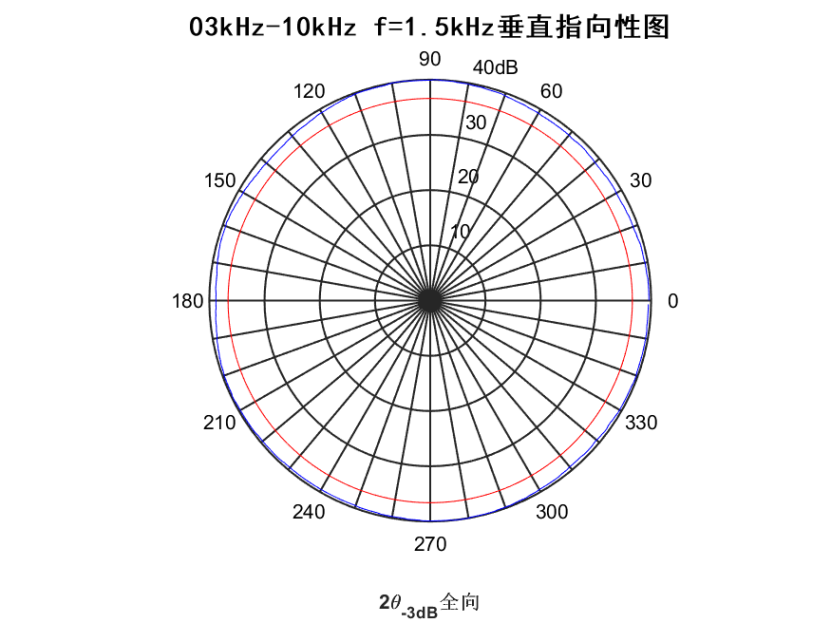

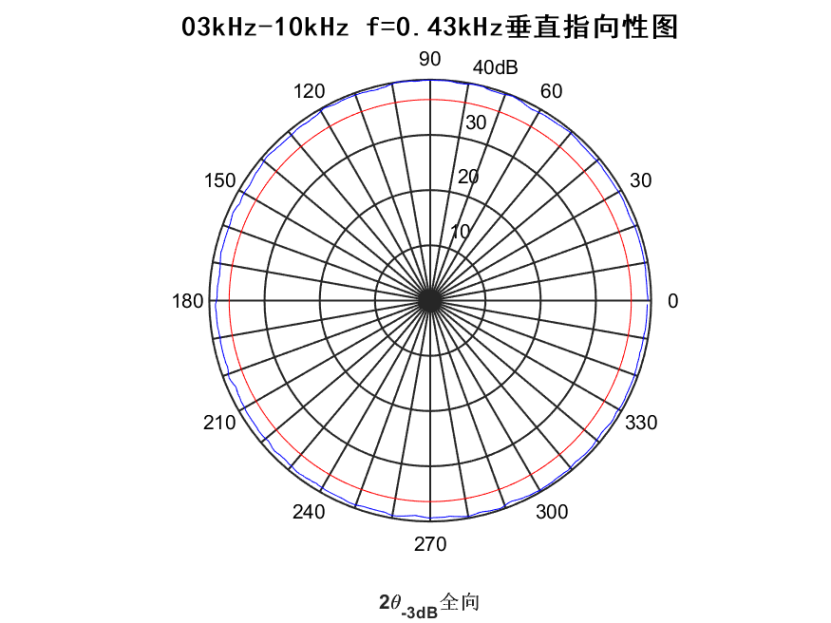

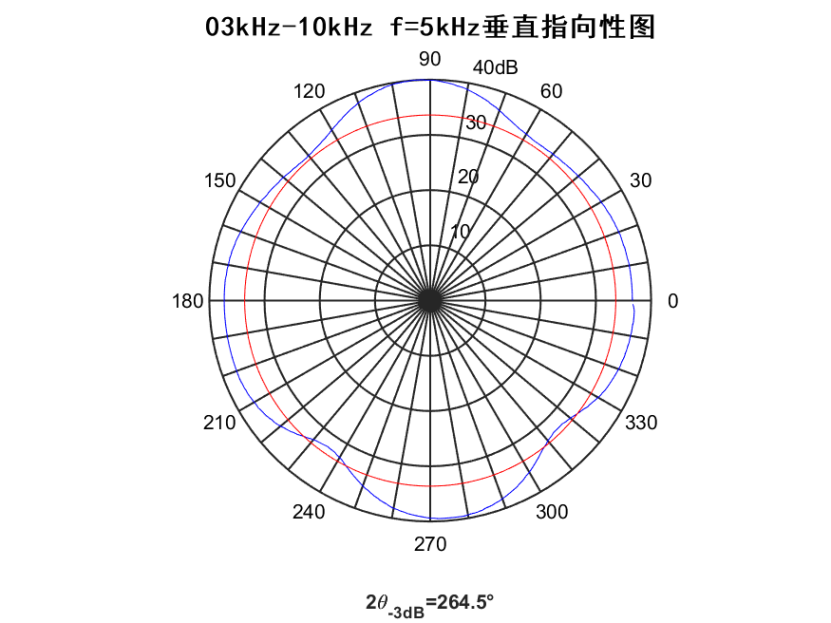

Vertical directivity

9f387fa2-89cb-4f20-a48c-8c2b5c601b50 41e71986-7e8c-41f3-85e1-0ca30fc0ca36 49c6183d-fec7-4b5a-ae24-8947d0c5d7f6

933c5291-ba20-468f-b331-86909b5a25e0

Hydrostatic Pressure Test:

After undergoing hydrostatic pressure tests at 1 MPa/1 hour, 1 MPa/0.25 hour, 1 MPa/1 hour, and 0 MPa/0.25 hour, the transducer's appearance remained intact and normal, and the insulation resistance between the transducer cores was greater than 200 MΩ.

Measurement Results:

All transducers met the technical specifications.
