Designing an underwater acoustic transducer requires balancing sensitivity, depth tolerance, and frequency response. The piezoelectric element acts as the critical point of failure or success. You must get this component right. Omnidirectional arrays, bioacoustics monitoring, and defense applications rely heavily on radial-mode piezoelectric cylinders. They stand as the accepted industry standard for omnidirectional listening. Specifying the wrong material grade or dimension causes rapid depolarization. It also leads to severe signal degradation at depth or dangerous impedance mismatch.
This guide outlines the core engineering evaluation criteria, material trade-offs, and structural considerations required to select the precise piezo tubes for hydrophone deployment. We will explore how dimensions control resonance and why structural configuration dictates pressure limits. You will learn actionable steps to minimize prototyping cycles. By applying these principles, you ensure long-term field reliability for your acoustic systems.
Material choice dictates limits: Soft PZT (e.g., PZT-5A) offers maximum sensitivity for passive listening, while Hard PZT (e.g., PZT-4) provides stability under high hydrostatic pressure and active transmission.
Dimensions control resonance: The outer diameter and wall thickness strictly define the hoop mode resonance and low-frequency capacitance.
Structural configuration matters: The choice between air-backed (end-capped) and free-flooded designs fundamentally shifts the pressure tolerance and acoustic performance of the tube.
Vendor consistency is paramount: Batch-to-batch dielectric and dimensional tolerances are critical for phase-matched hydrophone arrays.
Before selecting components, map your end-use environment carefully. Every Underwater Acoustic Transducer needs application-specific baselines to function correctly. Shallow-water bioacoustics demand entirely different parameters compared to deep-ocean towed arrays. You must define these operational boundaries early in the design phase.
Identify the primary acoustic parameters dictated by the environment. For coastal monitoring, high sensitivity often takes priority over extreme pressure tolerance. In contrast, deep-sea seismic exploration requires components capable of surviving intense static pressure. Establish your baseline requirements before evaluating specific ceramic grades.
Determine your required operating bandwidth. You must map this relative to the radial or hoop resonance frequency of the cylinder. Receivers typically operate in the flat frequency region well below the fundamental resonance. If you select a cylinder with a resonance too close to your target listening band, phase distortion will ruin your signal.
Your deployment depth sets the maximum hydrostatic pressure. This metric directly impacts material depolarization risks. High static pressure also dictates the mechanical stress limits of the cylinder wall. You must calculate the worst-case pressure scenario to prevent catastrophic structural collapse during deployment.
Define your pre-amplifier requirements immediately. The inherent capacitance of the cylinder must drive the entire cable length. If you ignore this integration limit, you risk catastrophic signal loss. Impedance mismatch between the sensor and the electronics will render the highest quality ceramic completely useless.
Material selection defines your functional limits. You must choose between hard and soft piezoelectric ceramics based on deployment depth and active versus passive requirements. Each formulation behaves differently under physical stress.
Soft materials prioritize signal generation. They boast high piezoelectric charge coefficients (d31, d33) and high relative permittivity. These traits make them ideal for high-sensitivity passive listening devices.
Strengths: Exceptional voltage output per unit of acoustic pressure. Excellent for weak signal detection in quiet environments.
Trade-offs: Highly prone to pressure-induced aging. Soft grades depolarize rapidly under extreme hydrostatic pressure. They remain unsuitable for uncompensated deep-sea applications.
Hard materials prioritize stability and durability. They possess a high mechanical quality factor and exceptionally low dielectric loss. They handle high drive voltages easily without overheating.
Strengths: Resists depolarization under intense physical stress. Withstands extreme mechanical loading. Mandatory for deep-submergence air-backed designs or active pingers.
Trade-offs: Lower intrinsic sensitivity compared to soft grades. They require robust amplification when used strictly as receivers.
PVDF polymers provide a niche alternative to ceramic cylinders. They offer better acoustic impedance matching to water, reducing signal reflection. Unfortunately, PVDF yields lower sensitivity. It also presents incredibly difficult structural integration challenges when forming rigid tubular geometries.
Material Type | Common Grades | Primary Strength | Major Limitation | Best Application |
|---|---|---|---|---|
Soft Piezo Ceramic | PZT-5A, PZT-5H | High sensitivity (high g31/d31) | Depolarizes under high pressure | Shallow water receivers |
Hard Piezo Ceramic | PZT-4, PZT-8 | High pressure stability | Lower voltage sensitivity | Deep ocean or active pingers |
Piezo Polymer | PVDF | Acoustic impedance matches water | Hard to shape into rigid tubes | Specialty broadband arrays |

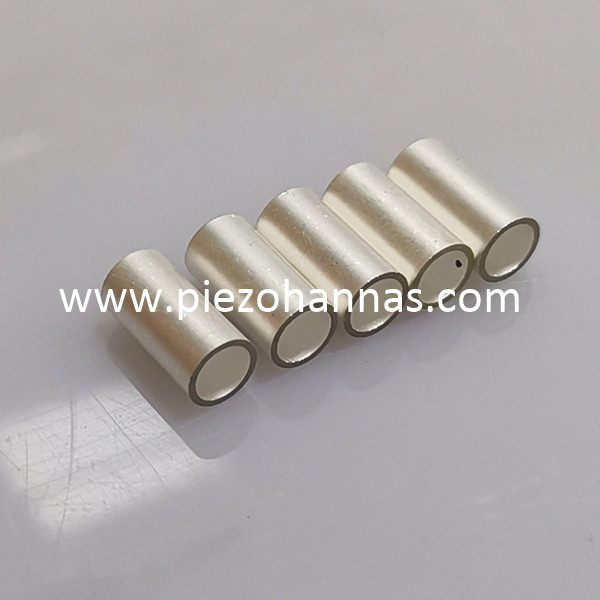

The physical geometry of Piezo Tubes dictates their acoustic performance. You cannot separate dimensional specifications from target frequency outcomes. Understanding this correlation prevents costly iterative design loops.
Outer Diameter (OD) and Resonance: An inverse relationship exists between the mean diameter and the circumferential resonance frequency. Larger tubes inherently produce lower resonance frequencies. If you need to monitor low-frequency seismic events, you must select a larger cylinder. You cannot force a tiny cylinder to resonate optimally at very low frequencies.
Wall Thickness and Sensitivity: Wall thickness directly controls two crucial parameters. Thinner walls yield higher voltage sensitivity (g31) and higher overall capacitance. However, physics demands a trade-off. Thinner walls drastically reduce the mechanical crush depth of the tube. You must calculate the structural safety factor before thinning the wall for better sensitivity.
Length Considerations: Tube length dictates directional characteristics at high frequencies. It also contributes significantly to overall capacitance. Excessive length introduces severe problems. Overly long cylinders generate unwanted longitudinal resonance modes. These secondary vibrational modes overlap with your primary listening band. They create unpredictable peaks and nulls in your frequency response curve.
You must decide how water interacts with the sensor housing. This structural choice fundamentally shifts both pressure tolerance and acoustic behavior. You generally choose between two primary configurations.
This design seals the cylinder using rigid end caps. The internal volume maintains air or inert gas at one atmosphere.
Mechanism: The tube remains sealed against water intrusion. The outer wall takes the full force of hydrostatic pressure.
Outcome: This configuration provides high sensitivity. It delivers a highly predictable low-frequency response because the inner wall remains unconstrained by fluid mass.
Risk: Air-backed tubes remain highly vulnerable to hydrostatic crushing. You require strict wall-thickness-to-diameter ratios based on your maximum deployment depth. A microscopic flaw in the ceramic will cause implosion at extreme depths.
This design allows water to pass freely inside and outside the cylinder. The fluid equalizes static pressure across the ceramic wall.
Mechanism: Water bathes both the inner and outer electrodes. Pressure inside equals pressure outside at all times.
Outcome: This approach grants an effectively infinite depth rating. It completely eliminates mechanical crush risks. You can use very thin walls at extreme depths.
Risk: Free-flooded designs alter the acoustic radiation pattern significantly. They suffer from acoustic short-circuiting between the inner and outer surfaces. Sound waves wrap around the cylinder edges. This phenomenon severely limits low-frequency sensitivity.
Structural Design Trade-off Summary Chart
Configuration | Pressure Equalization | Crush Risk | Acoustic Sensitivity | Low-Frequency Response |
|---|---|---|---|---|
End-Capped (Air-Backed) | No (1 ATM internal) | High (Depth limited) | Maximum | Excellent / Predictable |
Free-Flooded | Yes (Water inside & out) | Zero (Infinite depth) | Reduced | Poor (Acoustic shorting) |
Engineers often overlook integration risks during a Hydrophone build. Theoretical datasheets rarely cover the practical realities of ocean deployment. You must anticipate common integration failures.
Small ceramic cylinders inherently possess low capacitance. Long deployment cables introduce significant parallel capacitance. Failing to account for this cable capacitance results in severe voltage attenuation. The cable acts as a voltage divider. It bleeds away your tiny acoustic signal before it reaches the surface acquisition system. You must design pre-amplifiers close to the sensor to buffer the signal.
Piezoelectric ceramics exhibit a hysteresis effect. They lose a portion of their sensitivity after their very first deep-water pressure cycle. Acknowledge this reality early. You must perform stabilization procedures. Best practice dictates pre-pressurizing components in a hydrostatic test chamber before final calibration. This ensures the sensitivity remains stable during actual field deployments.
Silver or nickel electrodes must withstand harsh chemical and thermal environments. Final assembly often involves polyurethane or neoprene overmolding. This encapsulation process generates significant exothermic heat. Electrodes must survive this thermal curing without delaminating. Delamination alters acoustic impedance and destroys the electrical connection. Always test potting compatibility on sample batches.
Ignoring the heat generated by fast-curing polyurethane resins.
Failing to degas the potting compound, leaving air bubbles on the ceramic surface.
Calibrating the sensor before potting instead of after final encapsulation.
Your supply chain determines array quality. Vendor consistency proves paramount for acoustic arrays. Arrays require strict phase-matching across multiple elements. If your supplier cannot maintain consistency, your beamforming algorithms will fail.
Evaluate suppliers strictly on their tolerance capabilities. You must request statistical process control data for large batches. Demand tight controls. Expect resonance frequency tolerances to remain within ±5%. Capacitance values should hold within ±10%. If a vendor cannot meet these benchmarks consistently, disqualify them.
Look for vendors capable of providing advanced metallization options. Wrapped electrodes allow both positive and negative connections on the outer diameter. Striped configurations and custom soldering tabs simplify manual assembly. These features reduce assembly time and eliminate heat-damage risks caused by excessive soldering.
Reputable manufacturers adhere to guidelines akin to the IEEE Standard on Piezoelectricity. Shortlist partners who provide comprehensive documentation. Do not accept purely theoretical datasheets. Demand actual impedance plots generated by precision analyzers. Request real capacitance measurements for your specific batch. Pre-shipping polarization verification proves batch reliability. Ensure they test the specific geometry you ordered, not just a generic material blank.
Selecting piezoelectric cylinders represents a rigorous balancing act. You constantly weigh acoustic sensitivity against mechanical survivability. Thinner walls and soft materials boost signal output but invite catastrophic crushing at depth. Hard materials and free-flooded designs guarantee survival but demand superior amplification downstream.
Advise your engineering teams to finalize their depth, frequency, and capacitance targets thoroughly. Lock these parameters down before requesting custom prototypes. Encourage a phased purchasing strategy. Order small batches initially. Use these early units strictly for potting validation and pre-amplifier integration testing. Taking this measured approach minimizes expensive redesigns and ensures your final acoustic array performs flawlessly in the field.
A: These terms describe different vibrational modes based on dimensions. Radial or hoop resonance occurs when the cylinder expands and contracts circumferentially. Longitudinal resonance involves expansion along the tube's length. Thickness resonance relates to vibrations across the wall. Receivers typically operate well below radial resonance to maintain a flat frequency response.
A: Yes, but only under specific structural conditions. PZT-5H is a soft material. It depolarizes under extreme hydrostatic pressure. You cannot use an air-backed design at extreme depths with PZT-5H. You must use a pressure-compensated or free-flooded design to equalize pressure. Otherwise, select a hard material like PZT-4.
A: Potting materials like polyurethane act as acoustic windows. They must match the acoustic impedance of water closely to minimize signal reflection. Encapsulation also creates a mechanical dampening effect on the ceramic element. This dampening lowers the mechanical quality factor and slightly shifts the resonance frequency. Always calibrate after potting.
