PT1000K19
Piezohannas
PT1000K19
Stock OD24.2*ID18.8*15mm Piezo Tubes Piezo Ceramics Transducer
WuHan Piezohannas Tech.Co .,Ltd is a manufactuer of piezoelectric ceramics ,ultrasonic transducers and some other ultrasonic deivce with strong technology force.With a quality management system and research & development sector,our products are extensively used in most applications.
Piezo Ceramics Tube Description:
Material : PZT4
Dimensions: OD24.2*ID18.8*15mm

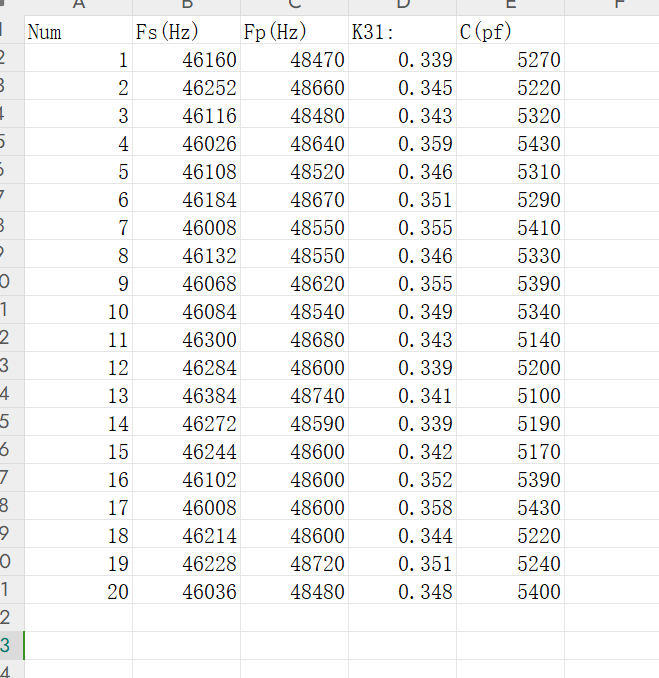

Fs(Hz):46160
Fp(Hz):48470
Static capacitance Cs: 5270pF
Diameter: 5.0 - 100mm
Wall thickness: 1 - 10mm
Height: 2.5 - 50mm
Applications Image of Underwater Sound Transducer :
Stock OD24.2*ID18.8*15mm Piezo Tubes Piezo Ceramics Transducer
WuHan Piezohannas Tech.Co .,Ltd is a manufactuer of piezoelectric ceramics ,ultrasonic transducers and some other ultrasonic deivce with strong technology force.With a quality management system and research & development sector,our products are extensively used in most applications.
Piezo Ceramics Tube Description:
Material : PZT4
Dimensions: OD24.2*ID18.8*15mm
Fs(Hz):46160
Fp(Hz):48470
Static capacitance Cs: 5270pF
Diameter: 5.0 - 100mm
Wall thickness: 1 - 10mm
Height: 2.5 - 50mm
Applications Image of Underwater Sound Transducer :
