200KHz ultrasonic 1.5 M distance measuring transducer sensor

200KHz |8° |0.10～1.5m| used for ultrasonic distance sensor,Ultrasonic level gauge,Monitoring,Crashproof,
Security,ultrasonic range finder,ultrasonic sensor for non-contact detect objects,etc.

About ultrasonic distance transducer, we can offer 14Khz 22Khz 40Khz 50Khz 75Khz 80Khz 125Khz 200Khz 300Khz 400Khz as for resonant frequency, Also we can accpet customization.

Availability:

Quantity:



Inquire Add to Basket

Model:
PHA-200-01H
Brand:
Piezohannas
Code:
PHA-200-01H

Product Description

200KHz ultrasonic transducer for 1.5M distance measurement

Items	Technical Parameters		Image
Name	200KHz Ultrasonic transducer		$@3HVY}99([Z`50_{(66J]0S$
Model	PHA-200-01H
Frequency	200KHz±5%
Detection Distance	0.10～1.5m
Minimum Parallel lmpedance	2000Ω±20％
Capacitance	400pF±20％ @1KHz
Sensitivity	Driving Voltage：800Vpp，Distance:0.3m， Echo Amplitude：3mV
Operating Voltage	Peak Voltage＜1000 VPP
Operating Temperature	-40～+80℃
Pressure	16Kilos or 1.6MPa
Angle	(Beamwidth) Half-power Beam Width@-3dB:8°±2， Sharp Angle:20°±4
Housing Material	titanium alloy
Usage	ultrasonic gas flowmeter
Installation Dimension	IP68
Protection Level	30g±5％（ Length：20cm）
Weight	Integrated interface：Red+，White-，Black: shielded wire （ default : without temperature sensor）

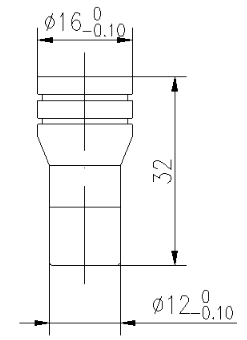

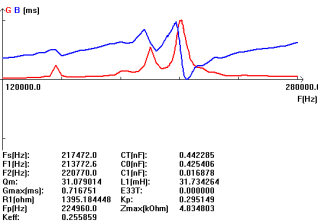

Admittance Curve		Product Structure Diagram
