PH14F145
Piezohannas
PH14F145
14KHz Long Range Distance Measuring Transducer Sensor for 45 Meters
Introduction:
PH14F145 ultrasonic sensor has the functions of transmitter and receiver. It’s a long range type, generally can be used for ultrasonic range finder, ultrasonic sensor for non-contact detect objects, ultrasonic distance sensor, ultrasonic liquid level sensor, etc. If you have any questions for other applications, please contact us for details.
Technical parameters：
Model | PH14F145 |
Center resonant frequency (kHz) | 14KHz±2.0Khz |
Bandwidth | 1.5Khz |
Detection distance | 1.0~45m |
Blind spots | <1.0m |
Launch angle beam (-6dB full angle) | 15±2° |
Sensitive | -55dB min |
Electrostatic capacitance | 8000PF±20% |
Minimum parallel impedance | 280Ω±30% |
Maximum working voltage (Pulse - 2% duty cycle) | 4000Vp-p |
Operating temperature | -20 ~70℃ |
Storage temperature | -40 ~85℃ |
Protection level | IP65 |
Size (diameter * height, mm) | φ140x235 |
Installation | Fixed with screw |
Case Material | PVC |
Cable length | 3 M (can be customized) |
Weight | 2.5kg |
Photo:
Outline Dimension：
![F169G1%4J_WI)]OT`HZ4({X](http://5krorwxhlkpmrik.leadongcdn.com/cloud/lkBqnKjlRioSmkoqqmip/F169G1J_WI-OT-HZ4-X.png)

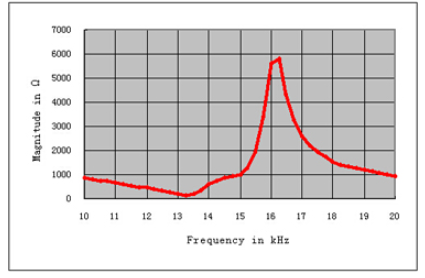

Frequency-Resistance Curve：

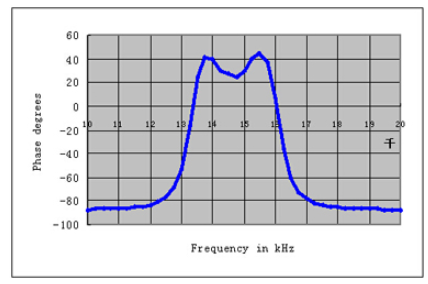

Frequency-Phase Angle Curve：

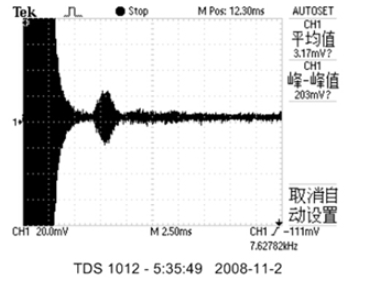

Sensitivity Test:
Transmitting voltage: 400Vp-p; period: 50; distance: 1.5M
![FS4Z7VW`T[JFYT{EIQ$]H@U](http://5krorwxhlkpmrik.leadongcdn.com/cloud/lmBqnKjlRioSmkqqirio/FS4Z7VW-T-JFYT-EIQ-H-U.png)

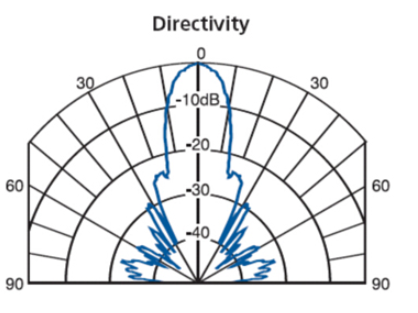

Directivity Curve：
Features of ultrasonic sensors:
1.Small size and light-weight
2. High sensitivity and high sound pressure
3.Low power consumption
4.High reliability
Characteristic:
1.Firm semblance seal (PVC outer covering)
2.Convenience thread installment (G1”)
Application:
1.Position Location
2.Approach measurement
3.Traffic Measurement
4.Avoiding Obstacles
14KHz Long Range Distance Measuring Transducer Sensor for 45 Meters
Introduction:
PH14F145 ultrasonic sensor has the functions of transmitter and receiver. It’s a long range type, generally can be used for ultrasonic range finder, ultrasonic sensor for non-contact detect objects, ultrasonic distance sensor, ultrasonic liquid level sensor, etc. If you have any questions for other applications, please contact us for details.
Technical parameters：
Model | PH14F145 |
Center resonant frequency (kHz) | 14KHz±2.0Khz |
Bandwidth | 1.5Khz |
Detection distance | 1.0~45m |
Blind spots | <1.0m |
Launch angle beam (-6dB full angle) | 15±2° |
Sensitive | -55dB min |
Electrostatic capacitance | 8000PF±20% |
Minimum parallel impedance | 280Ω±30% |
Maximum working voltage (Pulse - 2% duty cycle) | 4000Vp-p |
Operating temperature | -20 ~70℃ |
Storage temperature | -40 ~85℃ |
Protection level | IP65 |
Size (diameter * height, mm) | φ140x235 |
Installation | Fixed with screw |
Case Material | PVC |
Cable length | 3 M (can be customized) |
Weight | 2.5kg |
Photo:
Outline Dimension：
Frequency-Resistance Curve：
Frequency-Phase Angle Curve：
Sensitivity Test:
Transmitting voltage: 400Vp-p; period: 50; distance: 1.5M
Directivity Curve：
Features of ultrasonic sensors:
1.Small size and light-weight
2. High sensitivity and high sound pressure
3.Low power consumption
4.High reliability
Characteristic:
1.Firm semblance seal (PVC outer covering)
2.Convenience thread installment (G1”)
Application:
1.Position Location
2.Approach measurement
3.Traffic Measurement
4.Avoiding Obstacles
