Piezoelectric ceramics have revolutionized various technological fields with their unique ability to convert mechanical energy into electrical energy and vice versa. These materials are at the heart of countless devices, from simple household appliances to sophisticated medical equipment. Understanding piezoelectric ceramics is essential for advancing innovation in electronics, materials science, and engineering. This article delves into the fundamental principles, material properties, manufacturing processes, and diverse applications of piezoelectric ceramics, providing a comprehensive overview for researchers and professionals alike.
Piezoelectricity, derived from the Greek word "piezein," meaning to press or squeeze, refers to the electric charge that accumulates in certain solid materials in response to applied mechanical stress. Conversely, these materials can deform mechanically when an electric field is applied, a phenomenon known as the inverse piezoelectric effect. The underlying mechanism involves the displacement of ions within a crystal lattice, leading to polarization and the generation of an electric potential.
The piezoelectric effect is intrinsically linked to the crystal structure of materials. Only crystals lacking a center of symmetry exhibit piezoelectric properties. In these non-centrosymmetric crystals, mechanical stress can alter the distribution of electric charges, resulting in polarization. Common crystal classes displaying piezoelectricity include wurtzite structures like zinc oxide and gallium nitride, as well as perovskite structures such as lead zirconate titanate (PZT).
Mathematically, piezoelectricity is described by coupling equations that relate mechanical strain and stress to electric field and electric displacement. The fundamental equations involve tensors that represent the piezoelectric constants, which are material-specific parameters quantifying the piezoelectric response. These equations are critical for designing devices that utilize the piezoelectric effect, enabling precise predictions of material behavior under various electrical and mechanical conditions.
The development of piezoelectric ceramics has expanded the range of materials exhibiting piezoelectricity beyond natural crystals. These engineered materials are essential for practical applications due to their enhanced properties and ease of fabrication.
PZT is the most widely used piezoelectric ceramic, renowned for its high piezoelectric coefficients and versatility. By varying the ratios of lead zirconate and lead titanate, manufacturers can tailor the material's properties to suit specific applications. PZT ceramics are essential in actuators, sensors, and transducers due to their strong piezoelectric response and high Curie temperature.
Barium titanate (BaTiO3) was one of the first discovered piezoelectric ceramics and remains significant in certain applications. Other ferroelectric ceramics, such as potassium niobate (KNbO3) and sodium potassium niobate ((K,Na)NbO3), are explored for their lead-free characteristics, addressing environmental concerns associated with lead-based materials. These alternatives are crucial for developing sustainable piezoelectric devices.
The fabrication of piezoelectric ceramics involves several critical steps to achieve the desired material properties and performance. Advanced manufacturing techniques ensure consistency, quality, and functionality in industrial applications.
The initial stage involves synthesizing fine ceramic powders with precise chemical compositions. Solid-state reaction methods are commonly employed, where raw materials are mixed, calcined, and ground to achieve homogeneity. The powders are then pressed into desired shapes and sintered at high temperatures to form dense ceramic bodies. Sintering parameters significantly affect the microstructure and, consequently, the piezoelectric properties of the ceramics.
Post-sintering, the ceramics do not exhibit piezoelectricity inherently due to random orientation of ferroelectric domains. The poling process aligns these domains by applying a strong electric field at elevated temperatures. This alignment induces a net polarization, enabling the piezoelectric effect. Controlling the poling conditions, such as field strength and temperature, is crucial for optimizing material performance.
Understanding the properties of piezoelectric ceramics is essential for designing and optimizing devices. Key properties include piezoelectric coefficients, dielectric constants, mechanical strength, and temperature stability.
Piezoelectric coefficients, such as d33 and d31, quantify the material's ability to convert mechanical stress into electrical charge and vice versa. High coefficients indicate strong piezoelectric responses, which are desirable for sensitive sensors and efficient actuators. These coefficients depend on material composition, microstructure, and poling conditions.
Dielectric properties, including permittivity and dielectric loss, influence the material's electrical performance. A high dielectric constant allows for efficient energy storage and transfer, essential for capacitors and transducers. Low dielectric loss minimizes energy dissipation, improving the efficiency of piezoelectric devices.
Mechanical properties determine the durability and operational limits of piezoelectric ceramics. Materials must withstand mechanical stresses without degradation of their piezoelectric properties. Fatigue behavior under cyclic loading is particularly important for longevity in applications such as actuators and sensors subjected to repetitive motions.
Piezoelectric ceramics are integral to a multitude of applications due to their ability to interact with mechanical and electrical energy. From everyday consumer electronics to advanced industrial systems, their versatility is unmatched.
In sensor applications, piezoelectric ceramics detect pressure, acceleration, strain, and force by converting mechanical signals into electrical outputs. They are crucial in devices like accelerometers, pressure sensors, and ultrasonic transducers. As actuators, these materials convert electrical signals into precise mechanical movements, enabling applications in precision positioning systems, inkjet printers, and optical devices.

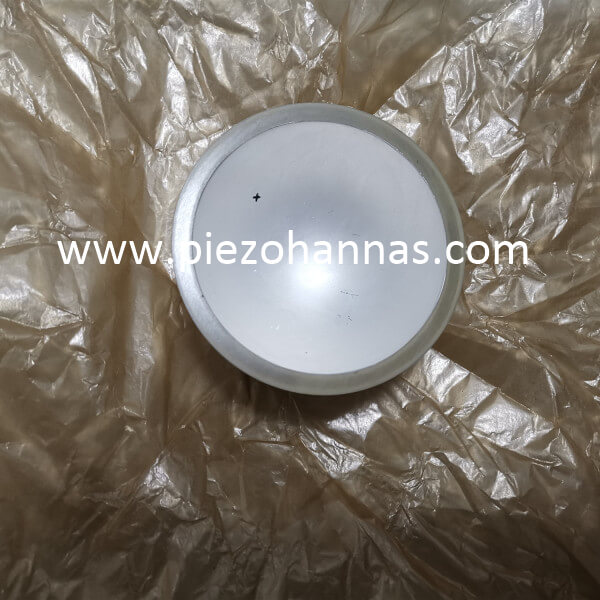

Ultrasonic transducers utilize piezoelectric ceramics to generate and detect ultrasonic waves. These transducers are essential in medical imaging equipment, such as ultrasound machines, providing non-invasive diagnostic capabilities. In industrial settings, they are used for nondestructive testing to detect flaws in materials and structures.
Piezoelectric ceramics can harvest mechanical energy from vibrations, motion, or pressure fluctuations, converting it into electrical energy. This energy harvesting is applied in powering wireless sensors, wearable electronics, and other low-power devices, contributing to the development of self-sustaining systems and the Internet of Things (IoT).
These materials are used in microphones, speakers, and buzzers due to their capability to convert electrical signals into sound waves and vice versa. Piezoelectric buzzers are common in electronic devices as sound indicators, benefiting from their low power consumption and compact size.
While piezoelectric ceramics offer numerous benefits, they also present certain challenges that must be addressed to optimize their use in various applications.
High Sensitivity: They exhibit strong responses to mechanical and electrical stimuli.
Fast Response Time: Ideal for applications requiring rapid actuation or detection.
Compact Size: Enables miniaturization of devices without compromising performance.
Energy Efficiency: Low power consumption makes them suitable for portable and battery-powered devices.
Fragility: Ceramic materials can be brittle and susceptible to cracking under high stress.
Temperature Sensitivity: Performance may degrade at extreme temperatures, limiting operational environments.
Depolarization: Exposure to high temperatures or electric fields can lead to loss of polarization and diminished piezoelectric properties.
Environmental Concerns: Lead-based ceramics pose health and environmental risks, necessitating the development of lead-free alternatives.
Continuous research is expanding the capabilities and applications of piezoelectric ceramics. Innovations focus on material development, fabrication techniques, and integration with other technologies.
Environmental regulations drive the search for lead-free piezoelectric ceramics. Materials like sodium potassium niobate (KNN) and bismuth ferrite (BiFeO3) are promising candidates. These materials aim to match or surpass the performance of traditional lead-based ceramics while eliminating toxic elements.
Nano-engineering of piezoelectric ceramics enhances their properties and enables new applications. Nanostructuring can improve mechanical flexibility, increase surface area, and modify electrical characteristics. This advancement is critical for flexible electronics, sensors, and energy harvesting devices.
Combining piezoelectric ceramics with polymers or other materials results in composites with tailored properties. These composites offer mechanical flexibility and can be designed to fit specific application requirements. They are especially valuable in biomedical devices and wearable technology.
In the medical field, piezoelectric ceramics contribute significantly to diagnostics, treatment, and patient care.

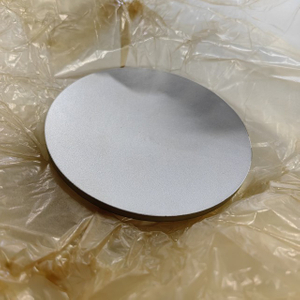

Piezoelectric transducers are the core of ultrasound imaging devices. They generate ultrasonic waves that penetrate the body and reflect off tissues. The returning echoes are converted back into electrical signals to form diagnostic images, aiding in monitoring fetal development, detecting tumors, and guiding surgical procedures.
Advanced surgical tools utilize piezoelectric actuators for precision control. Ultrasonic scalpels, for example, vibrate at high frequencies to cut tissue with minimal damage, improving surgical outcomes and reducing recovery times.
Research into biocompatible piezoelectric materials aims to develop implantable devices for monitoring and stimulating biological systems. Potential applications include pacemakers powered by the body's movements and sensors for real-time health monitoring, enhancing patient comfort and device longevity.
The future of piezoelectric ceramics is vibrant with possibilities, driven by ongoing research and the evolving needs of technology. Integration with emerging fields like nanotechnology, biotechnology, and renewable energy will expand their applications.
Piezoelectric ceramics will play a pivotal role in developing smart materials that can adapt to environmental changes. Applications in adaptive optics, vibration control, and structural health monitoring are areas of significant interest, contributing to safety and efficiency in aerospace, civil engineering, and automotive industries.
Energy-harvesting capabilities of piezoelectric ceramics are crucial for powering wireless sensor networks. These networks are essential for IoT applications, enabling data collection and communication without the need for external power sources, thus facilitating remote monitoring and automation.
Piezoelectric ceramics are indispensable in modern technology, offering unique solutions across various industries. Their ability to interconvert mechanical and electrical energy underpins innovations in sensing, actuation, and energy harvesting. Continued research and development are expanding their capabilities, addressing environmental concerns, and unlocking new applications. A profound understanding of piezoelectric ceramics is essential for scientists and engineers striving to advance technology and improve quality of life.
Piezoelectricity in ceramics arises from the displacement of ions within their non-centrosymmetric crystal lattices when mechanical stress is applied. This displacement leads to polarization and the generation of an electric potential. Conversely, applying an electric field causes mechanical deformation due to the inverse piezoelectric effect.
PZT is favored due to its high piezoelectric coefficients, versatility, and ability to be tailored for specific applications by adjusting its composition. Its strong piezoelectric response and high Curie temperature make it suitable for a wide range of devices, including sensors, actuators, and transducers.
The primary environmental concern is the use of lead in traditional piezoelectric ceramics like PZT. Lead poses health and environmental risks during manufacturing and disposal. Consequently, there is significant research into developing lead-free piezoelectric materials, such as potassium sodium niobate, to mitigate these issues.
Poling aligns the ferroelectric domains within the ceramic by applying a strong electric field at elevated temperatures. This alignment induces a net polarization, enabling the material to exhibit piezoelectric properties. The poling process is crucial for activating the piezoelectric effect in ceramics post-manufacturing.
In medical technology, piezoelectric ceramics are essential in ultrasound imaging equipment, providing non-invasive diagnostic capabilities. They are also used in precision surgical instruments like ultrasonic scalpels and are being researched for implantable devices that monitor or stimulate biological functions.
Hard piezoelectric ceramics are doped to withstand high mechanical stress and have lower dielectric losses, making them suitable for high-power applications. Soft piezoelectric ceramics have higher piezoelectric coefficients and higher dielectric constants but are more susceptible to depolarization, making them ideal for sensors and low-power applications.
Piezoelectric ceramics convert ambient mechanical energy, such as vibrations or pressure changes, into electrical energy. This capability is harnessed in energy harvesting devices to power wireless sensors, wearable electronics, and other low-power systems, contributing to the development of self-sustaining and maintenance-free technologies.
