PD-15-D50D

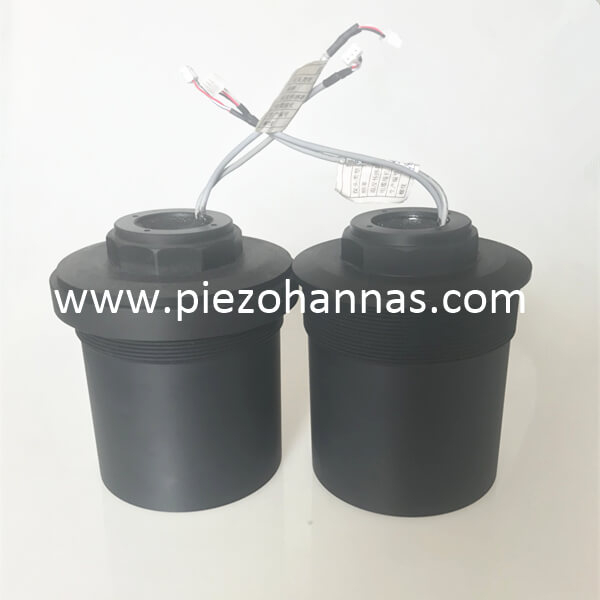

long range 50M distance transducer
 Name1 |  Name2 |  Name3 |
Items | Technical Parameters |
Name | Ultrasonic transducer Type D– Long distance measurement 50 meters (Integrated Type) |
Model | PD-15-D50D |
Frequency | 16KHz±1.5KHz |
Detection Distance | 1.8～50m |
Minimum Parallel lmpedance | 1500Ω±20％ |
Capacitance | 12000pF±20％ @1KHz |
Sensitivity | Driving Voltage：520Vpp，Distance:0.6m， Echo Amplitude:1100mV |
Operating Voltage | Peak Voltage＜1500VPP |
Operating Temperature | -40～+80℃ |
Pressure | ≤3Kilos or 0.3MPa |
Angle | (Beamwidth)Half-power Beam Width @-3dB：12°±2； Sharp Angle：28°±4； |
Housing Material | Under the environment of weak acid and weak base（POM） |
Usage | Ultrasonic level gauge,Monitoring,Crashproof,Security
|
Installation Dimension | the bottom of screw thread M108×2 |
Protection Level | IP68 |
Weight | 2000g±5％ |
Admittance Curve | Product Structure Diagram |
 |  |
Application:
1.Position Location
2.Approach measurement
3.Traffic Measurement
4.Avoiding Obstacles
