Ultrasonic Transducer 5M Distance for Ultrasonic level meters

64KHz |8° |0.3~5m| used for Ultrasonic level gauge,Monitoring,Crashproof,
Security

Quantity:
  • PHA-64-05I
  • Piezohannas
  • PHA-64-05I

      Ultrasonic Transducer 5M Distance for Ultrasonic level meters



Technical parameters:


Items

Technical Parameters


Name

64KHz ultrasonic transducer I type



}55J0E1ZLH}5_H{CAE)]22I

Model

PHA-64-05I

Frequency

64KHz±5%

Detection Distance

0.35m

Minimum

Parallel lmpedance

800Ω±20

Capacitance

1000pF±20@1KHz



Sensitivity

Driving Voltage:800Vpp,Distance:0.6m,

Echo Amplitude:200mV

Operating

Voltage

Peak Voltage1500VPP

Operating

Temperature

-40+80℃

Pressure

≤3Kilos or 0.3MPa



Angle

(Beamwidth) Half-power Beam Width@-3dB:8°±2,

Sharp Angle:19°±4

Housing Material

POM



Usage

ultrasonic transducer

Installation

Dimension

M38*1.5

Protection Level

IP68

Weight

70g±5

Wiring Instructions

integrated type:connector(3PIN,2.54mm terminal ):Red+,White-,Black: shielded wire;



Admittance Curve

Product Structure Diagram



EZW3)FVHO(2`%R@9AL%AC7

  QTA7ZJJVACMD9QUCQ13AW4K



 Test Circuit Schematic of Transducer:


20GT7)ETXN3}I3PI2@BY

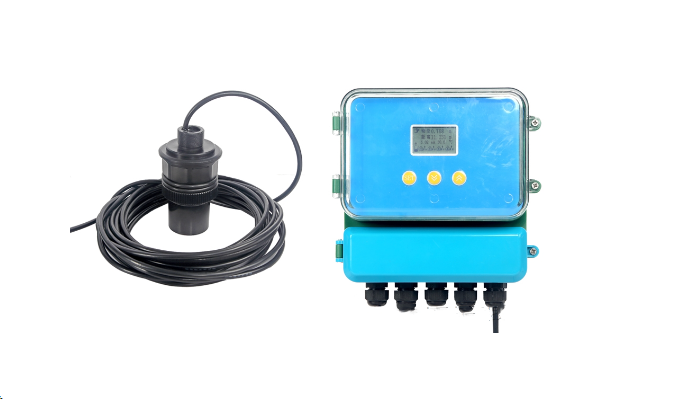

Ultrasonic Level Meters Application:



The ultrasonic level meter is used to continuously monitor level channels in the height of liquid media, sludge or suspensions in both open and closed tanks and channels. The gauge generates the level-height information in the form of a signal current 4 to 20mA. The lower and upper limits of the measurement range can be set by potentiometers in the electronic unit of the gauge.
