Titanium Housed Transducer for Gas Ultrasonic Flow Meter
Parameters:
Items | Technical Parameters | Image | |
Name | 200KHz ultrasonic transducer |
| |
Model | PHA-200-01X | ||
Explosive gas atmospheres | Work normally | ||
Active zone diameter | 15 mm | ||
Frequency
| 200KHz±5% | ||
Recommended range | 0.10～1.5m | ||
Minimum Parallel lmpedance | 360Ω±20％ | ||
Capacitance | 500pF±20％ @1KHz | ||
Sensitivity | Driving Voltage：800Vpp，Distance:0.6m， Echo Amplitude：40mV | ||
Operating voltage | Peak Voltage＜1000 VPP | ||
Operating Temperature | -40～+80℃ | ||
Pressure | 16Kilos or 1.6MPa | ||
Usage | (Beamwidth) Half-power Beam Width@-3dB:7°±2， Sharp Angle:18°±4 | ||
Housing Material | titanium alloy | ||
Application | Ultrasonic Gas Flow Meter | ||
Installation Dimension | customized according to customer’s requirements | ||
Protection Level | IP68 | ||
Weight | 20g±5％（ Length：20cm） | ||
Wiring Instructions | Integrated interface：Red+，White-，Black: shielded wire （temperature sensor is optional）
| ||
Admittance Curve | Product Structure Diagram | ||
|
| ||
Block diagram of ultrasonic transducer :
Schematic Diagram of Temperature Sensor:
Ultrasonic Gas Flow Meters Application:
A titanium-housed transducer, for the company’s gas ultrasonic flow-meter product line, marks the first use of metal 3D printing to enhance the acoustic performance of these types of devices in custody-transfer applications. The robust design is said to increase reliability, uptime, and safety while achieving the highest accuracy class attainable in gas measurement.The meter’s all-metal housing provides a barrier from corrosive hydrocarbon fluids and wet gas, thereby extending the life of transducer components and ensuring stable performance. This unique design allows the meter to be hydrotested with transducers in place, steam cleaned while in the operating line and blown down with no limits on the rate at which the meter can be depressurized.

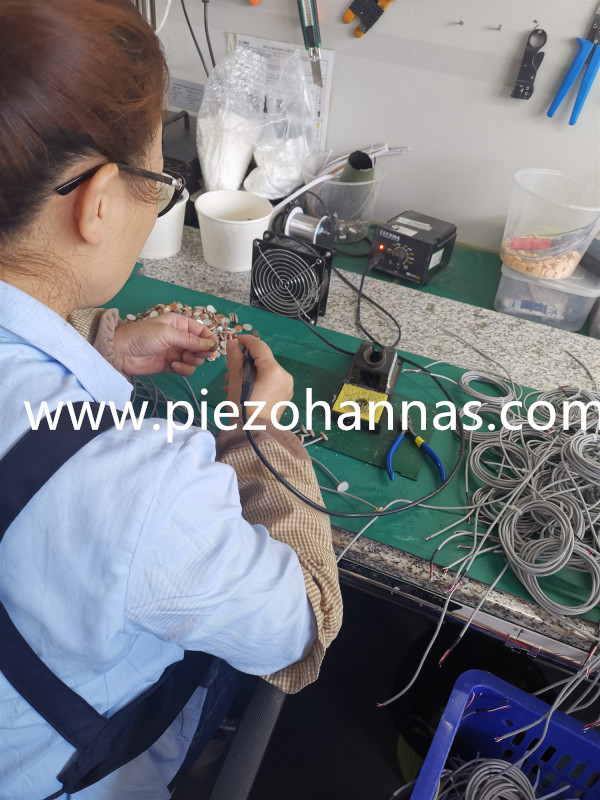

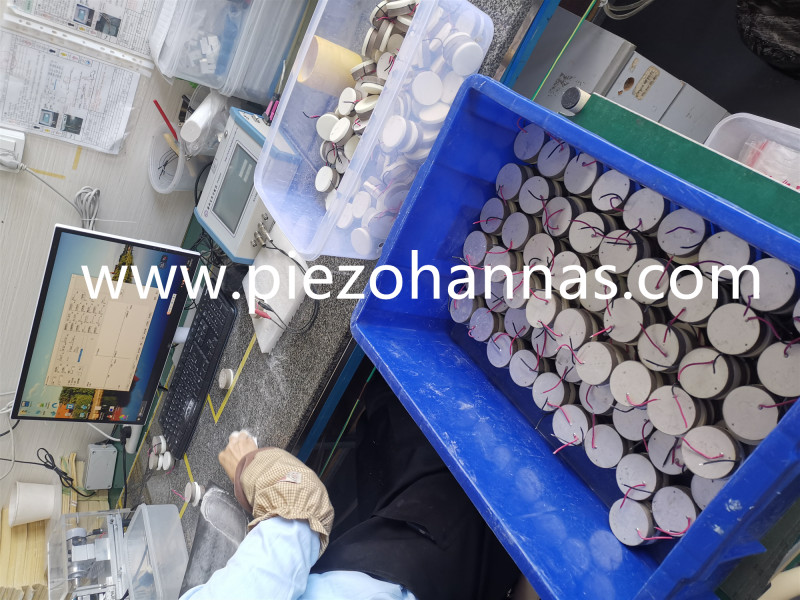

Production Line Image:
