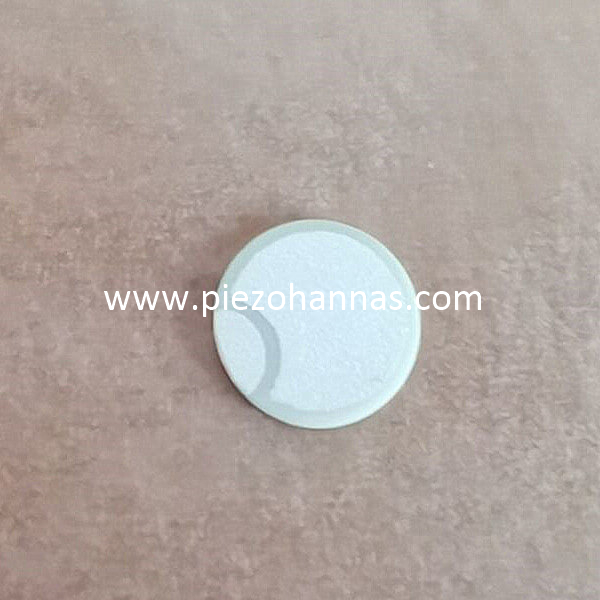

P5 Material Piezoelectric Ceramic Disc for Ultrasonic Flow Rate Measurement

- Dimensions: Φ14.6× 2mm
-Electrode: electrodes on the same side (customizable )

Thickness frequency: Fst=1MHz ± 5%
Static capacitance: CT=1620pF±12.5%
Inductive loss: tanδ=max.2.0%
Electromechanical coupling coefficient: Kp≥0.60
Test environment: at 25 ° C ± 5 ° C, 60% R.H
Test conditions: at 1KHz, 1Vrms

Application: ultrasonic flow rate measurement

Quantity:
  • PZ1000K0093
  • Piezohannas
  • PZ1000K0093

P5 Material Piezoelectric Ceramic Disc for Ultrasonic Flow Rate Measurement



WuHan Piezohannas Tech.Co .,Ltd is a manufactuer of piezoelectric ceramics ,ultrasonic transducers with strong technology force.With a quality management system and research & development sector,our products are extensively used in most applications.



piezoelectric ceramic disc buy



piezoelectric disc piezo transducers



31AFB9AEF0A775B05FBF843CEB753E4E.jpg piezoelectric disc


Piezo Ceramics Disc Description:



- Dimensions: Φ14.6× 2mm
- Electrode: electrodes on the same side (customizable )


Thickness frequency: Fst=1MHz ± 5%
Static capacitance: CT=1620pF±12.5%
Inductive loss: tanδ=max.2.0%
Electromechanical coupling coefficient: Kp≥0.60
Test environment: at 25 ° C ± 5 ° C, 60% R.H
Test conditions: at 1KHz, 1Vrms


Application: Ultrasonic Fowmeter,Gas Fowmeter


Dimensions for Ultrasound Flowmeter in stock:

PZT-51-1MHz OD14.2x 2mm
PZT-51-1MHz OD14.6x 2mm
PZT-51-1MHz OD15x 2mm
PZT-51-2MHz  OD15x 1mm
PZT-51-1MHz OD20x 2mm
PZT-51-2MHz OD20x 1mm
PZT-51-1MHz OD15x 2mm
PZT-51-2MHz OD15x 1mm
PZT-51-1MHz OD20x 2mm

PZT-51-2MHz  OD20x 1mm

Ultrasonic Flow Rate Measurement Applications:


ultrasonic flow rate measurement a distinction is made between two different measuring principles: the Doppler effect and the analysis of the traveling wave time. In both cases a piezo-ceramic transducer positioned on the tube wall generates ultrasonic waves, which are then transmitted into the liquid diagonally to the direction of flow. The Doppler evaluates the frequency shift of the ultrasonic waves, which are reflected by stray particles in the liquid. The greater the flow speed of the liquid, the greater the frequency shift between the radiated and the reflected wave front. Only one piezo transducer sending and receiving at different times is needed for this measuring method. The traveling wave time principle always employs two piezo-ceramic transducers positioned offset to the direction of flow. They send or receive alternately pulse-shaped ultrasonic wave packages against the direction of flow and in the direction of flow. In each case there is a superimposition of sound propagation speed and flow speed. The flow speed is then proportional to the reciprocal value of the propagation time difference in and opposite to the direction of flow. The advantage of this measuring method is that the measurement is independent of the sound propagation speed and therefore also the medium. This enables the measurement of both liquids and gases.


Standard Size of Piezo Discs:


range of piezo disc to produce:

Diameter: 2mm-120mm
Thickness:0.1mm-30mm



PZT Material:




"Soft" PZT materials

The type of soft material

Properties



PSnN-5

PLiS-51

PZT-51

PZT-52

PZT-53

PZT-5H

PZT-5X

Dielectric Constant

ɛTr3


1600

2000

2200

2400

2600

3200

4500

Coupling factor

KP


0.6

0.62

0.62

0.63

0.64

0.68

0.7


K31


0.35

0.35

0.35

0.35

0.36

0.38

0.4


K33


0.68

0.7

0.68

0.7

0.7

0.76

0.77


Kt


0.5

0.52

0.5

0.5

0.5

0.52

0.53

Piezoelectric coefficient

d31

10-12m/v

-170

-197

-186

-204

-227

-275

-300


d33

10-12m/v

400

450

500

520

550

620

750


g31

10-3vm/n

-12

-11.1

-9.6

-9.8

-9.9

-9.7

-7.5


g33

10-3vm/n

28

25.4

25.6

24.5

23.9

22

18.8

Frequency coefficients

Np


2000

1920

1980

1980

1960

1900

1960


N1


1466

1407

1451

1451

1437

1393

1437


N3


1825

1925

1900

1900

1755

1550

1800


Nt


2100

2100

2150

2150

2150

2100

2200

Elastic compliance coefficient

Se11

10-12m2/n

16.6

18

16.7

17

17.4

18

19

Machanical quality factor

Qm


85

80

80

75

75

70

65











Dielectric loss factor

Tg δ

%

2

2

2

2

2

2

2

Density

ρ

g/cm3

7.5

7.5

7.6

7.6

7.6

7.5

7.5

Curie Temperature

Tc

°C

350

345

270

270

270

230

165

Young's modulus

YE11

<109N/m2

60

56

60

59

57.5

56

53

Poison Ratio



0.36

0.36

0.36

0.36

0.36

0.36

0.39




Application Image:


MP_OZZEYEMP$9RW%E()T5T6
