PHA-64-05PA
Piezohannas
PHA-64-05PA

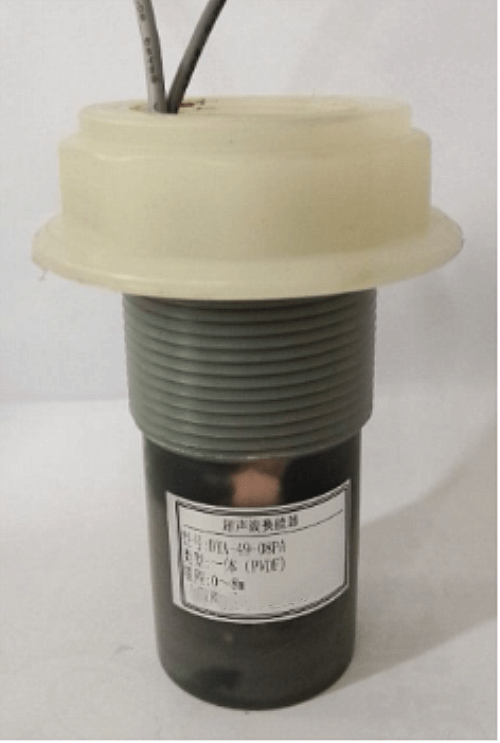

64KHz Anti-corrosive Ultrasonic Transducer for Ultrasonic Level Transducer
Technical parameters：
Items | Technical Parameters | Image | |
Name | 64KHz anti-corrosive transducer PA type（integrated type） |
| |
Model | PHA-64-05PA | ||
Frequency | 64KHz±5% | ||
Detection Distance | 0.3～5m | ||
Minimum Parallel lmpedance | 2200Ω±20％ | ||
1000pF±20％ @1KHz | |||
Sensitivity | Driving Voltage：880Vpp，Distance:0.6m， Echo Amplitude：100 mV | ||
-40～+80℃ | |||
≤3Kilos or 0.3MPa | |||
| (Beamwidth) Half-power Beam Width@-3dB:7°±2， Sharp Angle:16°±4 | ||
Housing Material | PVDF | ||
Usage | Ultrasonic level gauge,Monitoring,Crashproof, Security | ||
Bottom with thread ：M48×2 or G1-1/2 | |||
Protection Level | IP68 | ||
Weight | 310g±5％ | ||
Wiring Instructions | integrated type：connector（3PIN,2.54mm terminal ）：Red+，White-，Black: shielded wire； connector（3PIN,2.0mm terminal ）：white,black:temperature sensor（MF58）； | ||
Admittance Curve | Product Structure Diagram | ||
|
| ||
Test Circuit Schematic of Transducer:
Schematic Diagram of Temperature Sensor:
Cable Instruction of Temperature Sensor: interface (3pin, 2.0mm terminal)
Red and black are temperature sensor wiring
Wiring instruction of transducer: interface (3pin, 2.54mm terminal)
Red: transducer +
White: transducer -
Black: shielding
64KHz Anti-corrosive Ultrasonic Transducer for Ultrasonic Level Transducer
Technical parameters：
Items | Technical Parameters | Image | |
Name | 64KHz anti-corrosive transducer PA type（integrated type） |
| |
Model | PHA-64-05PA | ||
Frequency | 64KHz±5% | ||
Detection Distance | 0.3～5m | ||
Minimum Parallel lmpedance | 2200Ω±20％ | ||
1000pF±20％ @1KHz | |||
Sensitivity | Driving Voltage：880Vpp，Distance:0.6m， Echo Amplitude：100 mV | ||
-40～+80℃ | |||
≤3Kilos or 0.3MPa | |||
| (Beamwidth) Half-power Beam Width@-3dB:7°±2， Sharp Angle:16°±4 | ||
Housing Material | PVDF | ||
Usage | Ultrasonic level gauge,Monitoring,Crashproof, Security | ||
Bottom with thread ：M48×2 or G1-1/2 | |||
Protection Level | IP68 | ||
Weight | 310g±5％ | ||
Wiring Instructions | integrated type：connector（3PIN,2.54mm terminal ）：Red+，White-，Black: shielded wire； connector（3PIN,2.0mm terminal ）：white,black:temperature sensor（MF58）； | ||
Admittance Curve | Product Structure Diagram | ||
|
| ||
Test Circuit Schematic of Transducer:
Schematic Diagram of Temperature Sensor:
Cable Instruction of Temperature Sensor: interface (3pin, 2.0mm terminal)
Red and black are temperature sensor wiring
Wiring instruction of transducer: interface (3pin, 2.54mm terminal)
Red: transducer +
White: transducer -
Black: shielding
