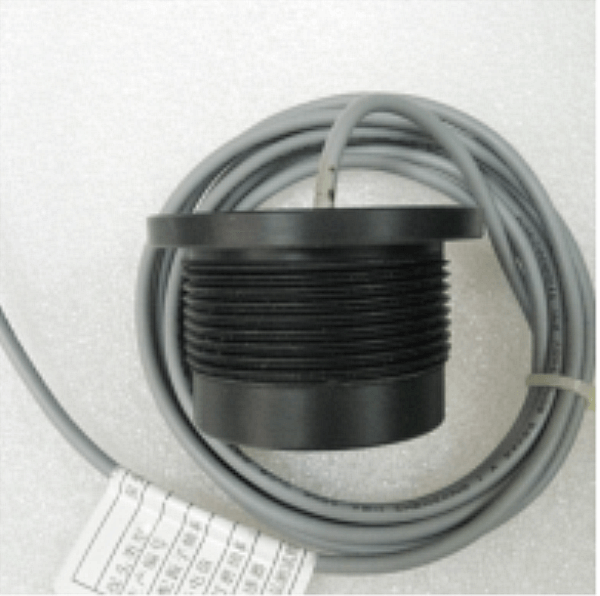

500KHz Ultrasonic Depth Transducer 30m Depth Measurement for Ultrasonic Flowmeter

Application :ultrasonic flowmeter,submarine range finder

Quantity:
  • PHW-500-E
  • Piezohannas
  • PHW-500-E

     500KHz Ultrasonic Depth Transducer 30m Depth Measurement for Ultrasonic Flowmeter




1.Technical parameters:


Items

Technical Parameters


Name

500KHz underwater ultrasonic transducer

64KNL@W)LF8}6)])8I_3F$N

75KUXJOM@0IR7TIEN25D%XK

Model

PHW-500-E

Frequency

500KHz±5%

Detection Distance

0.330m

Minimum

Parallel lmpedance

300Ω±20

Capacitance

1600pF±20@1KHz



Sensitivity

Driving Voltage:24Vpp、Distance:0.3m、

Echo Amplitude:400 mV

Operating

Voltage

Peak Voltage<600VPP

Operating

Temperature

-40+80℃

Pressure

3Kilos or 0.3MPa



Angle

(Beamwidth) Half-power Beam Width@-3dB:4.0°±1,

Sharp Angle:9.5°±2

Housing Material

POM



Usage

ultrasonic flowmeter,submarine range finder

Installation

Dimension

See the product structure drawing

Protection Level

IP68

Weight

110g±5(Length:2m)

Wiring Instructions

   Red+,White-,Black: shielded wire;

(without temperature sensor by default)

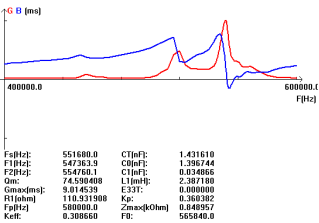

Admittance Curve

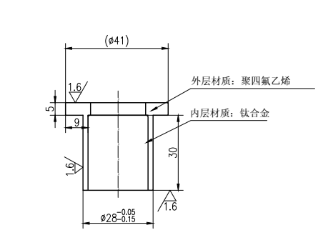

Product Structure Diagram



$X@WF_M6]Y(W_W{D`1RUQ5S

X`A7LCG$X@IYI5P{)A(BM]T



2.Temperature Sensor Schematic Diagram of Transducer , Test Circuit Schematic Diagram
