40KHz Ultrasonic Transducer for 10 Meters Distance Measurement

40 KHz |14° |0.35~10m| used for ultrasonic distance sensor,ultrasonic liquid level sensor,ultrasonic range finder,ultrasonic sensor for non-contact detect objects,etc.

About ultrasonic distance transducer, we can offer 14Khz 22Khz 40Khz 50Khz 75Khz 80Khz 125Khz 200Khz 300Khz 400Khz as for resonant frequency, Also we can accpet customization.

Quantity:
  • PH40F0620
  • Piezohannas
  • PH40F0620



          40KHz Ultrasonict Transducer for 10 Meters Distance Measurement



Introduction:



PH40F0620 ultrasonic sensor has the functions of transmitter and receiver. It’s a long range type, generally can be used for ultrasonic range finder, ultrasonic sensor for non-contact detect objects, ultrasonic distance sensor, ultrasonic liquid level sensor, etc. If you have any questions for other applications, please contact us for details.



Technical parameters:



Model

PH40F0620

Center resonant frequency (kHz)

40KHz±2.0Khz

Bandwidth

±1.5kHz

Detection distance

0.35~10m

Blind spots

<0.35m

Launch angle beam (-6dB full angle)

14±2°

Integrated sensitivity (0 dB=400 Vp-pperiod50distance1.5m)

-76dB min

Electrostatic capacitance

3000PF±20%

Minimum parallel impedance

180Ω±30%

Maximum working voltage (Pulse - 2% duty cycle)

1800Vp-p

Operating temperature

-20 ~70℃

Storage temperature

-40 ~85℃

Protection level

IP65

Installation

Fixed with screw

Case Material

ABS

Weight

1.5kg

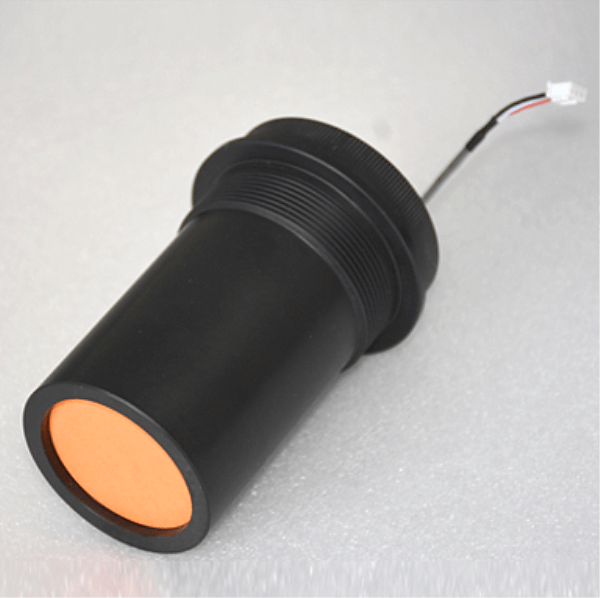

Photo:


(6K$8-{SSFDLF@`TXZ7(`BB


Outline Dimension:


G`7E5)GZ(N%UBC6DPRF06V




Frequency-Resistance Curve




%65}91HR_GSQDS_C5SP7T7I




Frequency-Phase Angle Curve

$N`)SKU[5JD9K)25ESZFUSR


Sensitivity Test:



Transmitting voltage:200Vp-p; period: 10; distance: 1M

Z0QO361RHUJOH$}[[}K1FXH

Directivity Curve


(SD4VQAGE7ASO]@(J9PH%0



Features of ultrasonic sensors:



1.Small size and light-weight

2. High sensitivity and high sound pressure

3.Low power consumption

4.High reliability



Characteristic:



1.Firm semblance seal (PVC outer covering)

2.Convenience thread installment (G1”)



Application:


1.Position Location

2.Approach measurement

3.Traffic Measurement

4.Avoiding Obstacles
