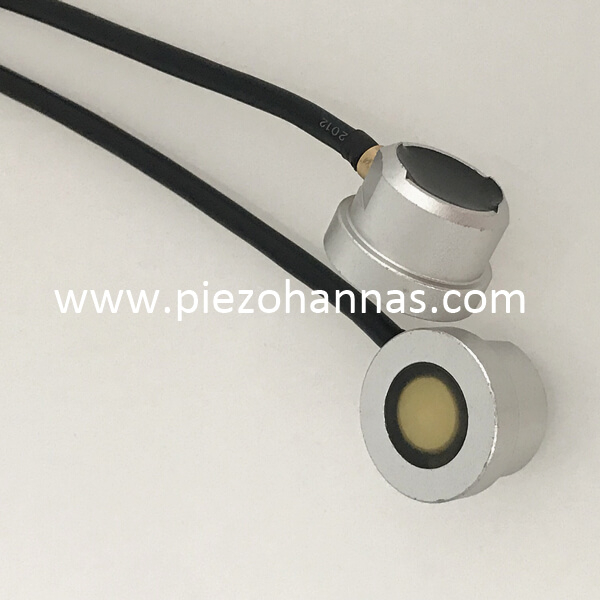

2MHz ultrasonic fuel level transducer for fuel tank

2MHz ultrasonic sensor for oil level of car tank.

Availability:

Quantity:



Inquire Add to Basket

Model:
PL-2M-01F
Brand:
Piezohannas
Code:
PL-2M-01F

Product Description

$NA[30436D{)9OW_M8BEYMMF$

2MHz ultrasonic sensor

mounted outside ultrasonic probe

2MHz mounted outside sensor

Items	Technical Parameters
Name	Ultrasonic transducer for automobile tank oil level(mounted outside)
Model	PL-2M-01F
Frequency	2MHz±30KHz
Detection Distance	0.03 ～ 2m
Minimum Parallel lmpedance	10Ω±20％
Capacitance	2300pF±20％ @1KHz
Sensitivity	Driving Voltage：24 Vpp、Distance：0.3m、 Echo Amplitude:900 mV
Operating Voltage	Peak Voltage＜150VPP
Operating Temperature	-40～+80℃
Pressure	≤3Kilos or 0.3MPa
Angle	(Beamwidth)Half-power Beam Width@-3dB:2.4°±0.5， Sharp Angle:5.7°±1
Housing Material	2A12
Usage	Detecting oil level of fuel tank , submarine range finder
Installation Dimension	Checking product structure diagram below
Protection Level	IP68
Weight	240g±5％（Length：5M+1M）
Wiring Instructions	1.negative electrode of piezoelectric ceramics 2. positive electrode of piezoelectric ceramics 3. MF58 temperature 4.MF58 temperature
Admittance Curve	Product Structure Diagram

ultrasonic fuel level transducer 2MHz ultrasonic sensor for fuel level ultrasonic transducer for fuel tank mounted outside ultrasonic sensor mounted outside ultrasonic probe high quality ultrasonic sensor mounted outside transducer for fuel tank 2MHz mounted outside sensor ultrasonic sensor for fuel level ultrasonic sensor for fuel tank
