PH230F1814
Piezohannas
PH230F1814
230KHz Waterproof Ultrasonic Transducer for 2m Distance
Technical parameters：
Model | PH230F1814 |
Center resonant frequency (kHz) | 230KHZ±4% |
Fequency Bandwidth | 18kHz |
Detection distance | 0.10~2m |
Blind spots | <0.10m |
Launch angle beam (-3dB full angle) | 14±1° |
Integrated sensitivity (0 dB=200 Vp-p；period：50；distance：20cm) | -65dB min |
Electrostatic capacitance | 400PF±20% |
Minimum parallel impedance | 250Ω±30% |
Maximum working voltage (Pulse - 2% duty cycle) | ＜400V |
Operating temperature | -20 ~80℃ |
Storage temperature | -40 ~85℃ |
Protection level | IP65 |
Installation | External cycle fixed |
Case Material | ABS |

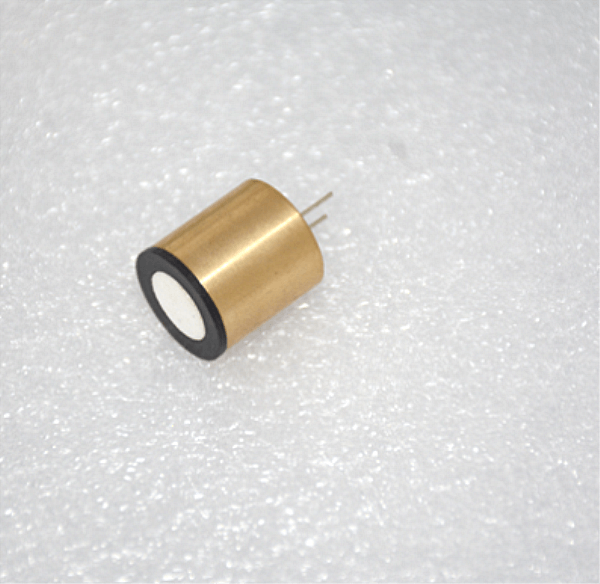

Photo:
![GUTHT5V%N@)OP)@}S]F}7@0 (1)](http://5krorwxhlkpmrik.leadongcdn.com/cloud/loBqnKjlRioSilnkirin/GUTHT5V-N-OP-S-F.png)
Outline Dimension：
![3H6{PD]L8MO%LI{8341LZ2](http://5krorwxhlkpmrik.leadongcdn.com/cloud/lpBqnKjlRioSilnkkrin/3H6-PD-L8MO-LILZ2.png)
Frequency-Resistance Curve：
Frequency-Phase Angle Curve：
![@XL$KD[4GP5]1CW[DPQ9`M](http://5krorwxhlkpmrik.leadongcdn.com/cloud/lmBqnKjlRioSilnklrin/XL-KDGP5CW-DPQ9-M.png)
Sensitivity Test:
Transmitting voltage:200Vp-p; period: 50; distance: 10CM
Directivity Curve：
Application:
1.Position Location
2.Approach measurement
3.Traffic Measurement
4.Avoiding Obstacles
230KHz Waterproof Ultrasonic Transducer for 2m Distance
Technical parameters：
Model | PH230F1814 |
Center resonant frequency (kHz) | 230KHZ±4% |
Fequency Bandwidth | 18kHz |
Detection distance | 0.10~2m |
Blind spots | <0.10m |
Launch angle beam (-3dB full angle) | 14±1° |
Integrated sensitivity (0 dB=200 Vp-p；period：50；distance：20cm) | -65dB min |
Electrostatic capacitance | 400PF±20% |
Minimum parallel impedance | 250Ω±30% |
Maximum working voltage (Pulse - 2% duty cycle) | ＜400V |
Operating temperature | -20 ~80℃ |
Storage temperature | -40 ~85℃ |
Protection level | IP65 |
Installation | External cycle fixed |
Case Material | ABS |
Photo:
Outline Dimension：
Frequency-Resistance Curve：
Frequency-Phase Angle Curve：
Sensitivity Test:
Transmitting voltage:200Vp-p; period: 50; distance: 10CM
Directivity Curve：
Application:
1.Position Location
2.Approach measurement
3.Traffic Measurement
4.Avoiding Obstacles
