200Khz Stainless Steel Ultrasonic Transducer for Ultrasonic Gas Flowmeter

ultrasonic transducer for ultrasonic gas flowmeter

Quantity:
  • PH00200QB-4
  • Piezohannas
  • PH00200QB-4

       200Khz Stainless Steel Ultrasonic Transducer for Ultrasonic Gas Flowmeter


Technical parameters:



Model

PH00200QB-4

Center resonant frequency (kHz)

 200KHZ±4%

Fequency Bandwidth

20kHz

Launch angle beam (-3dB full angle)

12±2°

 integrated sensitivity (0 dB=10 Vp-p;sine wave,period:5, receiving distance:3cm

2V

Electrostatic capacitance

2000PF±20%

Minimum parallel impedance

200Ω±30%

Maximum working voltage (Pulse - 2% duty cycle)

<100V

Operating temperature

-20 ~70℃

Protection level

IP65



Image:

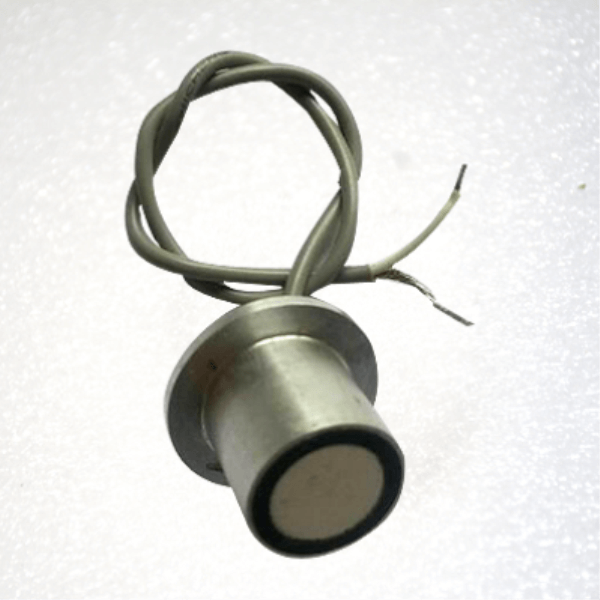

ultrasonic flow meter transducer



Outline Dimension:


 YJ`P(`AB(ERRV7%@E0SHAQ







Frequency-Resistance Curve


{IA)(L9KP4QE@]1RP29LUOW

Integrated Sensitivity:


Sending voltage :10 Vp-psine wave,period5, receiving distance3cm




Q(3AVH_2E%V@6T6PAZ00E}E



Directivity curve

NW)]{OV]RP0S$W4974G[{{I
