100Khz PVDF Ultrasonic Transducer for Distance Measurement

About ultrasonic distance transducer, we can offer transducer that can detect 1M,3M,4M,5M,8M,12M,20M,30M,50M, Also we can accpet customization.

Availability:

Quantity:



Inquire Add to Basket

Model:
PHA-100-02PE
Brand:
Piezohannas
Code:
PHA-100-02PE

Product Description

100Khz PVDF Ultrasonic Transducer for Distance Measurement

Items	Technical Parameters		Image
Name	100KHz anticorrosive transducer
Model	PHA-100-02PE
Frequency	100KHz±5%
Detection Distance	0.15～2m
Minimum Parallel lmpedance	700Ω±20％
Capacitance	2100pF±20％ @1KHz
Sensitivity	No load driving voltage:300Vpp，Distance:0.3m， Echo Amplitude:40mV
Operating Voltage	Peak Voltage＜800Vpp
Operating Temperature	-40～+80℃
Pressure	≤3Kilos or 0.3MPa
Housing Material	PVDF
usage	Ultrasonic level gauge, monitoring, anticollision, security
Installation Dimension	See product structure drawing for details
Protection Level	IP68
Weight	300g±5％
Wiring Instructions	Integrated interface (3PIN,2.54mm terminal) : red positive, white negative, black shield wire; Interface (3PIN,2.0mm terminal) : white and black for temperature sensor wire (MF58);
Admittance Curve		Product Structure Diagram

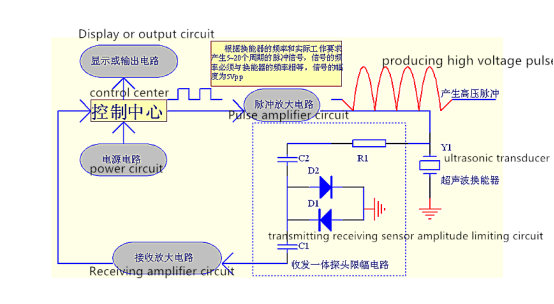

Driving Circuit :

0RYJG8D(6_Q9XM%86PDG

100KHz ultrasonic transducer PVDF ultrasonic transducer PVDF ultrasonic range transducer transducer for distance measurement ultrasonic distance measuring sensor PVDF housing ultrasonic transducer 100Khz PVDF ultrasonic transducer 100Khz transducer for distance measurement
