Piezoelectric ceramics have revolutionized numerous technological fields by converting mechanical energy into electrical energy and vice versa. These advanced materials, which exhibit the piezoelectric effect, are integral to a myriad of applications ranging from medical ultrasonics to industrial automation. Understanding the properties and applications of piezoelectric ceramics is essential for advancing current technologies and developing innovative solutions in various sectors. The versatility of piezo ceramic materials makes them a focal point in research and industry, driving advancements in electronics, aerospace, healthcare, and beyond.
At the core of piezoelectric ceramics lies their unique crystal structure, which lacks a center of symmetry. This asymmetry allows the material to produce an electric charge in response to mechanical stress. The fundamental mechanism involves the displacement of ions within the crystal lattice when external forces are applied, leading to polarization and the generation of an electric field.
Piezoelectric ceramics are predominantly composed of perovskite structures, such as lead zirconate titanate (PZT). The perovskite structure facilitates the displacement of cations within the crystal lattice under mechanical stress, contributing to the material's piezoelectric properties. The tetragonal unit cells in these ceramics allow for anisotropic behavior, meaning their properties vary with direction within the crystal. This anisotropy is crucial for tailoring materials to specific applications.
The piezoelectric effect in ceramics is a reversible process. When mechanical stress is applied, the displacement of charge centers leads to polarization, creating an electric potential. Conversely, when an electric field is applied, it induces mechanical deformation in the material. This duality enables piezoelectric ceramics to function as both sensors and actuators. The effectiveness of this mechanism depends on factors like the material's composition, domain orientation, and poling process.
The production of piezoelectric ceramics involves a series of meticulous processes to ensure optimal performance. Starting with high-purity raw materials, the manufacturing process aims to achieve the desired crystal structure and material properties through controlled synthesis and processing techniques.
The most common piezoelectric ceramics are based on lead zirconate titanate (PZT) due to its superior piezoelectric properties. Adjusting the ratios of lead, zirconium, and titanium allows for tuning the material's characteristics to suit specific applications. Efforts are also underway to develop lead-free ceramics, such as barium titanate and potassium sodium niobate, to mitigate environmental concerns associated with lead.
Sintering is a critical step where powdered materials are heated below their melting point to form a solid mass. This process facilitates the development of the ceramic's microstructure, which directly influences its piezoelectric properties. Precise control over temperature, atmosphere, and time is essential to achieve the desired density and grain structure.
After sintering, the ceramic material undergoes poling, where it is exposed to a strong electric field at elevated temperatures. This process aligns the domains within the material, enhancing its piezoelectric properties. The alignment is maintained upon cooling, resulting in a material that exhibits a net polarization and is responsive to mechanical and electrical stimuli.
Piezoelectric ceramics are pivotal in a wide range of applications due to their ability to convert mechanical energy into electrical energy and vice versa. The diversity of uses underscores the importance of understanding these materials for technological advancement.
One of the primary applications of piezoelectric ceramics is in the development of sensors and actuators. As sensors, they detect changes in pressure, acceleration, strain, or force by converting these mechanical parameters into electrical signals. For example, piezoelectric accelerometers utilize the material's properties to measure vibration and shock in automotive and aerospace industries.
As actuators, piezoelectric ceramics convert electrical signals into precise mechanical movements. This capability is crucial in applications requiring high-precision positioning, such as in nano-positioning stages used for semiconductor manufacturing and fiber optic alignment.

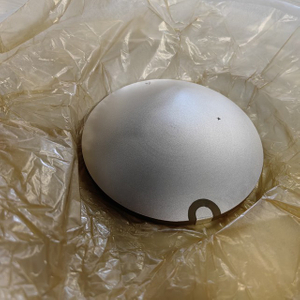

In the medical field, piezoelectric ceramics are used extensively in ultrasonic imaging equipment. Ultrasound transducers rely on the inverse piezoelectric effect to generate sound waves and the direct effect to receive echoes. These transducers must be highly sensitive and efficient, attributes that piezo ceramics provide, contributing to clearer images and better diagnostic capabilities.
Beyond imaging, piezoelectric materials are utilized in therapeutic devices, such as high-intensity focused ultrasound (HIFU) systems, which treat tumors and other medical conditions by focusing ultrasonic energy on a target area within the body.
Piezoelectric ceramics play a significant role in energy harvesting applications. By capturing ambient mechanical vibrations and converting them into electrical energy, these materials can power wireless sensors and portable electronics. This is particularly useful in remote or inaccessible areas where replacing batteries is impractical.
Innovations in this area include embedding piezo ceramics in roadways to harness energy from vehicle vibrations, and in footwear to generate power from walking or running, potentially powering wearable electronic devices.
Piezoelectric ceramics are used to construct compact, high-precision motors. These motors operate based on ultrasonic vibrations generated by the piezo ceramic elements, which induce movement through frictional forces. Such motors are valuable in applications where electromagnetic interference must be minimized, such as in medical instruments and precision optics.
The absence of magnetic fields in piezoelectric motors also makes them ideal for use in environments sensitive to electromagnetic interference, ensuring reliability and safety in critical applications.
Acoustic applications of piezoelectric ceramics are extensive, encompassing devices like buzzers, microphones, and speakers. In buzzers, the rapid deformation of the piezo ceramic under alternating voltage produces sound waves. Microphones utilize the reverse process, converting sound pressure into electrical signals for audio recording and transmission.
In musical instruments, piezoelectric pickups capture vibrations, allowing for the amplification of acoustic sounds. This technology enhances the performance of string instruments and pianos, providing high-fidelity sound reproduction.
Beyond the applications mentioned, piezoelectric ceramics are integral in many other fields. They are used in inkjet printers to control ink flow with precision, enabling high-resolution printing. In automotive engineering, piezoelectric fuel injectors improve engine efficiency by delivering precise fuel amounts into combustion chambers.

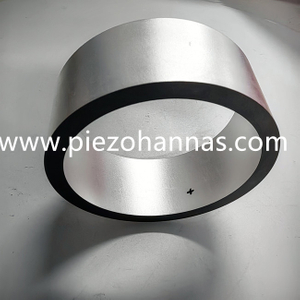

In aerospace, these materials are employed in vibration control systems to enhance the safety and comfort of aircraft. Additionally, piezo ceramics are used in sonar equipment for submarine detection and navigation, demonstrating their critical role in defense technology.
The field of piezoelectric ceramics is continually evolving, driven by the need for improved performance and environmental sustainability. Research focuses on developing new materials and enhancing existing ones to meet the demands of modern technology.
Environmental concerns over lead content in traditional PZT ceramics have spurred the development of lead-free alternatives. Materials such as sodium potassium niobate (KNN) and bismuth ferrite (BFO) are being researched for their piezoelectric properties. These alternatives aim to match or surpass the performance of lead-based ceramics while reducing environmental and health risks.
The challenge lies in achieving the necessary piezoelectric coefficients and temperature stability. Advances in material science and engineering are crucial to overcome these obstacles, paving the way for greener piezoelectric technologies.
Nanotechnology offers exciting prospects for enhancing the properties of piezoelectric ceramics. By manipulating materials at the nanoscale, researchers can create structures with superior piezoelectric responses. Nanocomposites and nanostructured films exhibit enhanced sensitivity and energy conversion efficiency.
Applications of nanotechnology in piezo ceramics include the development of flexible and wearable devices, where traditional ceramics are unsuitable due to their rigidity. Nanostructured piezoelectric materials enable the creation of sensors and energy harvesters that can conform to various surfaces, expanding their usability.
Piezoelectric ceramics are instrumental in the advancement of modern technology. Their unique ability to convert mechanical energy into electrical energy and vice versa makes them invaluable across various industries. From medical imaging and precise instrumentation to energy harvesting and consumer electronics, the applications of piezo ceramic materials continue to expand.
Ongoing research and development aim to overcome current limitations, such as environmental concerns and material performance. The future of piezoelectric ceramics looks promising, with innovations poised to enhance their functionality and integration into emerging technologies. As we continue to explore the potential of these materials, their impact on technological progress and sustainability is certain to grow.
Piezoelectric ceramics operate on the principle of the piezoelectric effect, where mechanical stress induces an electric charge in certain materials. Conversely, applying an electric field causes these materials to deform mechanically. This duality enables them to function as both sensors and actuators, converting energy forms efficiently.
In medical devices, piezoelectric ceramics are crucial components in ultrasonic imaging equipment. They generate and detect ultrasonic waves, providing high-resolution images for diagnostics. Additionally, they are used in therapeutic devices like HIFU systems to target and treat tissues within the body non-invasively.
Traditional piezoelectric ceramics, such as PZT, contain lead, which poses environmental and health risks. The disposal and recycling of lead-containing materials require careful management to prevent contamination. This concern has led to research into lead-free alternatives that are more environmentally friendly.
Yes, piezoelectric ceramics are effective in energy harvesting by converting mechanical vibrations into electrical energy. They are used to power small devices and sensors, especially in remote locations where replacing batteries is challenging. Innovations aim to enhance their efficiency for broader applications in renewable energy.
Advancements include developing lead-free piezoelectric materials to address environmental concerns. Researchers are also exploring nanotechnology to create nanostructured piezoelectric materials with enhanced properties. These innovations aim to improve performance, flexibility, and integration into new technologies.
Piezoelectric motors differ from electromagnetic motors by using ultrasonic vibrations to induce movement through frictional forces, rather than magnetic fields. They are compact, produce minimal electromagnetic interference, and offer precise control, making them suitable for applications in sensitive environments like medical devices.
Manufacturing piezoelectric ceramics involves challenges like achieving the desired material purity, precise control over the sintering process, and effective poling for optimal properties. There's also the challenge of developing lead-free materials that match the performance of traditional ceramics without environmental drawbacks.
