YH-T520
Piezohannas
YH-T520

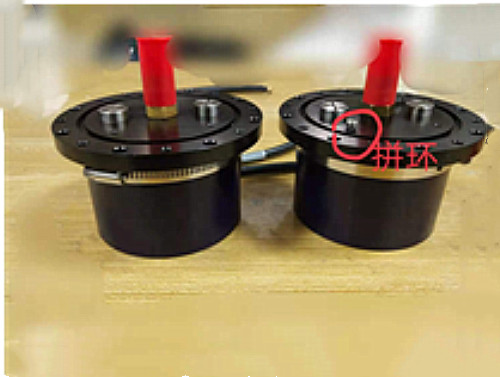

Underwater Acoustic Transducer Cylinderical Hydrophone
lHemispherical directivity
lBroadband work
lHigh power
lremote transmission
llow loss
This type of transducer is mainly used for long-distance communication, its emission response -3dB bandwidth can be from 6kHz-16kHz, and the receiving sensitivity within the bandwidth is greater than -185dB. The transducer adopts an overflow ring design method to increase the bandwidth of the transducer, and a special design method is adopted to realize the vertical directivity is half-space directivity, the horizontal direction is omnidirectional, and there is no blind zone in the whole space below the transducer when is working.
13kHz Vertical directivity diagram

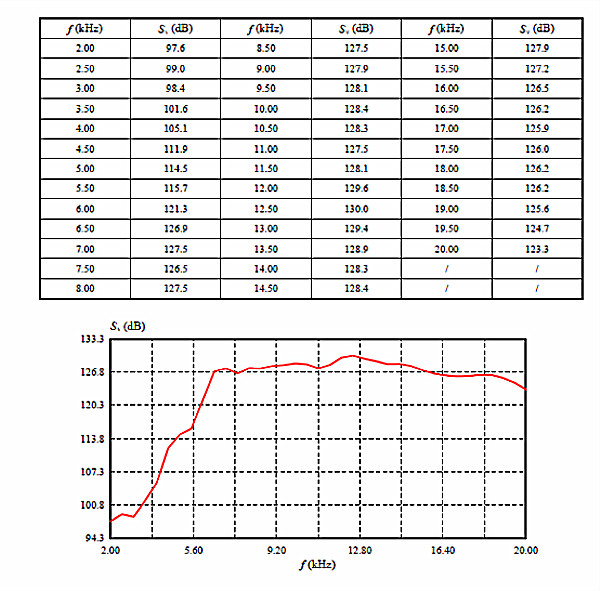

Transmitting voltage response

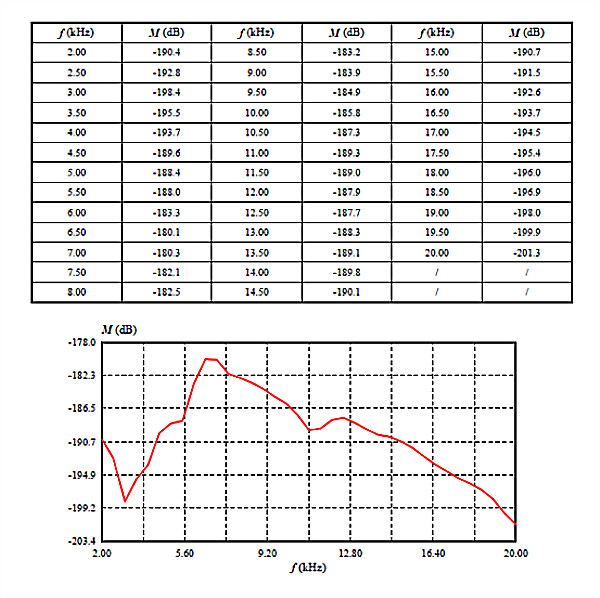

Receiving sensitivity

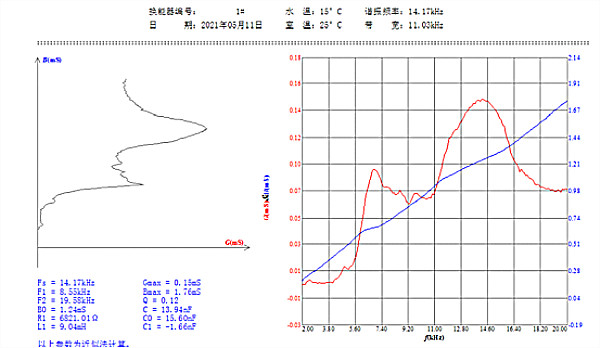

impedance characteristics of transducer
Outside drawing
Underwater Acoustic Transducer Cylinderical Hydrophone
lHemispherical directivity
lBroadband work
lHigh power
lremote transmission
llow loss
This type of transducer is mainly used for long-distance communication, its emission response -3dB bandwidth can be from 6kHz-16kHz, and the receiving sensitivity within the bandwidth is greater than -185dB. The transducer adopts an overflow ring design method to increase the bandwidth of the transducer, and a special design method is adopted to realize the vertical directivity is half-space directivity, the horizontal direction is omnidirectional, and there is no blind zone in the whole space below the transducer when is working.
13kHz Vertical directivity diagram
Transmitting voltage response
Receiving sensitivity
impedance characteristics of transducer
Outside drawing
