Ultrasonic Sensor for Water Flow Meter Ultrasonic Flow Meter Transducer

125KHz |5° |0.07 ~ 1m |used for ultrasonic flow sensor,ultrasonic calorimeter,open-channel meter, ultrasonic distance sensor in liquid, etc.

Quantity:
  • PHA-125-02C
  • Piezohannas
  • PHA-125-02C

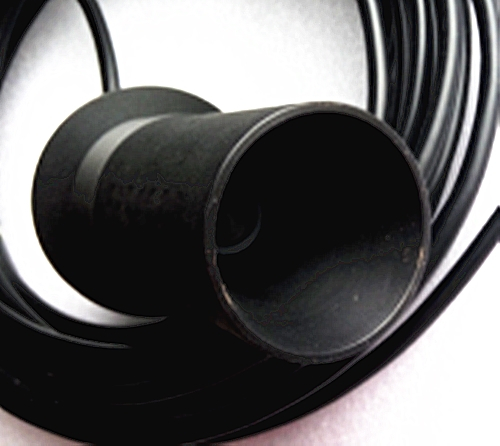

           Ultrasonic Sensor for Water Flow Meter Ultrasonic Flow Meter Transducer



Items

Technical Parameters


Name

125KHz flowmeter transducer C type with small blind area

OHK[O)9]3MFK5R2FWCY)V0

50MC]_L5V55XP7JTJNU58

Model

PHA-125-02C

Frequency

125KHz±5%

Detection Distance

0.07  1m

Minimum

Parallel lmpedance

1300Ω±20

Capacitance

500pF±20@1KHz



Sensitivity

Driving Voltage880VppDistance0.3m

Echo Amplitude80mV

Operating

Voltage

Peak Voltage1000 VPP

Operating

Temperature

-40+80℃

Pressure

≤3Kilos or 0.3MPa



Angle


Housing Material

composite material



Usage

open-channel meterultrasonic transducer

Installation

Dimension

threadM48*2

Protection Level

IP68

Weight

240g±5

Wiring Instructions

Integrated interfaceRed+White-Black: shielded wire

 default : without temperature sensor



Admittance Curve

Product Structure Diagram

T57X`9DBVOLI)(]`WJECF

1K1D{QXBGFGO@UH`ETF$U4K
