YH-T235
Piezohannas
YH-T235

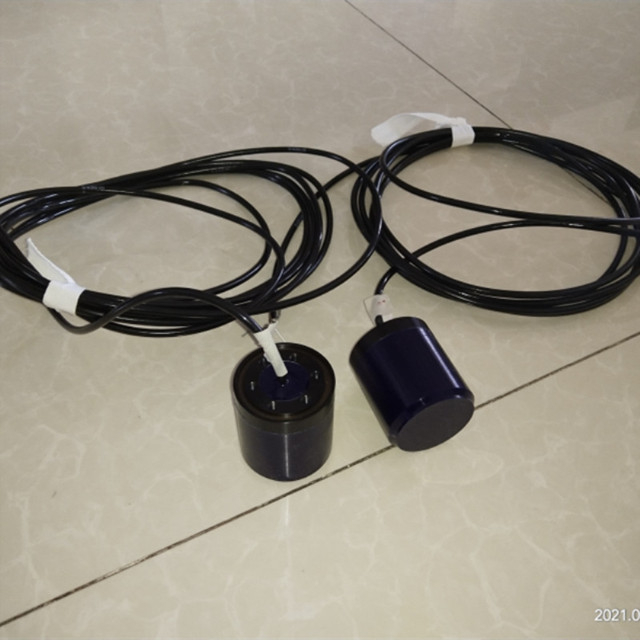

Transducer Cylinderical Hydrophone for Side Scan Sonar
23.5kHz cylindrical underwater acoustic transducer
Broadband transmission
Transponder
Hydroacoustic positioning
Communication
Specification:
Technical parameters | |
Resonant frequency | 24kHz |
Working frequency | 15kHz-35kHz |
Horizontal directivity | omni-directional±2dB |
vertical directivity | Hemisphere type |
Impedance at resonance point | 3400Ω |
Input maximum electric power | 400W impulse condition |
Working depth | 2000M |
material | aluminium alloy+PVC |
Cable model | Dia.5mm,Polyurethane sheath |
Cable length | Standard 3 meters, extra lengths need to be ordered separately |
storage temperature | -40 - +80 ºC |
operating temperature | -5 - +70 ºC |
Receive Graph:
Dimensions :
Transducer Cylinderical Hydrophone for Side Scan Sonar
23.5kHz cylindrical underwater acoustic transducer
Broadband transmission
Transponder
Hydroacoustic positioning
Communication
Specification:
Technical parameters | |
Resonant frequency | 24kHz |
Working frequency | 15kHz-35kHz |
Horizontal directivity | omni-directional±2dB |
vertical directivity | Hemisphere type |
Impedance at resonance point | 3400Ω |
Input maximum electric power | 400W impulse condition |
Working depth | 2000M |
material | aluminium alloy+PVC |
Cable model | Dia.5mm,Polyurethane sheath |
Cable length | Standard 3 meters, extra lengths need to be ordered separately |
storage temperature | -40 - +80 ºC |
operating temperature | -5 - +70 ºC |
Receive Graph:
Dimensions :
