Ultrasonic welding exposes components to intense mechanical stress and high continuous power demands. When a transducer fails prematurely, engineers often trace the root cause back to improperly specified piezo components. Think of the piezo ceramic as the core engine in a standard Langevin-type assembly. If you select the wrong material grade, geometry, or resonant frequency, you invite rapid heat buildup, amplitude degradation, and catastrophic ceramic cracking.
We wrote this guide to provide an evidence-based, engineering-focused framework for specifying, evaluating, and sourcing these critical components. You will learn how to match specific PZT grades to your power requirements. We also explore dimensional tolerances, pre-stress assembly tactics, and quality control strategies. Ultimately, this knowledge helps you ensure system longevity and maintain consistent weld quality across massive production runs.
Material Grade is critical: High-power welding strictly requires hard piezoelectric materials (like PZT-8) due to their high mechanical quality factor and low dielectric loss.
Dimensional exactness drives frequency: The Outer Diameter (OD), Inner Diameter (ID), and thickness must perfectly align with your target resonant frequency (typically 15kHz, 20kHz, or 35kHz).
Pre-stress assembly dictates performance: Even perfect piezo rings will fail without accurately calculated pre-stress bolt torque to prevent tensile stress during operation.
Batch consistency matters most: For OEM manufacturing, evaluating a supplier’s impedance testing and batch-to-batch tolerance control is more important than theoretical specs.
To build reliable hardware, you must first understand the underlying system architecture. Most modern ultrasonic welding systems rely on a Langevin transducer design. This bolted configuration effectively sandwiches the active piezoceramic elements between two solid metal masses, creating a highly efficient resonant structure.
The standard Langevin structure consists of a front mass, a back mass, a central pre-stress bolt, and a stacked set of ceramics. The front mass usually features a lighter metal, such as aluminum or titanium, which helps amplify the acoustic wave toward the booster and welding horn. The back mass utilizes denser metals like steel to act as a heavy reflector, pushing the acoustic energy forward. The central bolt applies massive compressive force to the entire stack, holding the components together securely.
Inside this complex assembly, the rings convert high-frequency electrical signals into longitudinal mechanical vibrations. When the ultrasonic generator applies an alternating electrical current across the electrodes, the piezoelectric material rapidly expands and contracts. This inverse piezoelectric effect generates powerful acoustic waves that travel down the acoustic stack to melt and fuse the target materials.

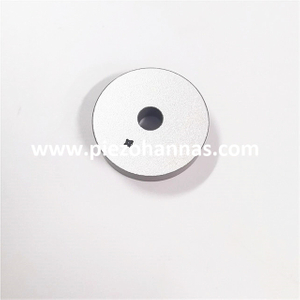

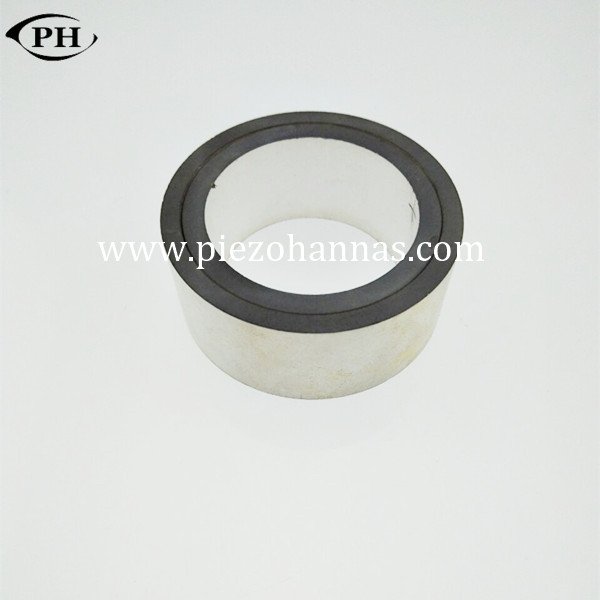

You must clearly distinguish the performance demands between different end-use cases. The requirements for Applications in ultrasonic cleaning and ultrasonic welder differ significantly. Standard cleaning baths operate at lower power levels, relying on continuous, steady waves to create cavitation in liquids. Conversely, welding requires massive instantaneous power bursts. It also demands far stricter thermal management to prevent the Ultrasonic Transducers from overheating under heavy mechanical load. Using parts meant for one application in the other guarantees failure.
Selecting the correct lead zirconate titanate (PZT) formulation represents your most critical design decision. The industry categorizes these piezoelectric ceramics into "hard" and "soft" grades based on their distinct functional properties and operational limits.
Ultrasonic welding strictly requires "hard" piezoelectric ceramics. Formulations like PZT-8 and PZT-4 dominate this engineering space. They feature exceptionally high mechanical quality factors (Qm). This allows them to withstand intense mechanical vibration without losing efficiency. Hard materials also firmly resist depolarization under severe mechanical stress and high electrical drive fields, making them robust power generators.
PZT-8 stands out as the absolute industry standard for high-power welding operations. It offers the lowest dielectric dissipation factor among all available commercial grades. When you drive the transducer at 20kHz or 35kHz, PZT-8 generates minimal internal heat. It remains highly stable over thousands of operating hours. If your application involves continuous duty cycles or automated assembly lines, PZT-8 provides the safest engineering margin against thermal runaway and efficiency loss.
Engineers occasionally evaluate PZT-4 for specific setups. PZT-4 boasts slightly higher electromechanical coupling coefficients than PZT-8. This means it can produce slightly higher raw amplitude output for the same electrical input. However, this comes with clear trade-offs. PZT-4 generates more internal heat during continuous or high-duty-cycle welding. We recommend PZT-4 primarily for intermittent welding tasks where heat dissipation happens quickly between shorter cycles.
You must explicitly avoid soft PZT materials, such as the PZT-5 series, for any welding stack. Manufacturers design soft PZT specifically for sensitive sensors, medical imaging arrays, and low-power precision actuators. If you mistakenly place PZT-5 components into a welding transducer, they will rapidly depolarize. The high mechanical loads and elevated temperatures will cause immediate, irreversible component failure.
PZT Grade | Material Type | Primary Engineering Advantage | Welding Suitability | Heat Generation Profile |
|---|---|---|---|---|
PZT-8 | Hard | Lowest dielectric loss, extremely high stability | Excellent (Industry Standard) | Very Low |
PZT-4 | Hard | High coupling coefficient, strong amplitude output | Good (Intermittent Use Only) | Moderate |
PZT-5 | Soft | High sensitivity for low-power sensing | Poor (Will Depolarize/Fail) | Very High |

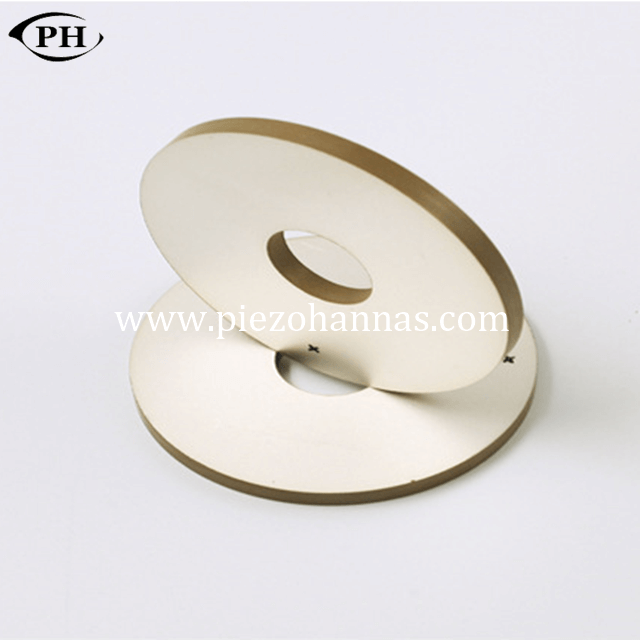

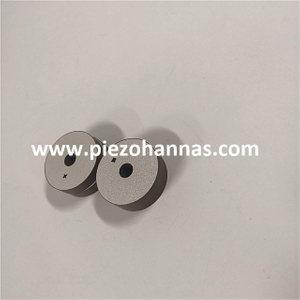

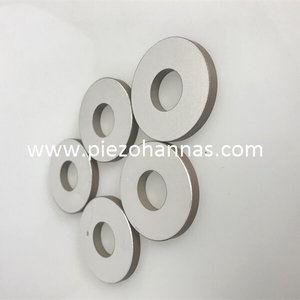

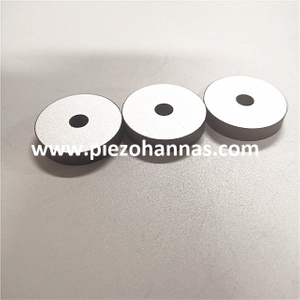

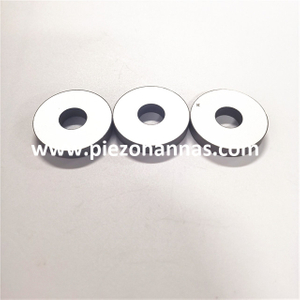

Once you select the appropriate PZT-8 or PZT-4 material, you must lock down the physical dimensions and electrical properties. Procuring Piezo Rings with loose tolerances will ruin the resonance of your assembled stack, leading to erratic performance.
Here are the core technical specifications you must verify during the design and procurement phases:
Resonant Frequency Targeting: The thickness of the ceramic directly dictates the operating frequency of the individual component. However, the overall transducer stack relies on the combined acoustic length of all parts. A 20kHz system requires thicker ceramic stacks and larger metal masses than a 40kHz system. You must specify the thickness tolerance tightly to hit the correct series resonance and ensure efficient energy transfer.
Capacitance and Impedance: Maintaining a specific electrical capacitance range across the entire stack is vital. Your ultrasonic generator expects a precise capacitive load. If the total capacitance falls outside the generator's internal tuning window, the system cannot match the impedance. This mismatch reflects electrical power back into the generator, severely dropping efficiency and potentially destroying the power supply electronics.
Dimensional Tolerances: Strict tolerances on both the Outer Diameter (OD) and Inner Diameter (ID) ensure perfect concentric alignment. If the ID is too large, the ceramic may sit off-center relative to the pre-stress bolt. This geometric misalignment creates asymmetric mechanical modes. It causes parasitic lateral vibrations and uneven energy transfer, drastically reducing longitudinal amplitude.

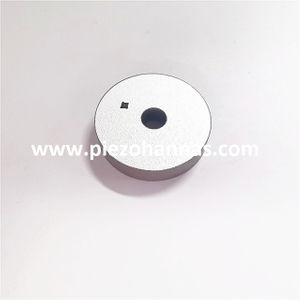

Surface Finish & Electrode Quality: The mating faces of the ceramic must be perfectly flat and parallel. Manufacturers apply silver electrodes to these functional surfaces. The silver layer must be robust, uniform, and entirely free of oxidation or scratching. Poor surface finish causes uneven mechanical loading across the face. Thin or patchy electrodes can trigger localized electrical arcing under high-voltage drive conditions, destroying the component.
Even perfectly manufactured components will fail quickly if you assemble them incorrectly. The mechanical assembly process introduces several critical failure points that engineers must control rigidly in production.
Piezoelectric ceramics share a fundamental physical trait with standard concrete: they are exceptionally strong in compression but terribly weak in tension. During high-power ultrasonic welding, the ceramic expands and contracts thousands of times per second. Without a compressive load, the violent contraction phase would pull the ceramic apart. The central pre-stress bolt forces the entire stack into a state of constant, heavy compression. This vital engineering step ensures the ceramic never experiences tensile stress during any part of the operating cycle.
Applying the correct torque requires precision engineering and reliable tools. If you under-tighten the central bolt, the ceramic will experience tension and crack almost instantly upon high-power activation. Conversely, if you over-tighten the bolt, you risk crushing the crystalline ceramic matrix entirely or stripping the metal threads on the front mass. Furthermore, excessive compression shifts the resonant frequency higher and artificially reduces the mechanical amplitude. You must use recently calibrated torque wrenches. You should also apply the torque incrementally, allowing the materials to settle and the friction to normalize.
Never deploy an assembled transducer into production without rigorous post-assembly validation. We strongly recommend specific testing protocols for every completed unit. Connect the final assembly to a professional impedance analyzer. Sweep a broad range of frequencies to locate the primary longitudinal modes. You must measure the exact series (resonant) frequency and the parallel (anti-resonant) frequency. From this data, calculate the mechanical Q-factor of the stack. A sharp, clean impedance plot confirms that your applied pre-stress achieved optimal acoustic coupling and that no parasitic resonances will interfere with the weld.
Your final major challenge lies in advanced supply chain management. When you source piezo rings for ultrasonic welding, you are buying precision-engineered acoustic engines, not commodity hardware. Evaluating potential partners goes far beyond simply comparing catalog prices.
In OEM manufacturing, batch consistency poses the single largest procurement risk. PZT manufacturing involves mixing chemical powders, pressing them under high pressure, and baking them in high-temperature sintering ovens. Slight variations in the chemical formulation or baking profile cause massive frequency drifts. If one batch of rings resonates 500Hz differently than the previous batch, your assembly line will grind to a halt. Reliable suppliers utilize strict statistical process controls to lock in acoustic properties across massive production runs.
Advise your procurement team to demand transparent, accessible testing data. A trustworthy supplier provides comprehensive documentation for every shipment. They should gladly include sample impedance plots, capacitance variance charts, and detailed dimensional inspection reports per batch. If a vendor refuses to share raw test data or relies solely on theoretical spec sheets, treat it as a significant red flag.
Standard dimensions work well for generic applications, but specialized manufacturing tasks often require custom geometries. You might be designing an automated system for non-woven fabrics, automotive plastic dashboards, or specialized food packaging. You need a supplier who can effortlessly modify outer diameters, adjust thicknesses, or tweak the PZT formulation for specific thermal profiles. Look for manufacturing partners with dedicated R&D teams capable of rapid, accurate prototyping.
Before committing to high-volume production, immediately request sample batches from your shortlisted vendors. Build prototype transducers using these components and perform thorough impedance testing in your own engineering lab. Subject the prototypes to sustained high-power loads to check for thermal degradation. Only proceed to mass procurement once you validate the acoustic consistency and thermal stability of the samples under actual operating conditions.
Specifying piezo rings for ultrasonic welding remains an exact science. It demands a deep, practical understanding of acoustic physics, material science, and mechanical engineering. You must secure hard PZT grades, demand precise dimensional tolerances, and enforce rigorous assembly protocols to achieve reliable performance.
Audit your materials: Resolving mysterious transducer failures often starts by verifying your PZT formulation and ensuring your pre-stress torque matches the initial design calculations.
Prioritize hard ceramics: Always default to PZT-8 for high-power, continuous welding applications to safely manage heat dissipation and prevent component depolarization.
Validate electrically: Never skip impedance analyzer testing post-assembly; it serves as your ultimate diagnostic tool for confirming mechanical integrity.
Collaborate early: Share your exact target frequencies, power requirements, and duty cycles directly with a specialized piezo manufacturer. Their engineering teams can guide you toward the ideal custom or off-the-shelf component.
A: Generally, no. While both use Langevin transducers, welding requires higher amplitude and massive power bursts. This necessitates harder PZT materials, such as PZT-8, to handle the thermal load. The standard rings sometimes used in low-power cleaning baths will overheat, depolarize, and fail if subjected to welding stresses.
A: An impedance analyzer is the industry standard tool. It sweeps a broad range of frequencies to identify the exact series (resonant) and parallel (anti-resonant) frequencies. This confirms whether the assembled stack functions correctly and verifies if it matches the ultrasonic generator's target output window.
A: Cracking is rarely a defect of the ring itself. It is almost always caused by improper pre-stress, such as inadequate torque allowing tensile stress. Uneven mating surfaces or driving the transducer off-resonance also create extreme localized heat and severe mechanical stress, physically fracturing the ceramic structure.
