PR1000K0134
Piezohannas
PR1000K0134

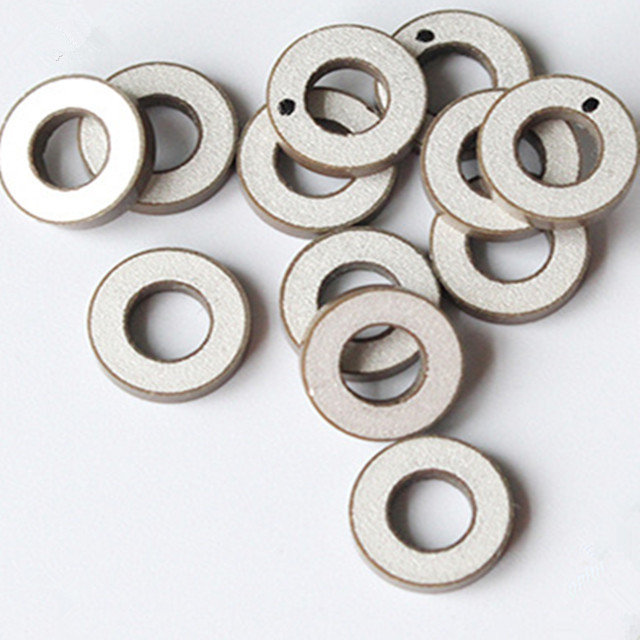

High Power Piezo Ring Piezoceramic Transducers for Ultrasonic Dental Scaler
1.Product Description
- Piezo Material: PZT-8
- Dimensions: OD10 x ID5 x 2mm
-Resonant Frequency (kHz):145
-Capacitance (pF):330
Range Of piezo ceramic ring
External diameter: 5.0 - 100mm
Internal diameter :(2.0 - 35mm)
Thickness : (0.2 - 15mm)
Choice of metallisation (Silver, Nickel, Gold and others on request)
Wide choice of PZT formulations
3.Typical value of "Hard" PZT materials performance：
Hard" PZT materials | |||||||
Properties | PZT-41 | PZT-42 | PZT-43 | PZT-82 | PBaS-4 | ||
Dielectric Constant | ɛTr3 | 1050 | 1250 | 1420 | 1100 | 1900 | |
Coupling factor | KP | 0.58 | 0.58 | 0.58 | 0.52 | 0.59 | |
K31 | 0.32 | 0.33 | 0.34 | 0.3 | 0.34 | ||
K33 | 0.66 | 0.67 | 0.68 | 0.57 | 0.68 | ||
Kt | 0.48 | 0.48 | 0.48 | 0.4 | 0.49 | ||
Piezoelectric coefficient | d31 | 10-12m/v | -106 | -124 | -138 | -100 | -160 |
d33 | 10-12m/v | 260 | 280 | 300 | 240 | 380 | |
g31 | 10-3vm/n | -11.4 | -11.2 | -11 | -10.3 | -9.5 | |
g33 | 10-3vm/n | 28 | 25.3 | 24 | 25 | 22.6 | |
Frequency coefficients | Np | 2280 | 2200 | 2160 | 2280 | 2200 | |
N1 | 1671 | 1613 | 1583 | 1671 | 1613 | ||
N3 | 1950 | 1900 | 1875 | 1950 | 1850 | ||
Nt | 2250 | 2200 | 2200 | 2300 | 2200 | ||
Elastic compliance coefficient | Se11 | 10-12m2/n | 11.8 | 12.7 | 13.2 | 11.6 | 13.2 |
Machanical quality factor | Qm | 1000 | 800 | 600 | 1200 | 2200 | |
Dielectric loss factor | Tg δ | % | 0.3 | 0.4 | 0.5 | 0.3 | 0.5 |
Density | ρ | g/cm3 | 7.5 | 7.5 | 7.5 | 7.6 | 7.5 |
Curie Temperature | Tc | °C | 320 | 320 | 320 | 310 | 310 |
Young's modulus | YE11 | <109N/m3 | 85 | 79 | 76 | 86 | 76 |
Poison Ratio | 0.3 | 0.3 | 0.3 | 0.3 | 0.33 |
4. STANDARD MECHANICAL TOLERANCES:
Outside Diameter ±0.150mm
Inside Diameter ±0.150mm
Thickness ±0.05mm
Flatness 0.002**/0.012mm MAX
Parallelism 0.007**/0.012mm MAX
Concentricity 0.2mm

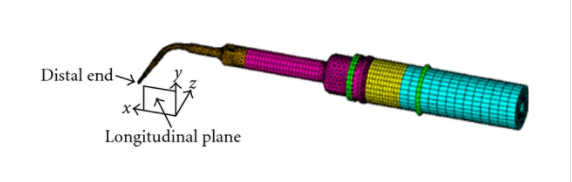

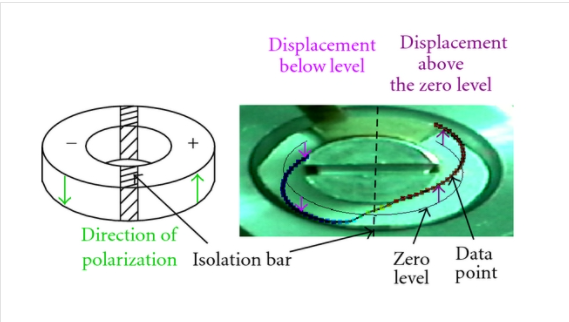

5.ultrasonic dental scaler Application:
Piezoceramic transducers for the generation of ultrasonic vibration widely used in dental scalers used in dental clinics for the removal of dental plaques.piezo ceramic elements are the perfect solution for the generation of stable and reliable ultrasonic vibration needed in piezo scalers. Dental scaler is a very common device used in dental clinics for the removal of dental plaques. An optimal ultrasonic vibration generated by the scaler is the key criteria of a good scaler. High performance piezoelectric transducers are the heart of an ultrasonic scaler to produce the needed ultrasonic vibration. With advanced characterization and manufacturing facilities, we are able to develop and mass-produce various dimensions of piezoceramic rings with high performance to fit your needs. we are also able to provide structural design and assembly services of transducer heads to exactly fit into your housing design of your dental scalers.
