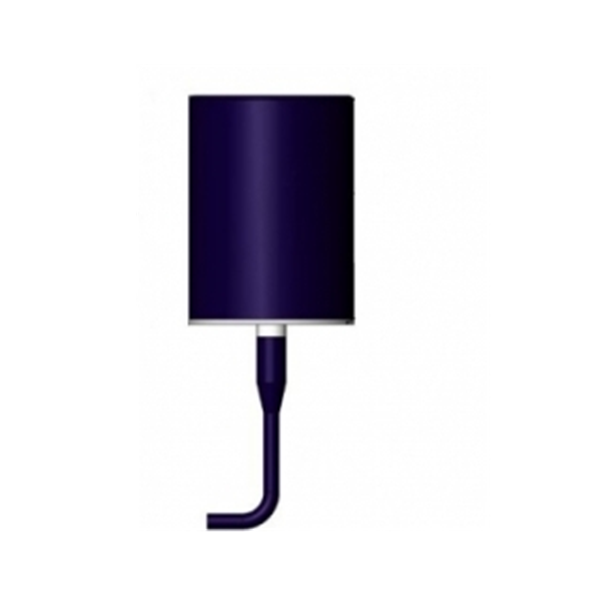

Custom 15kHz Underwater Acoustic Transducer for 500m Depth

Availability:
Quantity:
Inquire Add to Basket

  • HSWBT15

  • Piezohannas

  • HSWBT15

Custom 15kHz Underwater Acoustic Transducer for 500m Depth



Custom 15kHz Underwater Acoustic Transducer for 500m Depth



1. Product description

(1) Working temperature: -2℃～+50℃

(2) Storage temperature: -20℃～+50℃

(3) Watertight method: polyurethane

(4) Weight: 2.0kg (excluding cable)

(5) Maximum working depth: 500m

(6) Maximum working voltage: 750VRMS



2. Working characteristics

(1) Center frequency: 15kHz

(2) Operating frequency range: 10kHz～20kHz

(3) Transmit voltage response: 142dB±3dB@15kHz (re 1μPa/V@1m)

(4) Receiving sensitivity response: -190dB±3dB@15kHz (re 1 V /μPa @1m, 20m cable)

(5) Horizontal beam width 2θ-3dB: 360°

(6) Vertical beam width 2θ-3dB: 45°±3°@15kHz
