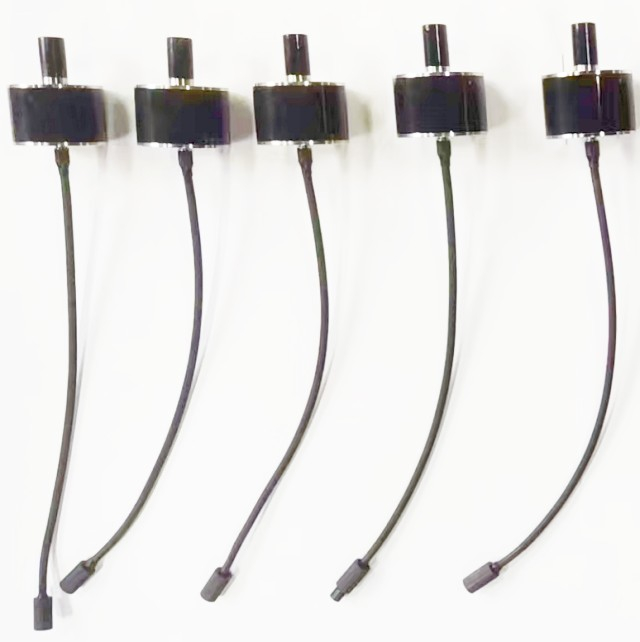

Composite Vector And Scalar Hydrophone for Underwater Acoustic
Measurement content
1. Vector channel
Working frequency band
The working frequency band of the vector channel is 40Hz-2.5kHz.
Receiving sensitivity
Measure the receiving sensitivity of each channel, of which the 1kHz should be higher than -200dB.
Directivity
The maximum dipole sensitivity asymmetry Kr≤ max3dB; orthogonality deviation ≤10°, measurement frequency point 2.5kHz.
2. Scalar channel
Working frequency band
The working frequency band of the scalar channel is 20Hz～40kHz.
Receiving sensitivity
The receiving sensitivity within the working frequency band should be higher than -205dB, and the fluctuation within the octave should not exceed 2dB.
Directivity
The horizontal directivity fluctuation should not exceed 2dB, and the -3dB vertical directivity opening angle is greater than 180°, and the measurement frequency point is 10dB.
Hydrostatic pressure test
After the hydrophone is subjected to 2MPa/1h, OMPa/1h, 2MPa/1h.OMPa/1h hydrostatic pressure test, the junction resistance of each channel should be greater than 100Ω.
Measurement data
Vector channel

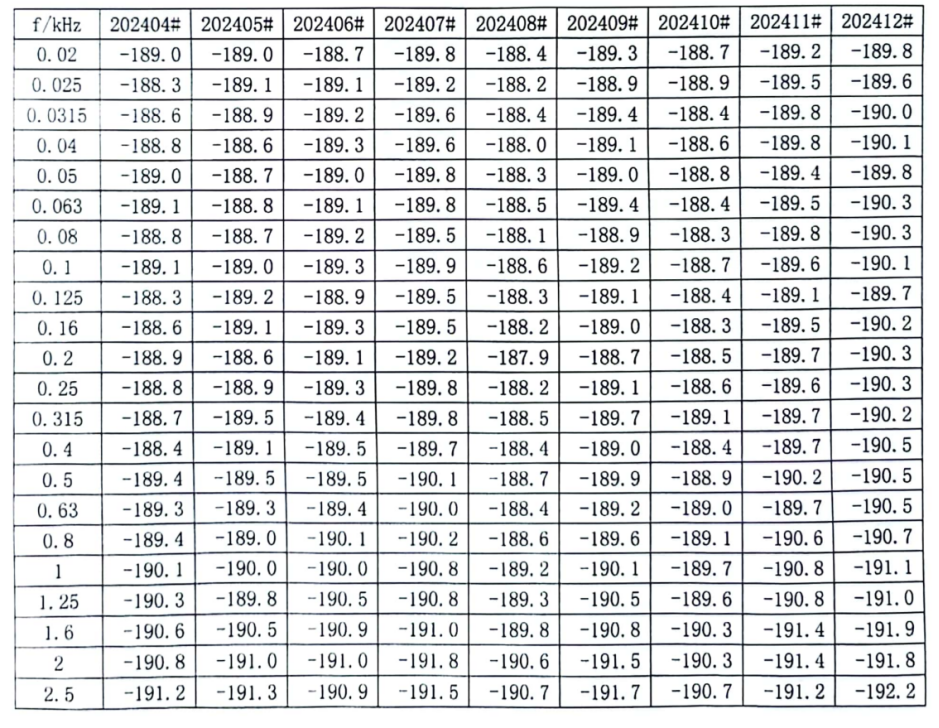

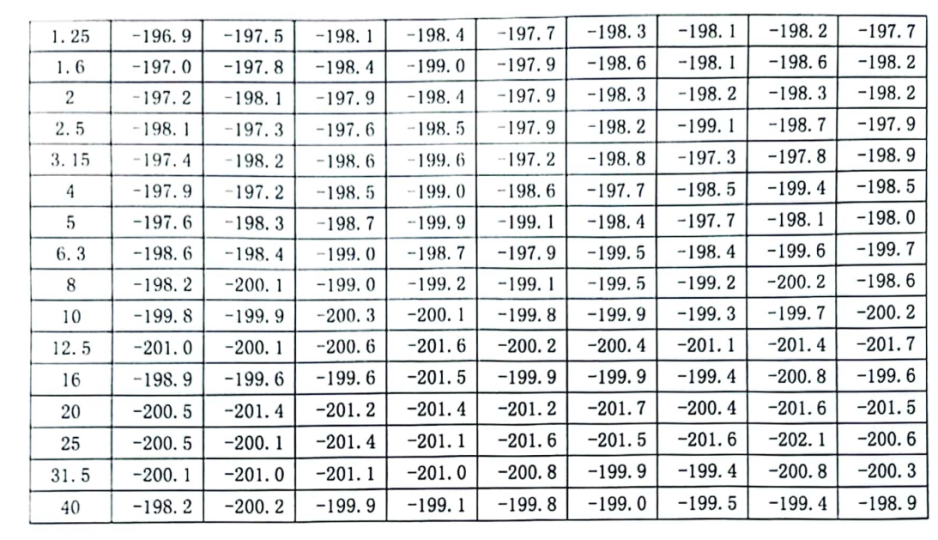

1. Receiving sensitivity:

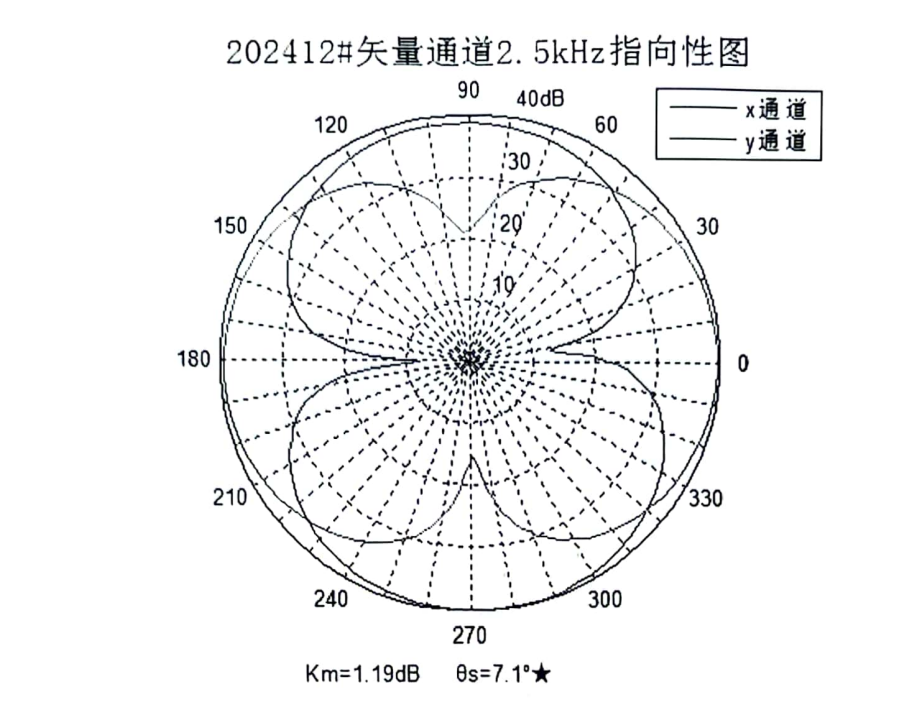

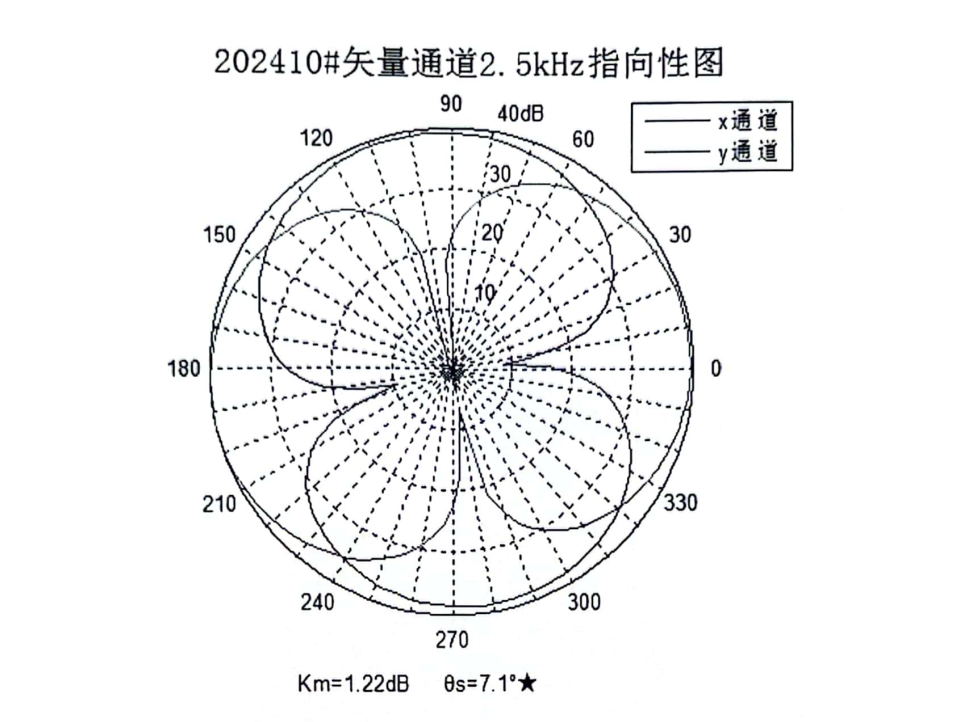

2.Directivity
Scalar channel

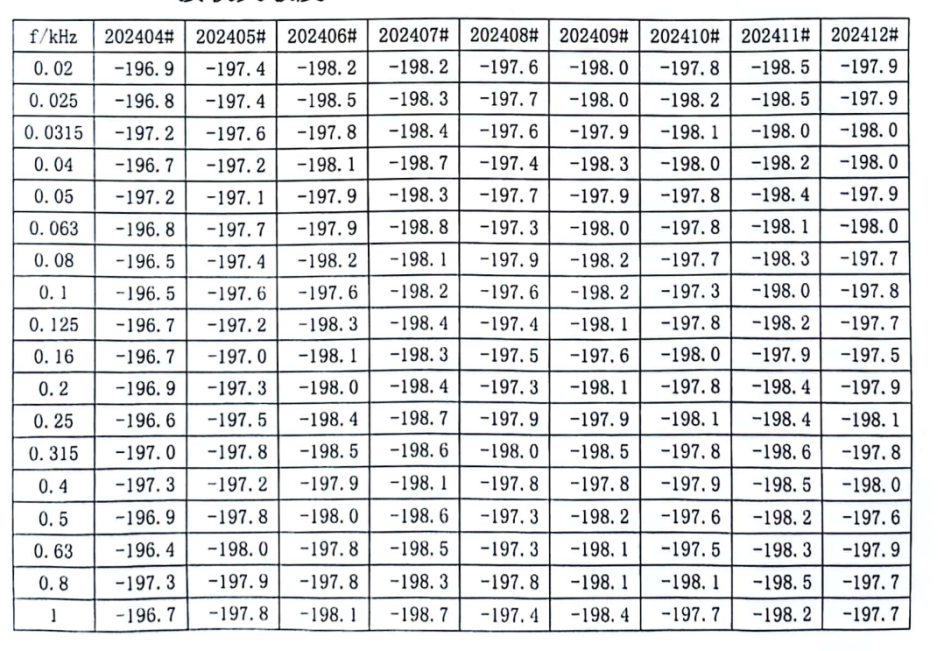

1. Receiving sensitivity

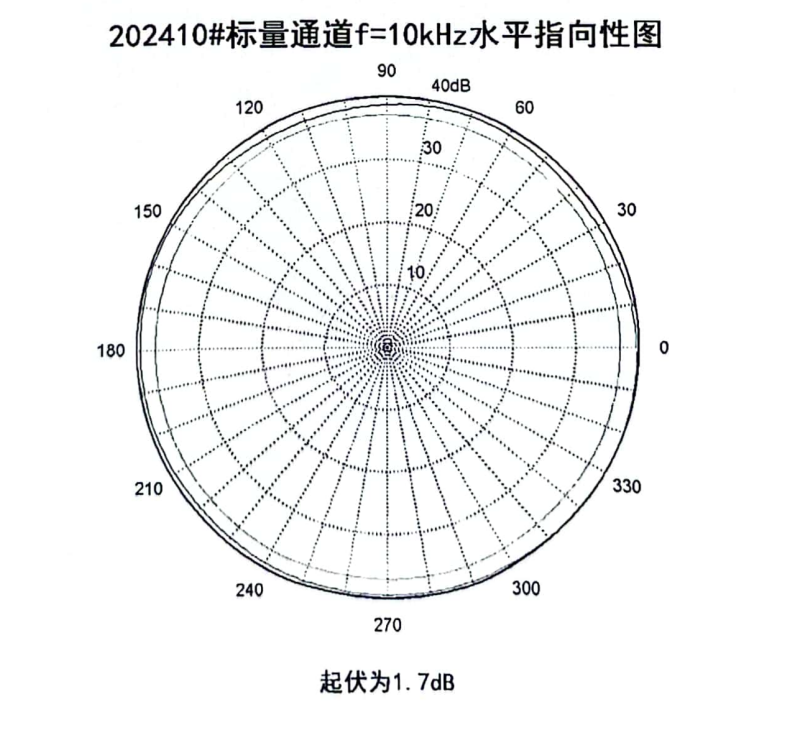

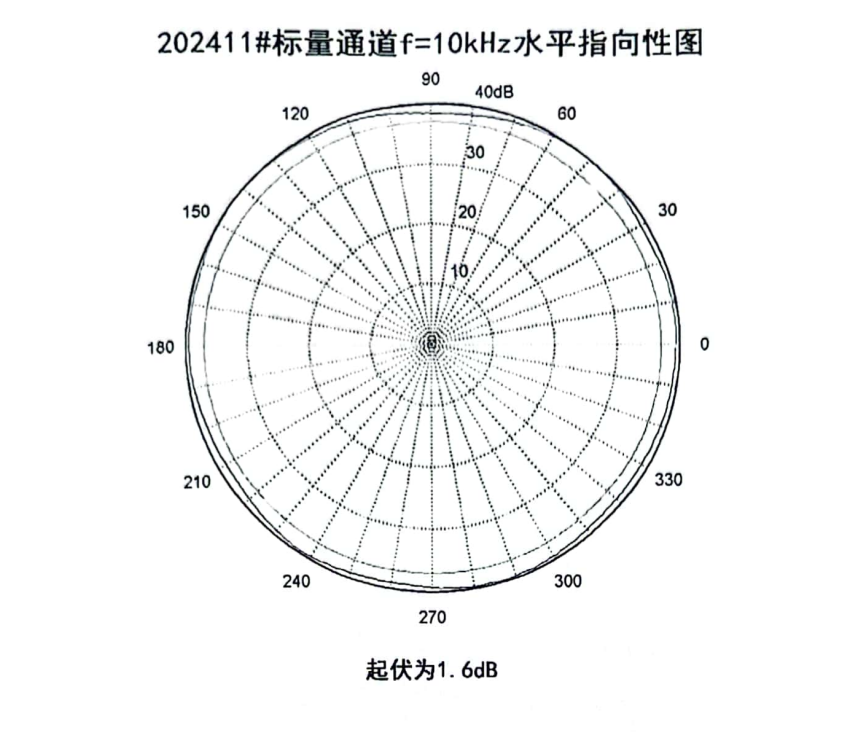

2.horizontal directivity

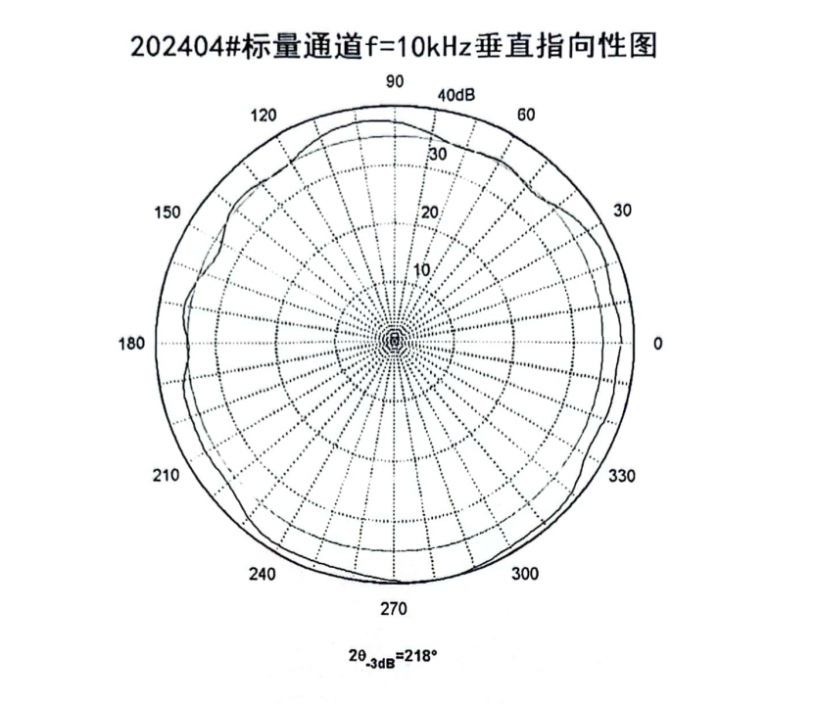

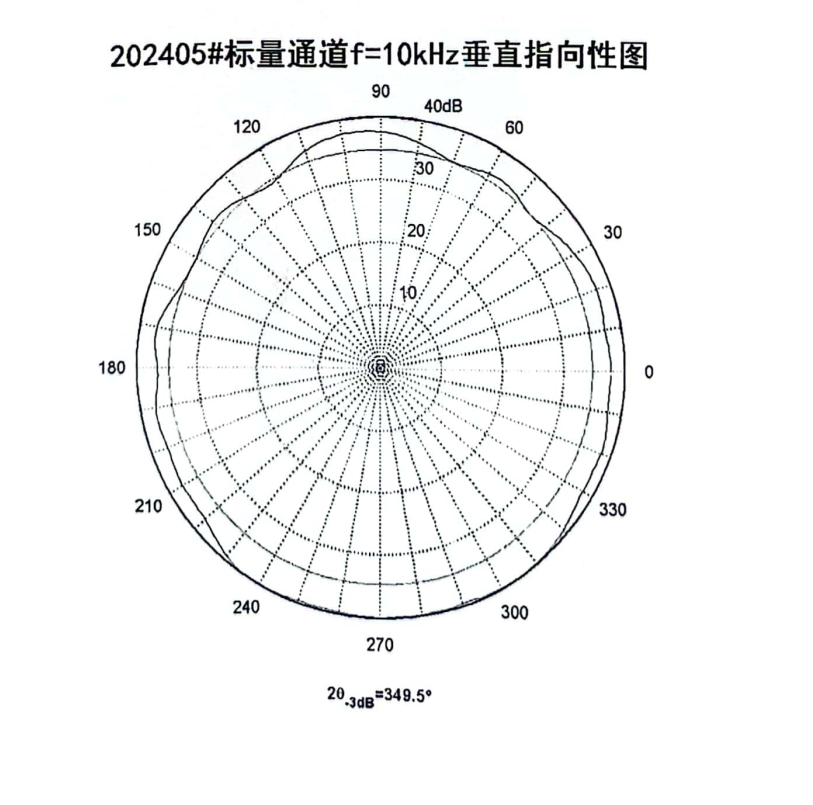

1. vertical directivity
Hydrostatic pressure test
After the hydrophone was subjected to 2MPa/1h, OMPa/1h, 2MPa/1h, and OMPa/1h hydrostatic pressure tests, the insulation resistance of each channel was 200M.
Measurement results
The performance of the hydrophone meets the index requirements.
