YH-T300
Piezohannas
YH-T300
Acoustic Cylinderical Hydrophone for Acoustic Modems
Specification:
Type | Parameters |
Model | YH-T300 |
resonant frequency | 30kHz |
working frequency range | 20kHz-40kHz |
horizontal directivity | omnidirectional ±2dB |
vertical directivity | Hemisphere type |
Impedance at the resonance point | 1500Ω |
Input maximum electric power | 200W pulse regime |
Working depth | 500M |
basic materials | aluminium alloy PVC |
Cable model | Diameter 5mm,Polyurethane sheath |
Cable length | Standard 3 meters, extra lengths need to be ordered separately |
storage temperature | -40 - +80 ºC |
operating temperature | -5 - +70 ºC |

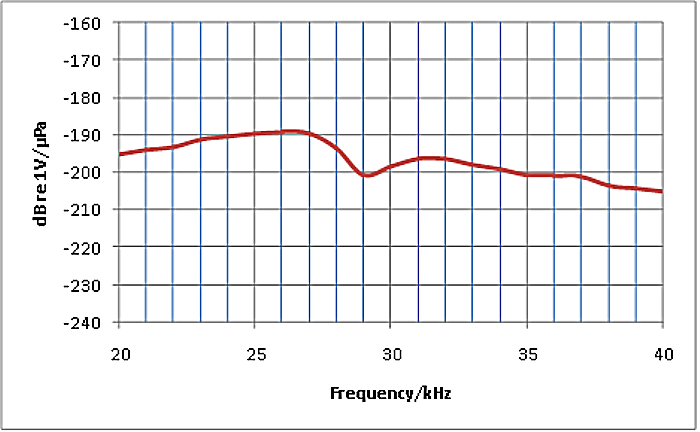

Receiving performance:

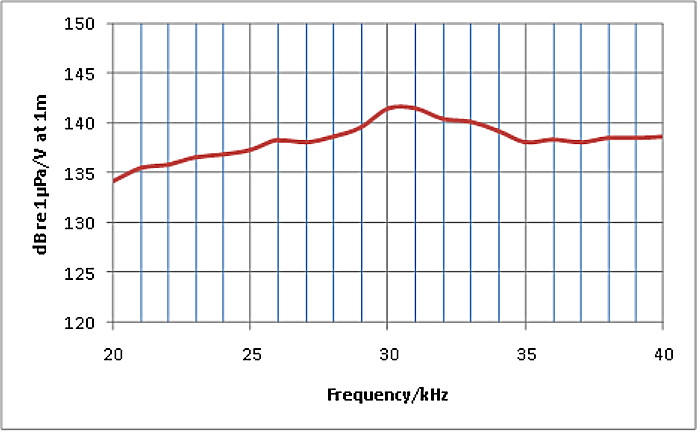

Emitting performance:

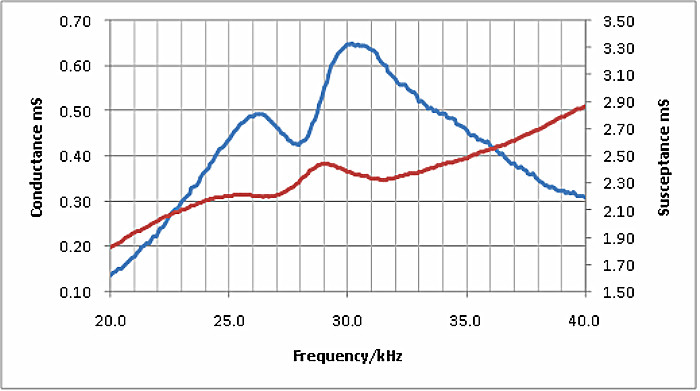

Impedance underwater

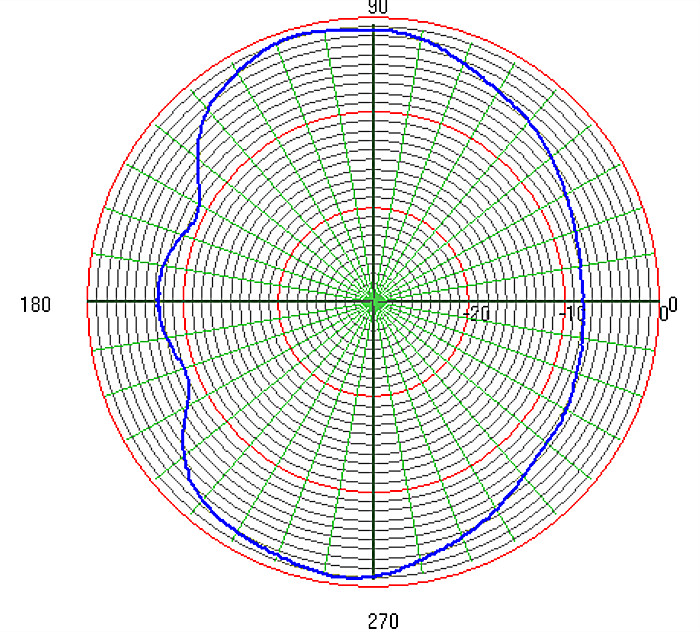

Vertical directivity at 30kHz
Acoustic Cylinderical Hydrophone for Acoustic Modems
Specification:
Type | Parameters |
Model | YH-T300 |
resonant frequency | 30kHz |
working frequency range | 20kHz-40kHz |
horizontal directivity | omnidirectional ±2dB |
vertical directivity | Hemisphere type |
Impedance at the resonance point | 1500Ω |
Input maximum electric power | 200W pulse regime |
Working depth | 500M |
basic materials | aluminium alloy PVC |
Cable model | Diameter 5mm,Polyurethane sheath |
Cable length | Standard 3 meters, extra lengths need to be ordered separately |
storage temperature | -40 - +80 ºC |
operating temperature | -5 - +70 ºC |
Receiving performance:
Emitting performance:
Impedance underwater
Vertical directivity at 30kHz
