64KHz buy ultrasonic distance sensor transducer for liquidometer

64KHz |8° |0.3～5m| used for Ultrasonic level gauge,Monitoring,Crashproof,
Security

Availability:

Quantity:



Inquire Add to Basket

Model:
PHA-64-05F
Brand:
Piezohannas
Code:
PHA-64-05F

Product Description

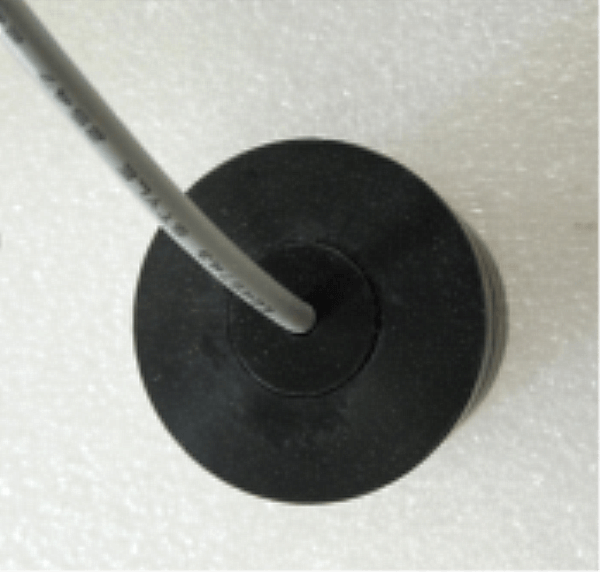

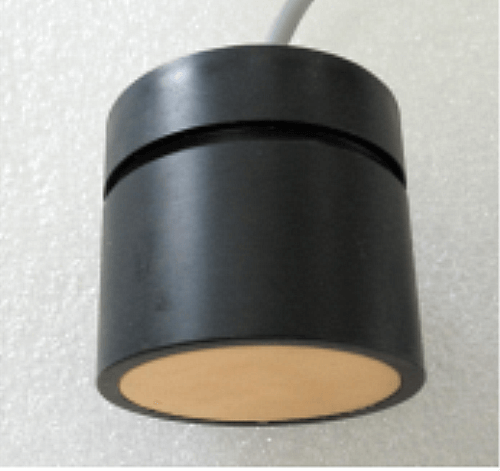

64KHz Buy Ultrasonic Distance Sensor Transducer for Liquidometer

Technical parameters：

Items	Technical Parameters		Image
Name	64KHz ultrasonic transducer F type
Model	PHA-64-05F
Frequency	64KHz±5%
Detection Distance	0.3～5m
Minimum Parallel lmpedance	550Ω±20％
Capacitance	1600pF±20％ @1KHz
Sensitivity	Driving Voltage：900Vpp，Distance:0.6m， Echo Amplitude：200mV
Operating Voltage	Peak Voltage＜1500VPP
Operating Temperature	-40～+80℃
Pressure	≤3Kilos or 0.3MPa
Angle	(Beamwidth) Half-power Beam Width@-3dB:8°±2， Sharp Angle:19°±4
Housing Material	POM
Usage	Ultrasonic level gauge,Monitoring,Crashproof, Security
Installation Dimension	Check product structure drawing below
Protection Level	IP68
Weight	115g±5％（ Length：2m）
Wiring Instructions	integrated type：Red+，White-，Black: shielded wire；

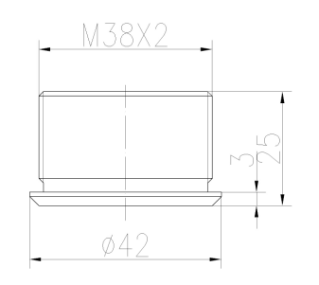

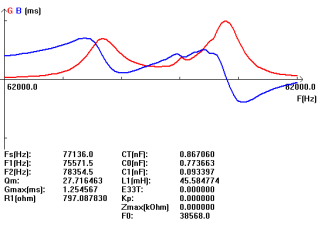

Admittance Curve		Product Structure Diagram

Test Circuit Schematic of Transducer:

20GT7)ETXN3}I3PI2@BY

buy ultrasonic distance sensor 64KHz distance measuring transducer sensor ultrasonic transducer for liquidometer 64KHz buy ultrasonic distance sensor ultrasonic distance measurement sensor buy ultrasonic transducer for liquidometer 64KHz ultrasonic sensor for liquidometer ultrasonic transducer liquid level meter 64KHz ultrasonic transducer for liquidometer ultrasonic distance measuring sensor transducer
