Piezohannas
PHA-64-05F
64KHz Ultrasonic Transducer for Ultrasonic Level Measurement
Technical parameters：
Items | Technical Parameters | Image | |

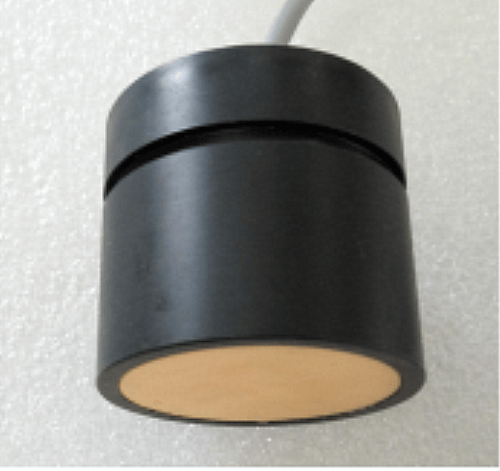

Name | 64KHz ultrasonic transducer F type |
| |
Model | PHA-64-05F | ||
Frequency | 64KHz±5% | ||
Detection Distance | 0.3～5m | ||
Minimum Parallel lmpedance | 550Ω±20％ | ||
1600pF±20％ @1KHz | |||
Sensitivity | Driving Voltage：900Vpp，Distance:0.6m， Echo Amplitude：200mV | ||
-40～+80℃ | |||
≤3Kilos or 0.3MPa | |||
| (Beamwidth) Half-power Beam Width@-3dB:8°±2， Sharp Angle:19°±4 | ||
Housing Material | POM | ||
Usage | Ultrasonic level gauge,Monitoring,Crashproof, Security | ||
Check product structure drawing below | |||
Protection Level | IP68 | ||
Weight | 115g±5％（ Length：2m） | ||
Wiring Instructions | integrated type：Red+，White-，Black: shielded wire；
| ||
Admittance Curve | Product Structure Diagram | ||
| | ||
Test Circuit Schematic of Transducer:
Ultrasonic Level Measurement Application
Continuous level measurement in liquids and solids with ultrasonic level sensors
Ultrasonic level measurement with Prosonic sensors provides continuous, non-contact and maintenance-free level measurement of fluids, pastes, sludges and powdery to coarse bulk materials. The measurement is unaffected by dielectric constant, density or humidity and also unaffected by build-up due to the self-cleaning effect of the sensors. Check out the broad range of Prosonic devices for ultrasonic level measurement and click on the button below.
