PHW-500-05G
Piezohannas
PHW-500-05G

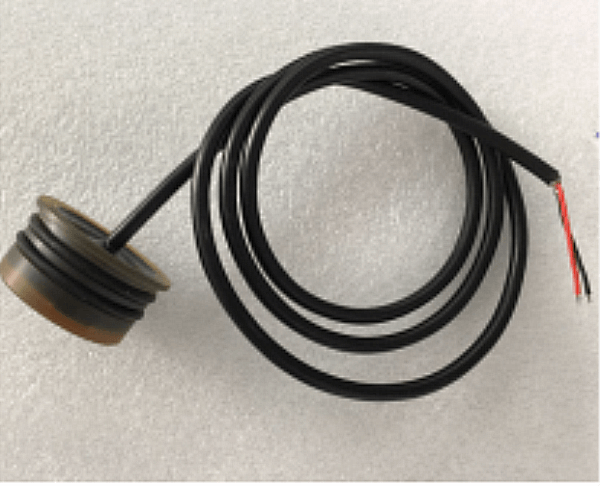

500KHz Ultrasonic Depth Transducer for Liquid Level Sensor
Technical parameters:
Items | Technical Parameters | Image | |
Name | 500KHz underwater depth transducer |
| |
Model | PHW-500-05G | ||
Frequency | 500KHz±5% | ||
Detection Distance | 0.3～30m | ||
Minimum Parallel lmpedance | 85Ω±20％ | ||
1900pF±20％ @1KHz | |||
Sensitivity | Driving Voltage：24 V、Distance:0.3m、 Echo Amplitude:1200 mV | ||
-40～+80℃ | |||
≤10Kilos or 1MPa | |||
(Beamwidth)Half-power Beam Width@-3dB:5°±10%， Sharp Angle:11.7°±10% | |||
Housing Material | PI | ||
Usage | Ultrasonic flowmeter,submarine range finder,liquid level sensor | ||
Checking product structure diagram below | |||
Protection Level | IP68 | ||
Weight | 200g±5％（Length：2m） | ||
Wiring Instructions | Red:transducer+，Black: transducer-,（ temperature sensor is optional ） | ||

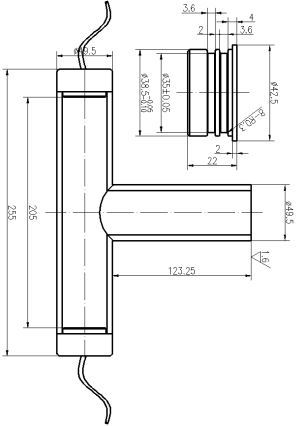

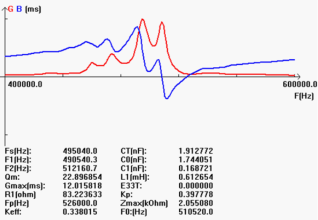

Admittance Curve | Product Structure Diagram | ||
|
| ||
Block diagram of ultrasonic transducer :
Schematic Diagram of Temperature Sensor (model: MF58_502F3470):
Integrated type Cable instruction:
1.Wiring instruction of transducer: interface (3pin, 2.54mm terminal)
Red: transducer +
White: transducer -
Black: shielding
2.Cable Instruction of Temperature Sensor: interface (3pin, 2.0mm terminal)
Red and black are temperature sensor wiring
Split type: standard 10m cable, with each additional 50m of cable, the signal attenuation is 6dB
Three-core wiring instructions:
Red: Transducer +
Blue: temperature sensor +
Black: Public-
Four-core wiring instructions:
Red: Transducer +
Yellow: Transducer-
Blue, black: temperature sensor
